Solid Brass Hidden Barrel Hinges for Woodworking

📋 Specifications

• Primary Material: Solid Copper / Brass Alloy

• Hinge Diameter Options: 8 mm, 10 mm, 12 mm, 14 mm, or 16 mm

• Opening Angle: 0° – 180° Full Concealed Opening

• Operation: Smooth, Silent Precision Movement

• Finish: Polished Golden Brass

• Mounting Style: Concealed / Embedded Mortise Cylinder Fit

• Certifications: CE

• Model Number: 460074

• High-Concerned Chemical: None

🔧 Key Features

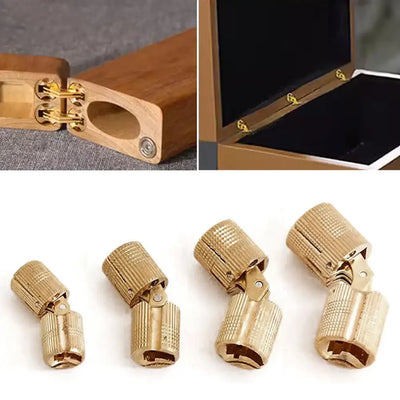

• Fully Concealed "Invisible" Effect: Installs completely inside mortise holes bored into wooden panels, rendering the hinge entirely invisible when doors or lids are closed.

• Solid Brass Construction: Crafted from high-density copper alloy to offer superior corrosion resistance, long-term durability, and a clean golden aesthetic.

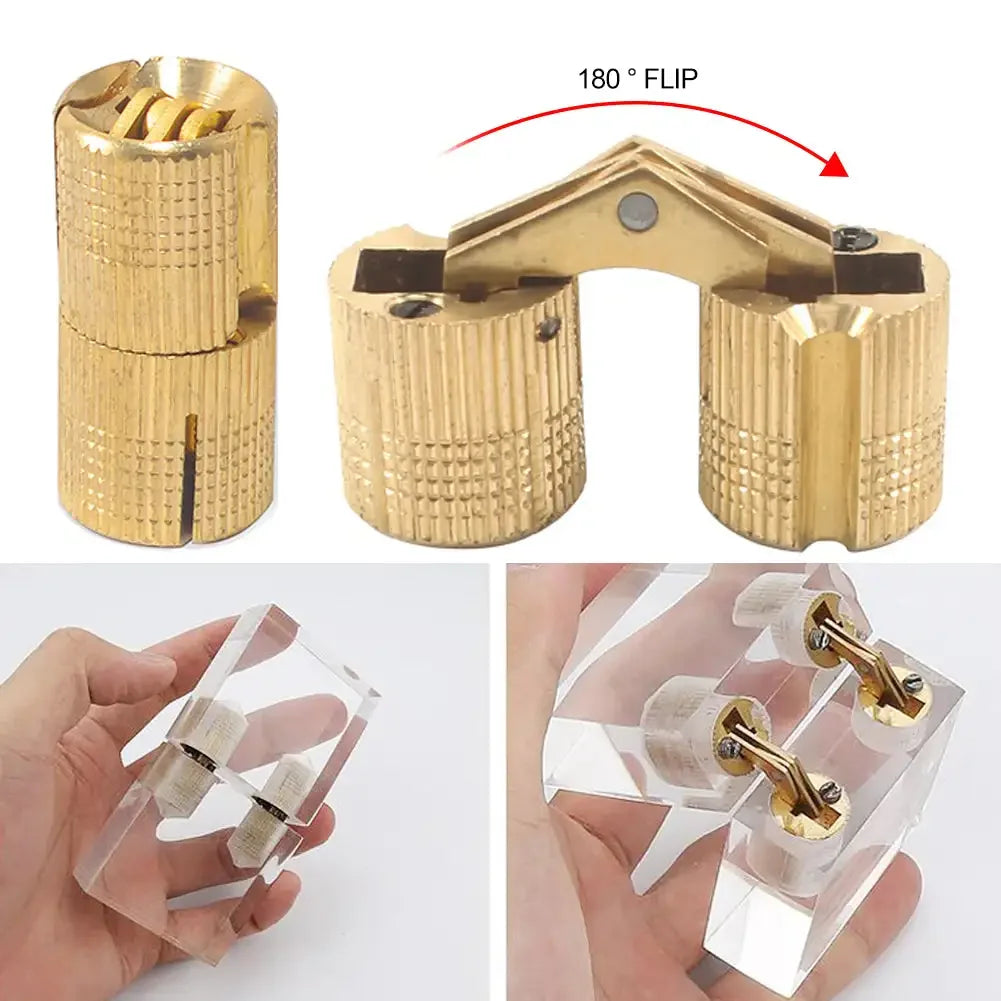

• 180-Degree Smooth Motion: Engineered for silent, friction-free movement, allowing box lids and cabinet doors to open flat from 0° to 180°.

• Precision Metric Sizing: Available in 5 standard cylinder diameters (8 mm through 16 mm) to fit various wood stock thicknesses and load-bearing requirements.

• Clean Architectural Aesthetic: Ideal for high-end cabinetry and fine woodworking projects where exposed metal hardware would disrupt clean sightlines.

🏠 Ideal Applications

• Fine Woodworking Projects, Jewelry Boxes, & Decorative Wooden Chests

• Concealed Folding Table Leaves, Countertop Extensions, & Flip-Top Desks

• Custom Cabinetry Doors, Pass-Through Panels, & Hidden Storage Lids

📦 Package Includes

• 1 × Solid Brass Hidden Barrel Hinge (Selected Diameter: 8, 10, 12, 14, or 16 mm)

⚠️ Important Usage Notes



1. Use a sharp, high-precision Forstner or brad-point drill bit matching the exact barrel diameter (e.g., 8 mm, 10 mm) to bore clean, perpendicular mortise holes.

2. For heavy lids or doors, install multiple hinges along the joint line and reinforce with brass mounting screws into the integrated expanding barrel slots.
