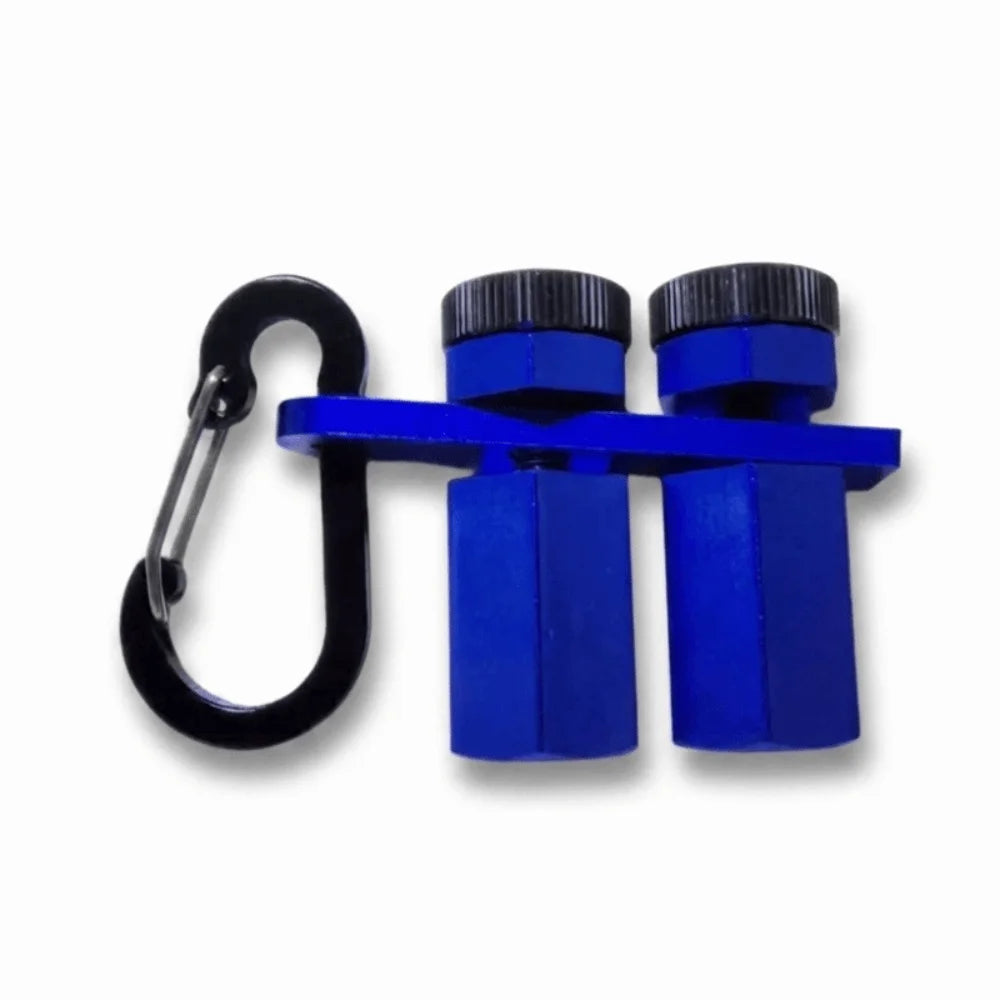

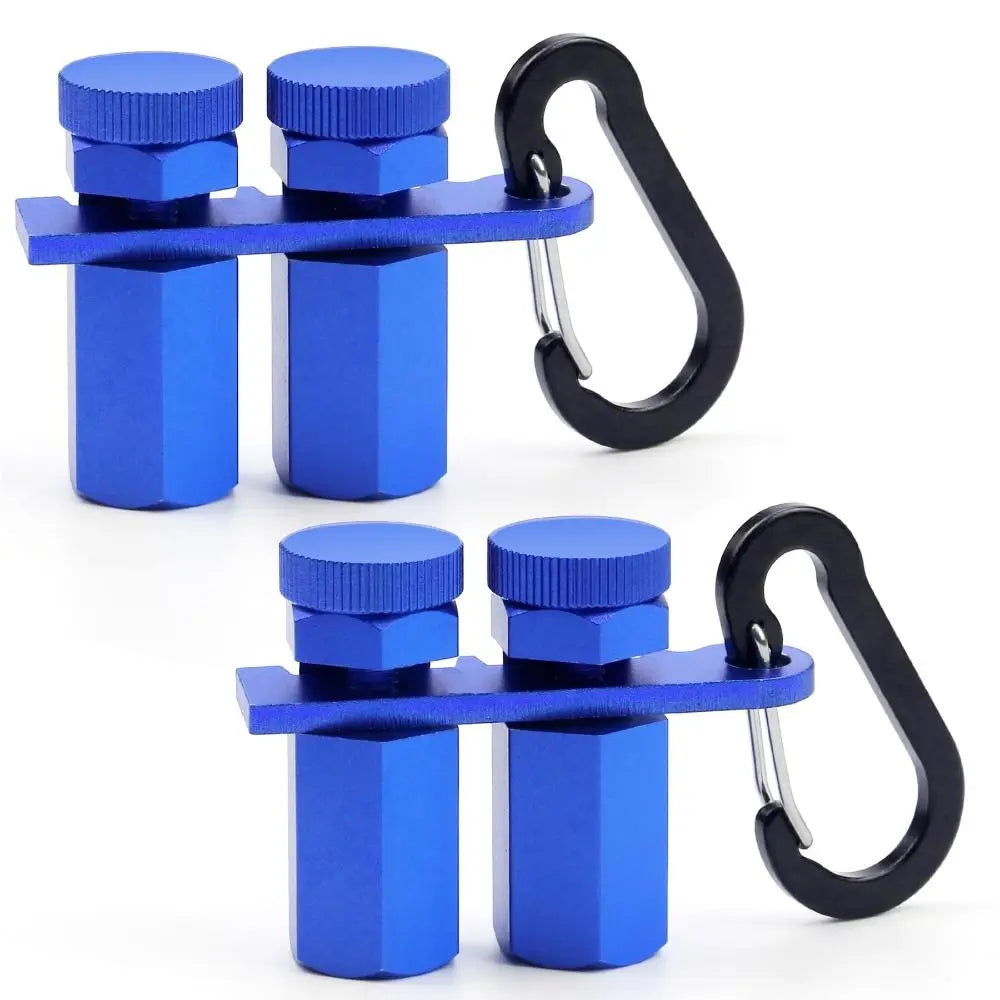

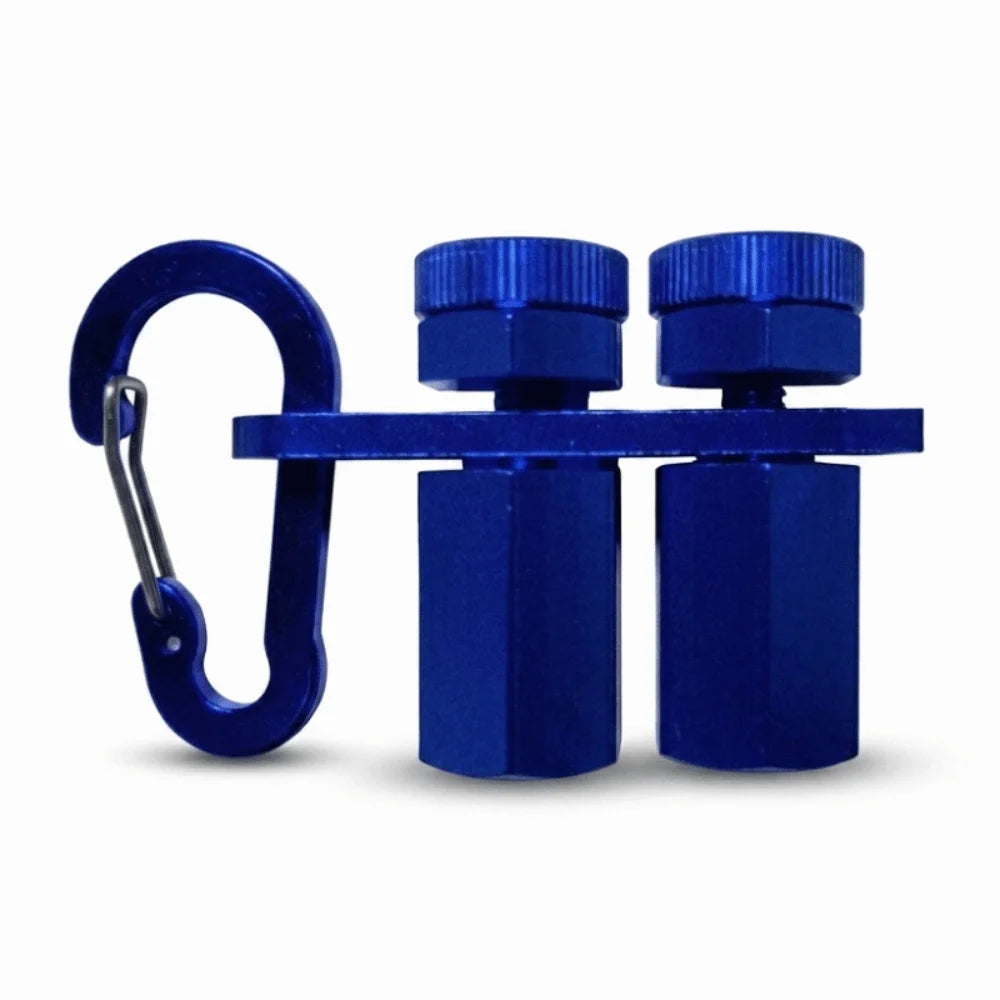

Precision Hexagonal Stair Gauges with Storage Holder

📋 Specifications

• Primary Material: Anodized CNC Machined Aluminum Alloy

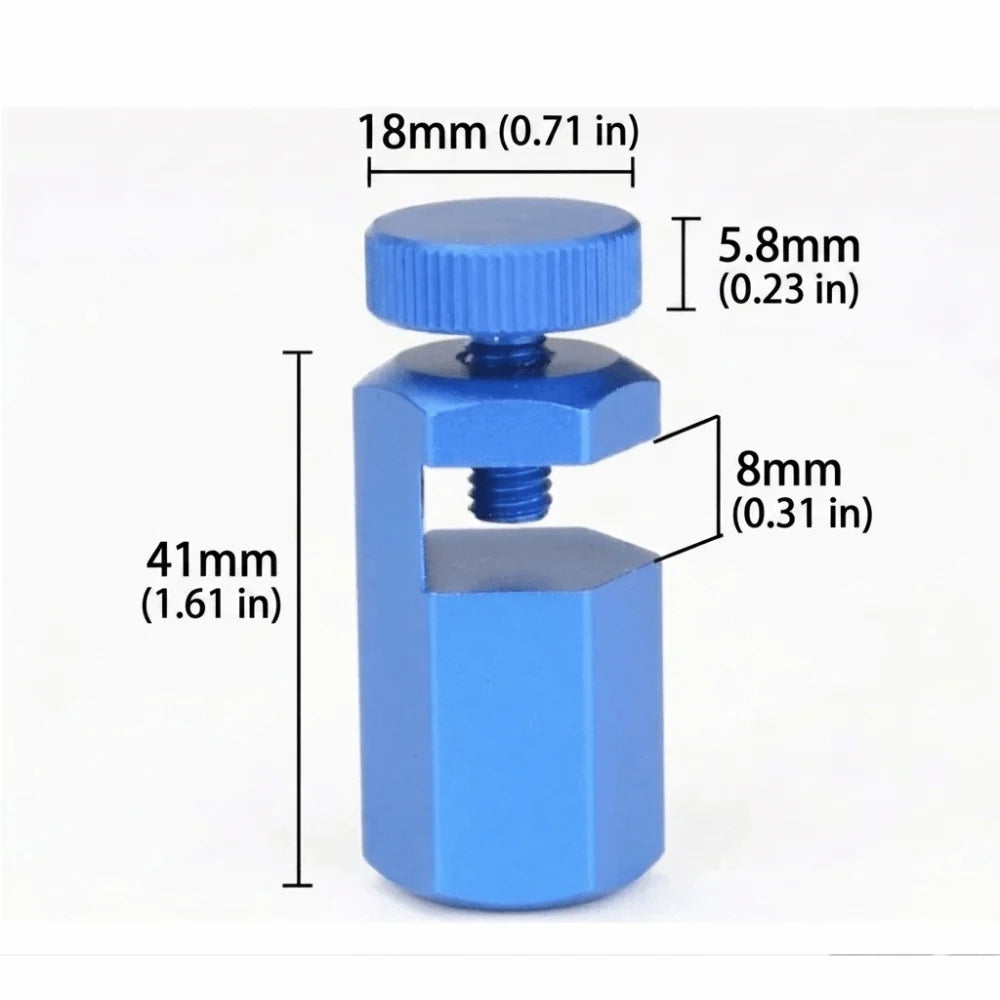

• Product Dimensions: 1.8 cm × 4.1 cm (~0.71" × 1.61")

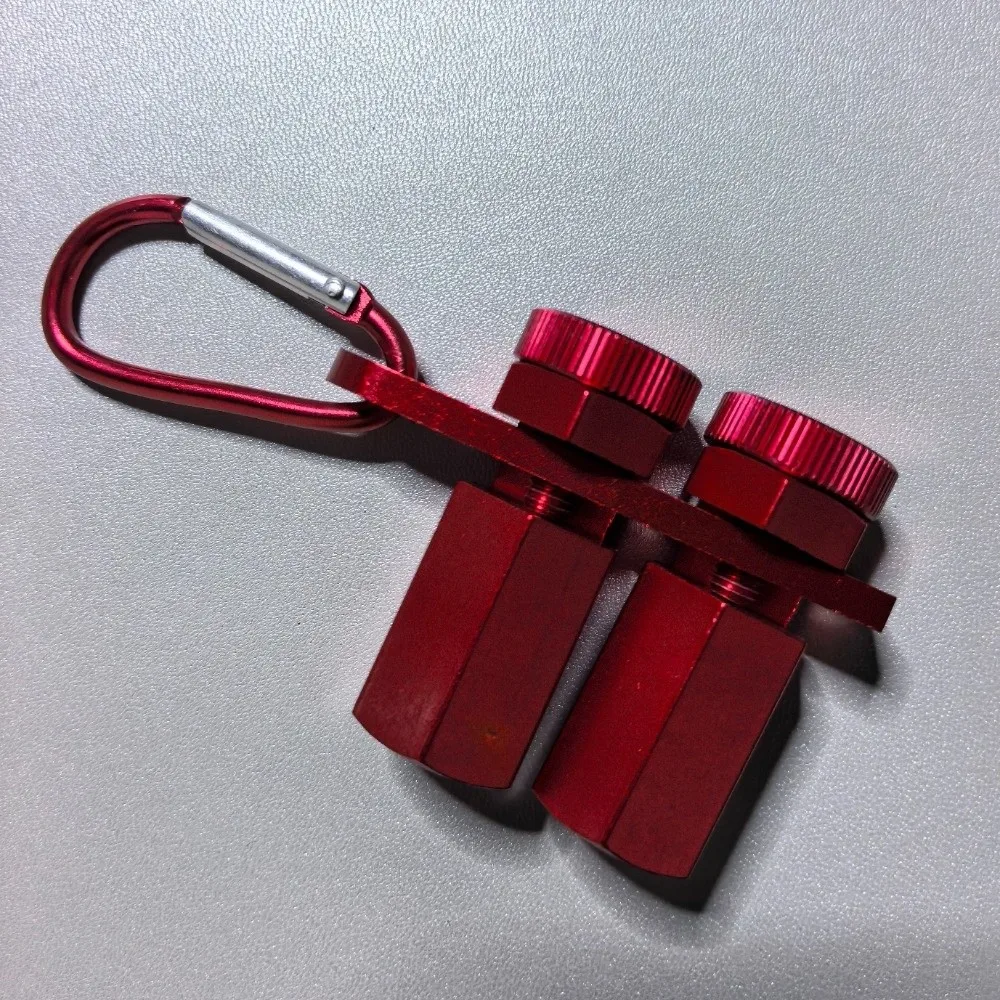

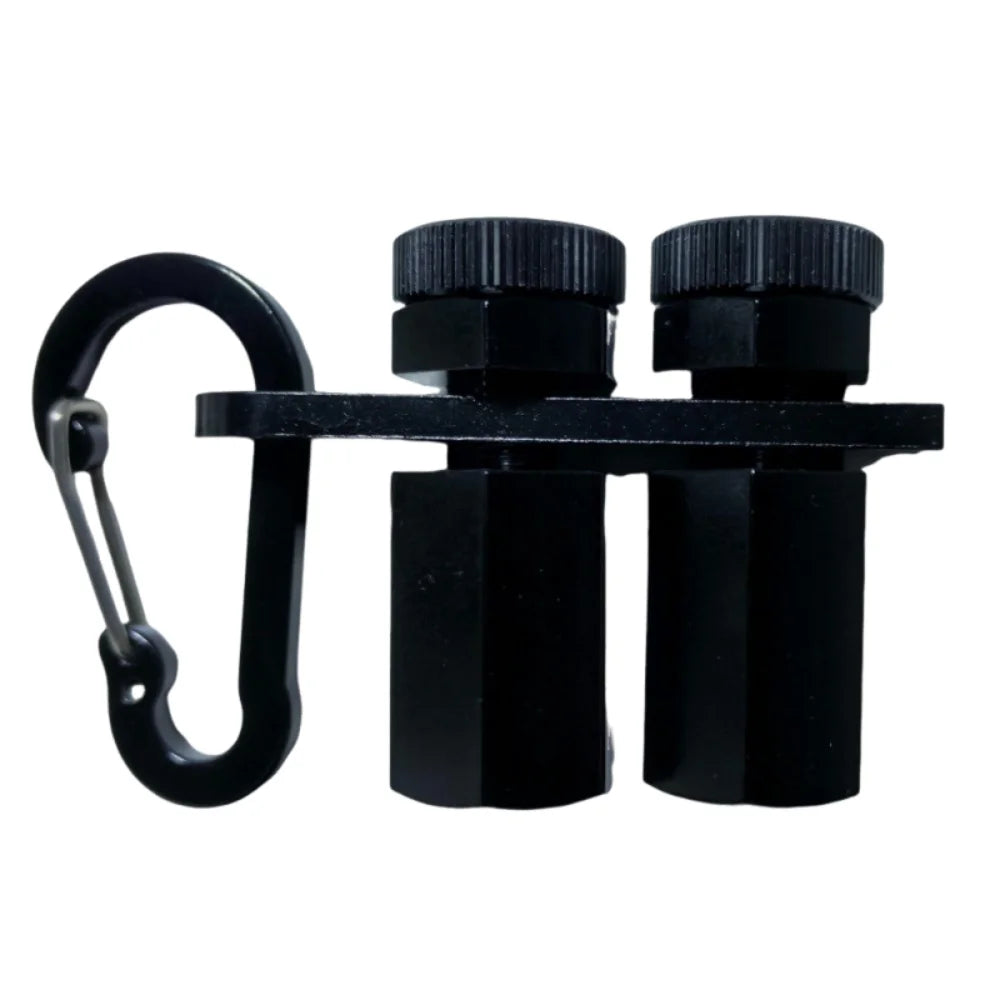

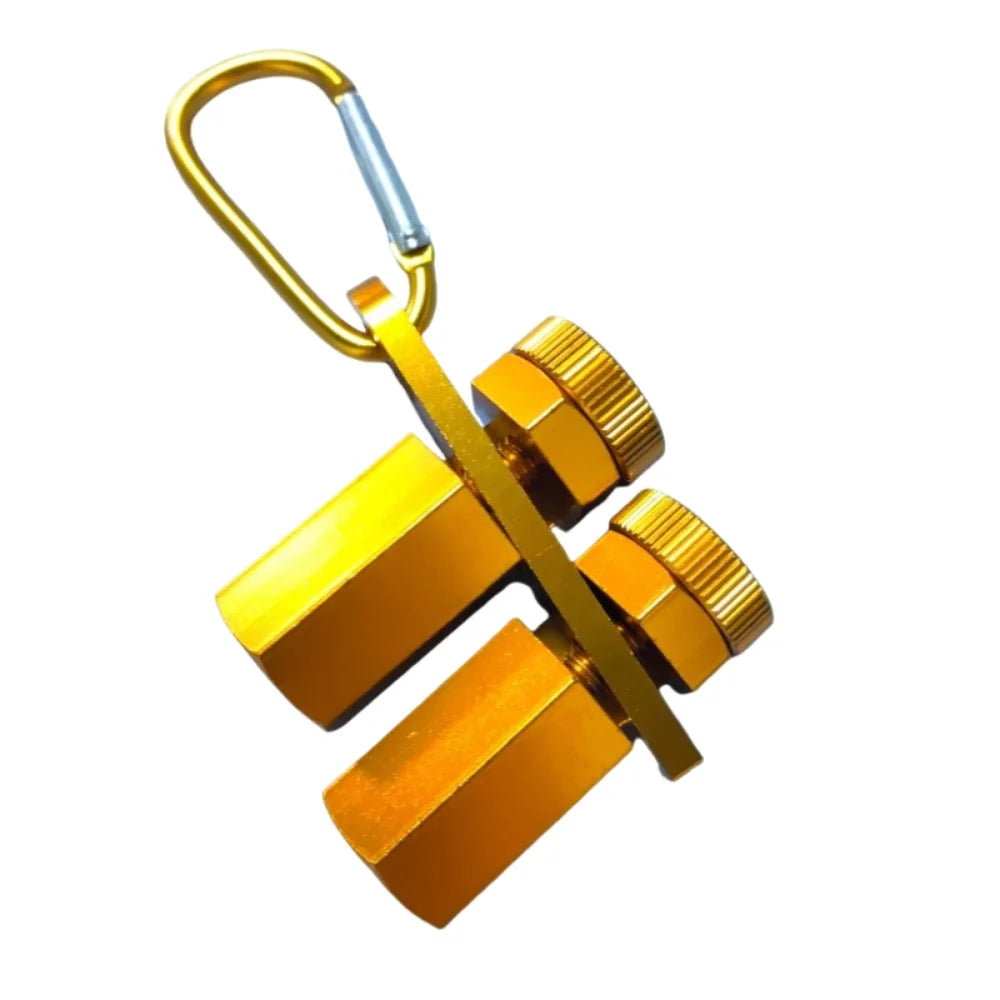

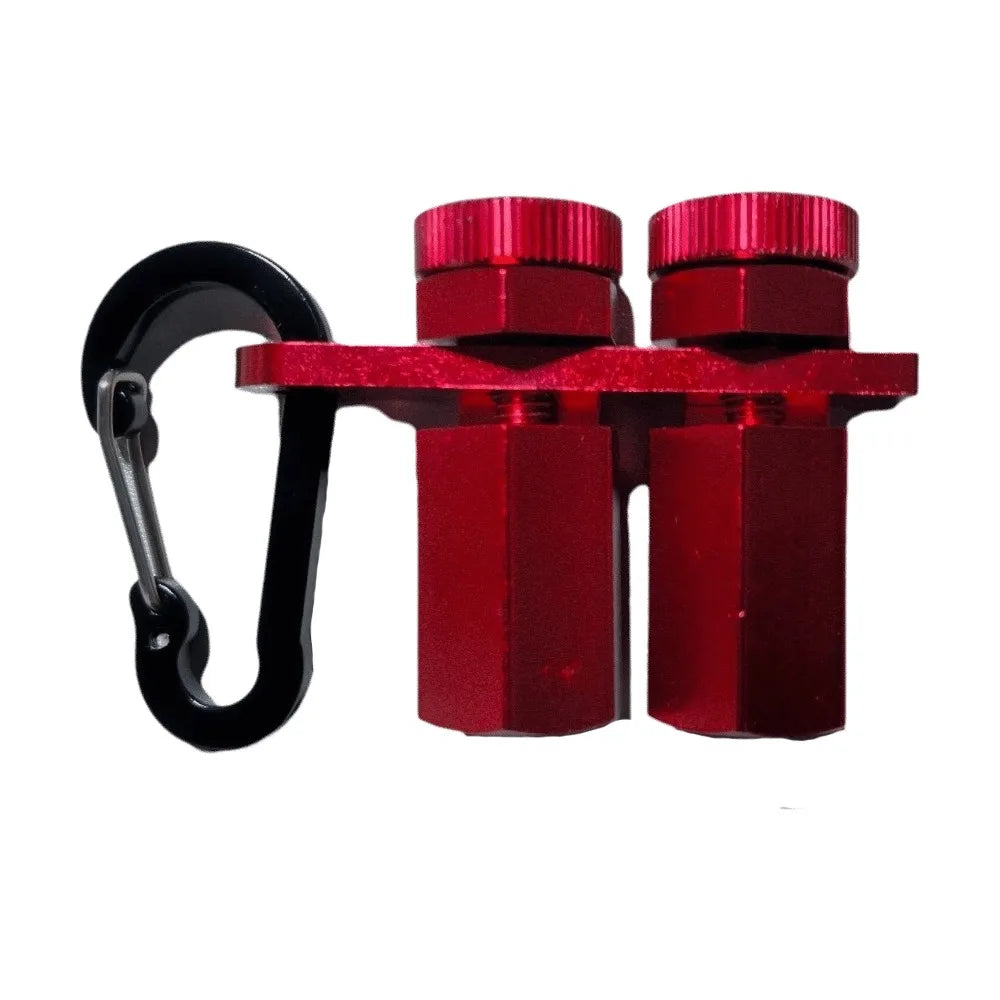

• Color Options: Industrial Blue, Matte Black, Metallic Gold, Crimson Red

• Clamping Mechanism: Extra-Large Ergonomic Knurled Thumbscrew

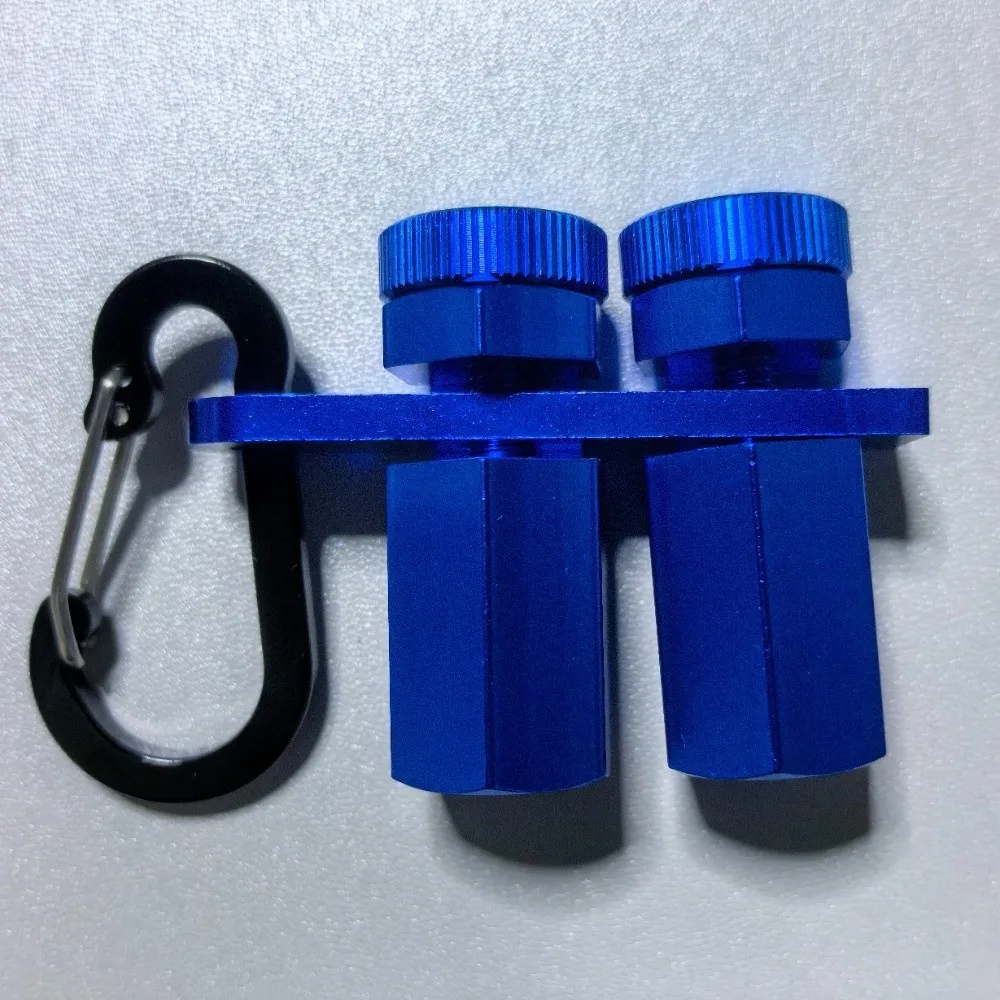

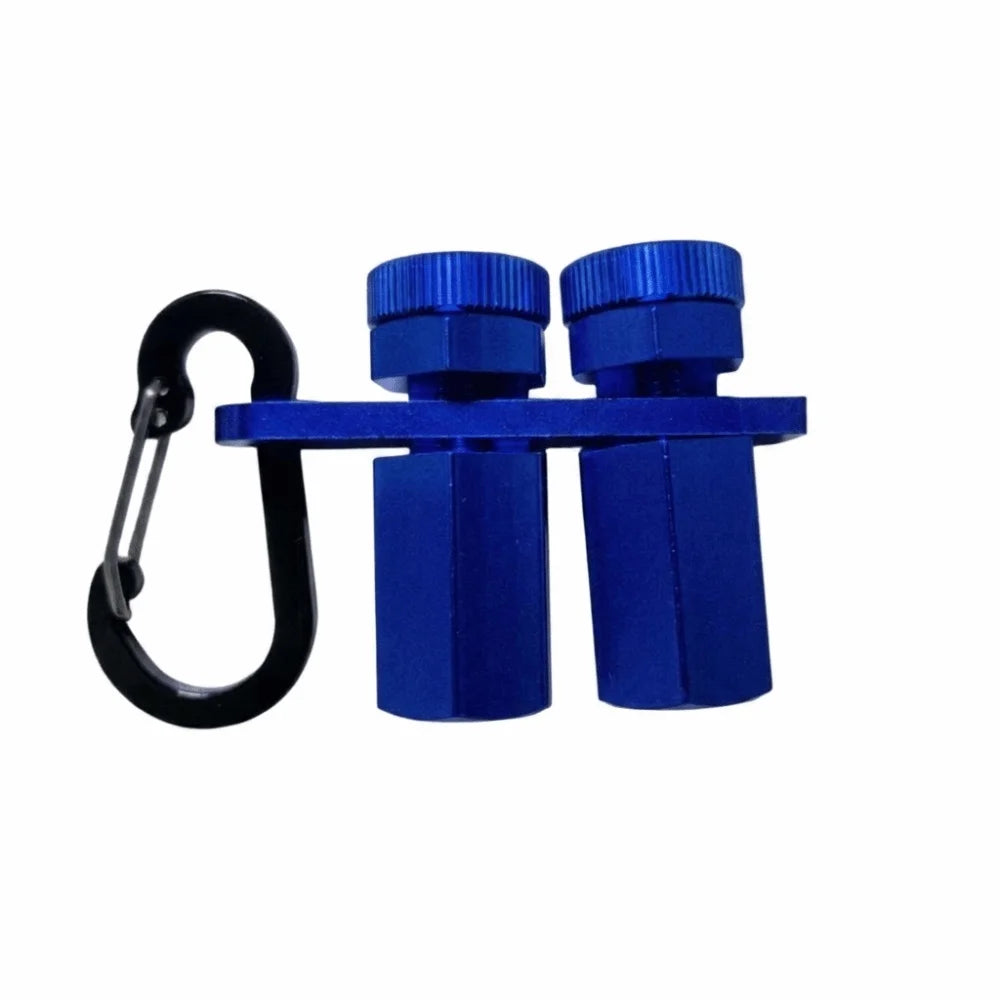

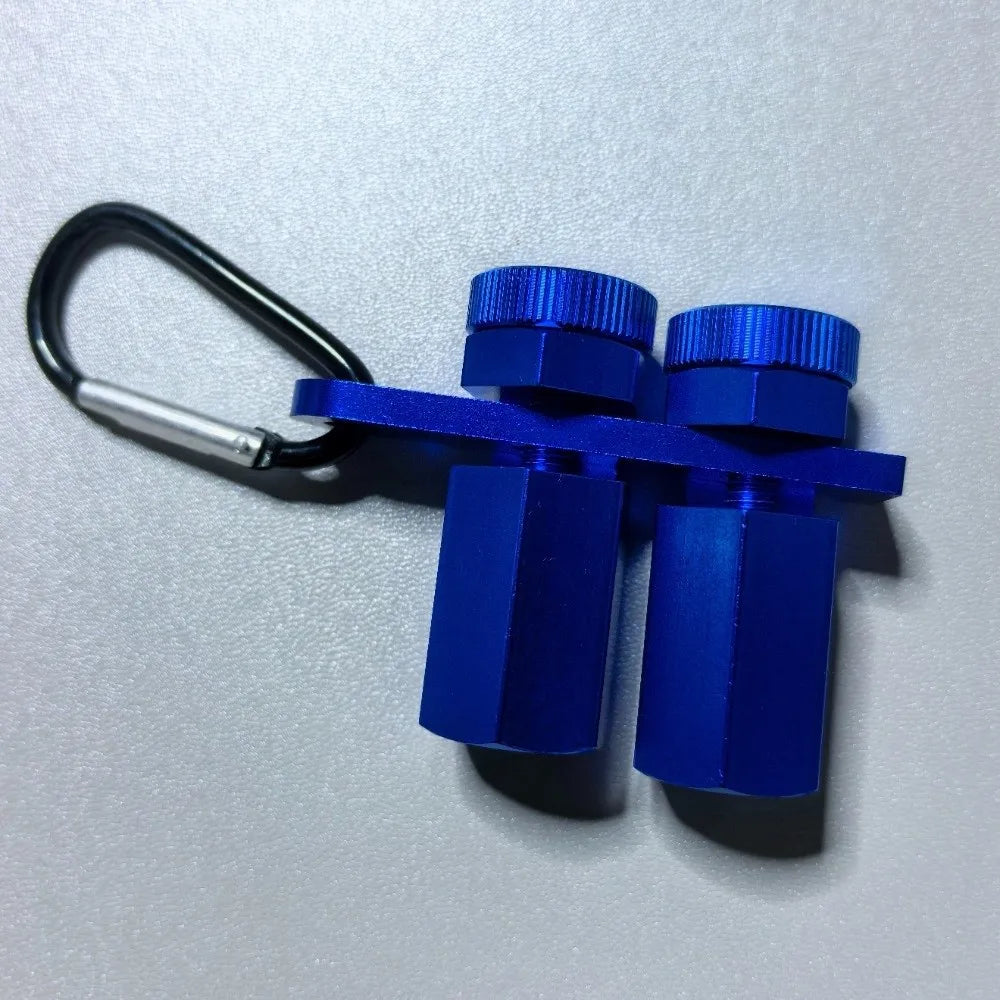

• Storage Feature: Integrated Belt Hook / Pegboard Hanging Slot

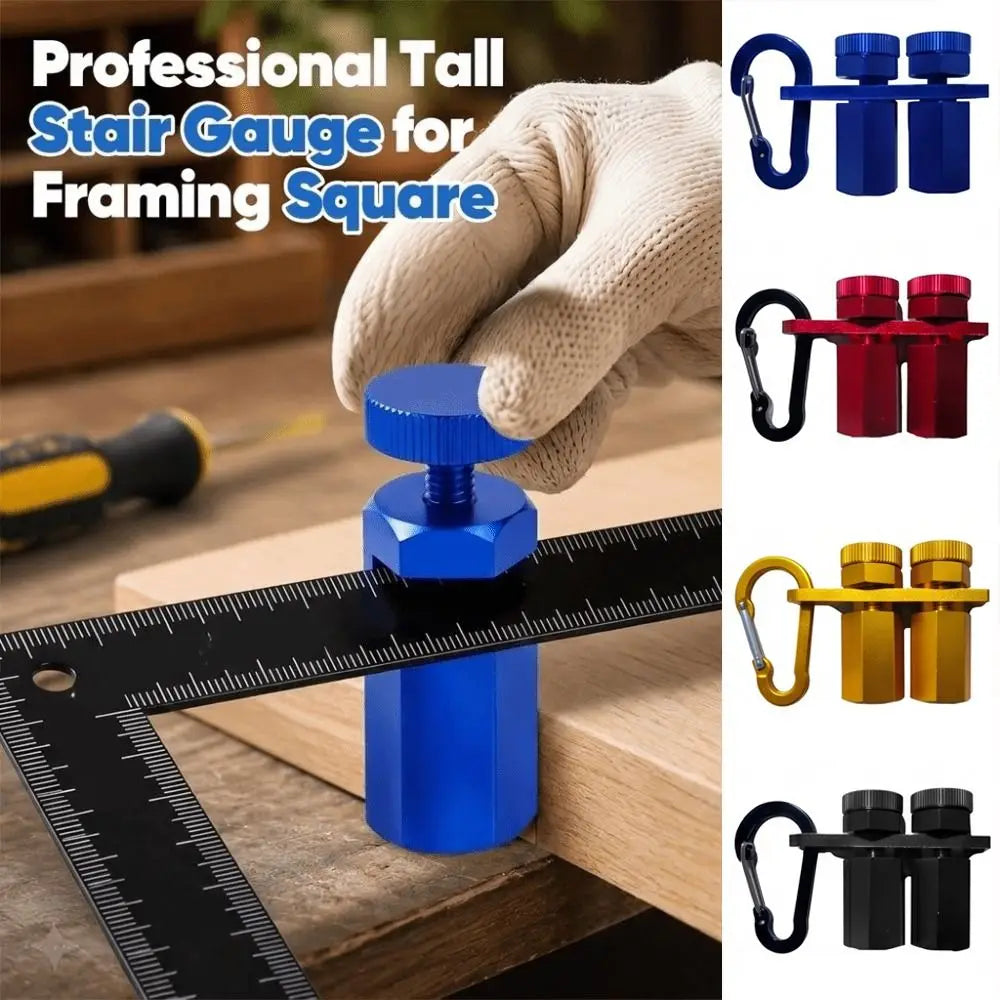

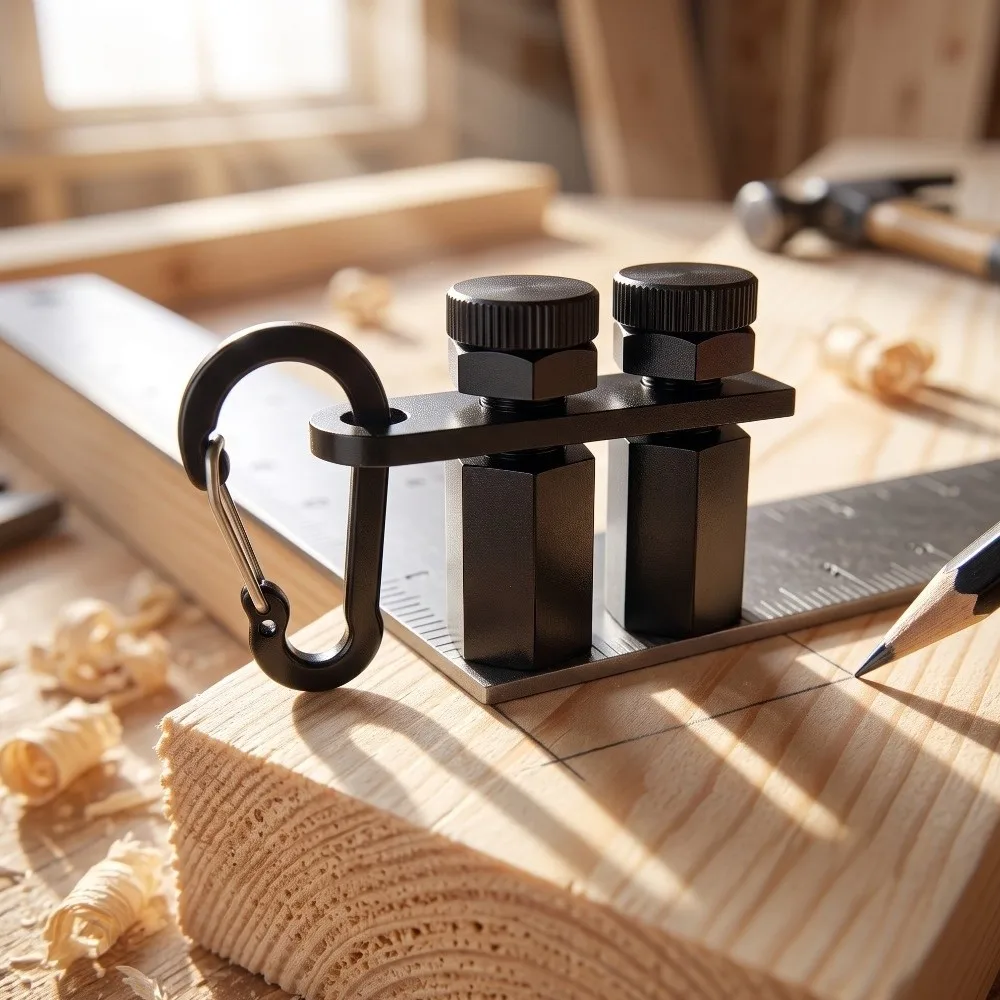

• Application Scope: Framing Square Attachment Jig / Stair Layout Guide

• Origin: Mainland ChinaHigh-Concerned Chemical: None

•

🔧 Key Features

• High-Precision Hexagonal Geometry: Hex-cut edges rest flush against framing squares and speed squares to deliver exact, repeatable angle stops for stair stringers and rafter cuts.

• Anodized Aluminum Construction: Lightweight, durable CNC machined aluminum resists rust, corrosion, and jobsite drops while preserving sharp edge registration.

• Extra-Large Non-Slip Thumbscrew: Provides maximum hand leverage for quick, rock-solid clamping onto squares without marring or slipping during repetitive marking.

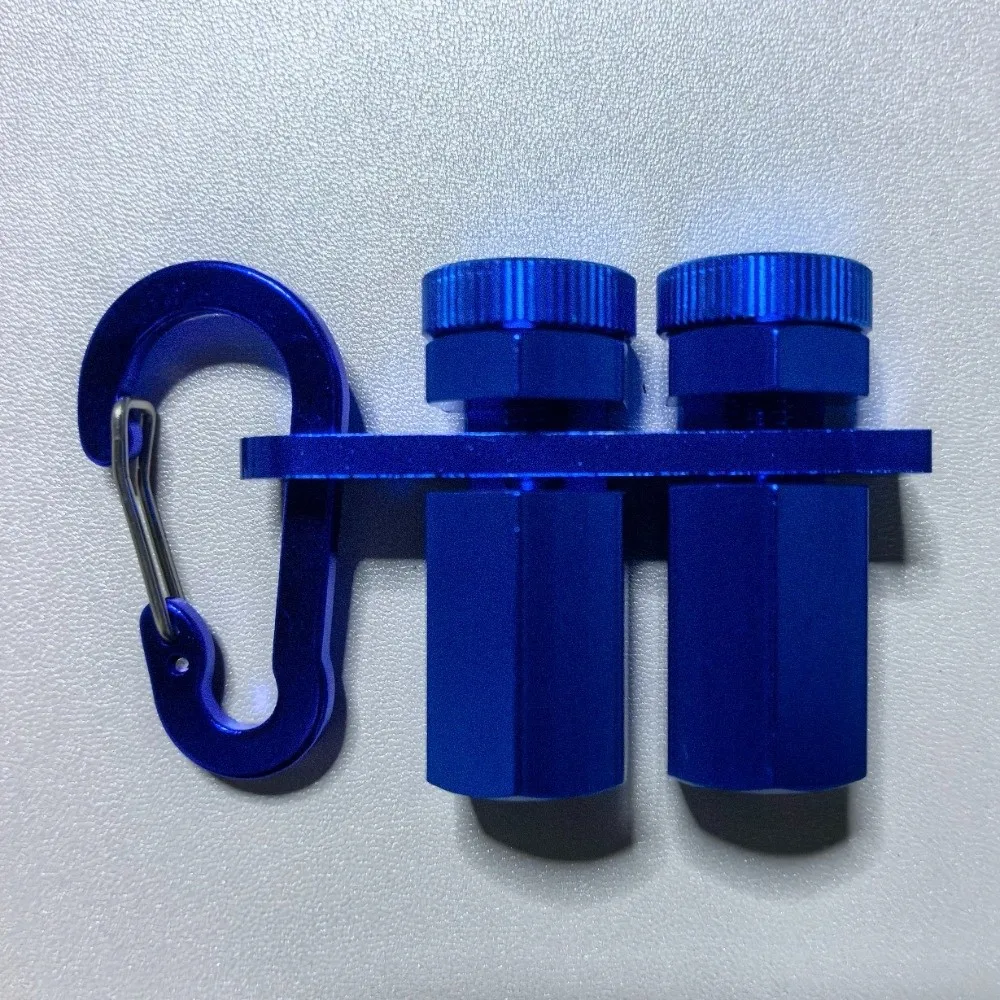

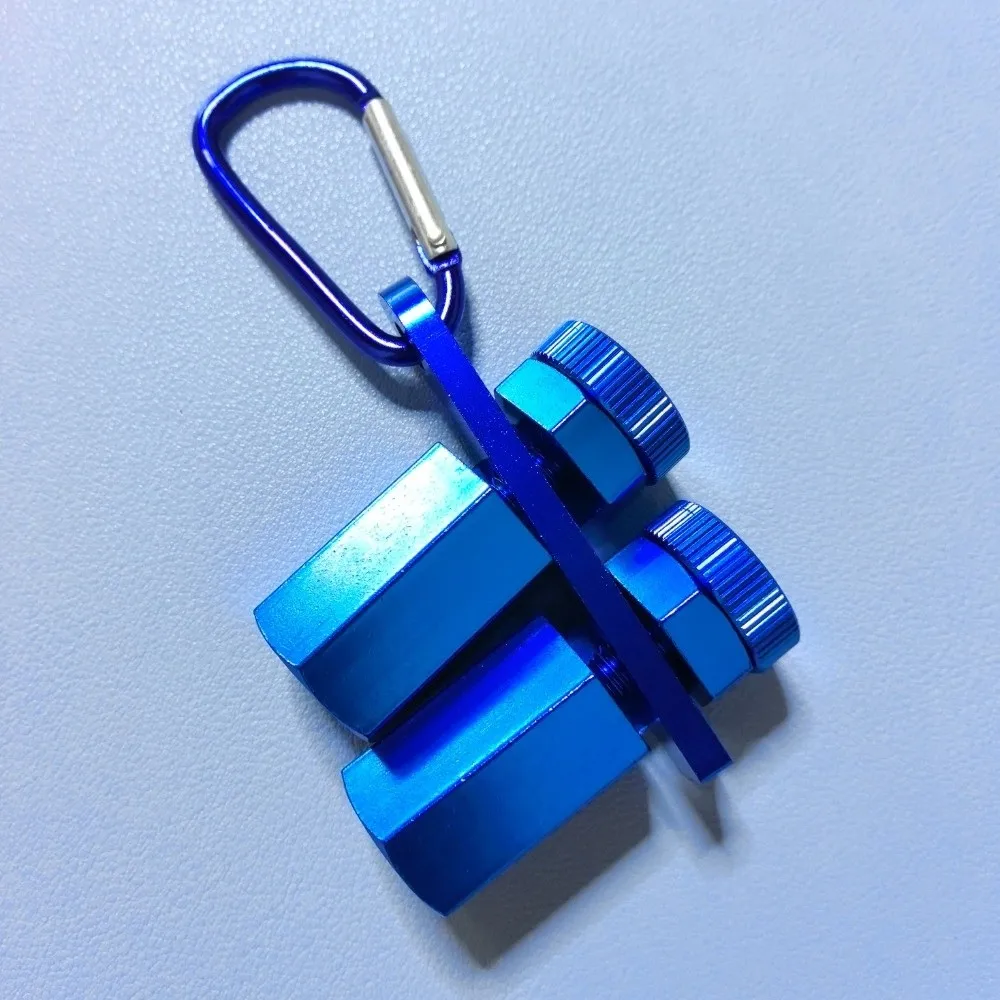

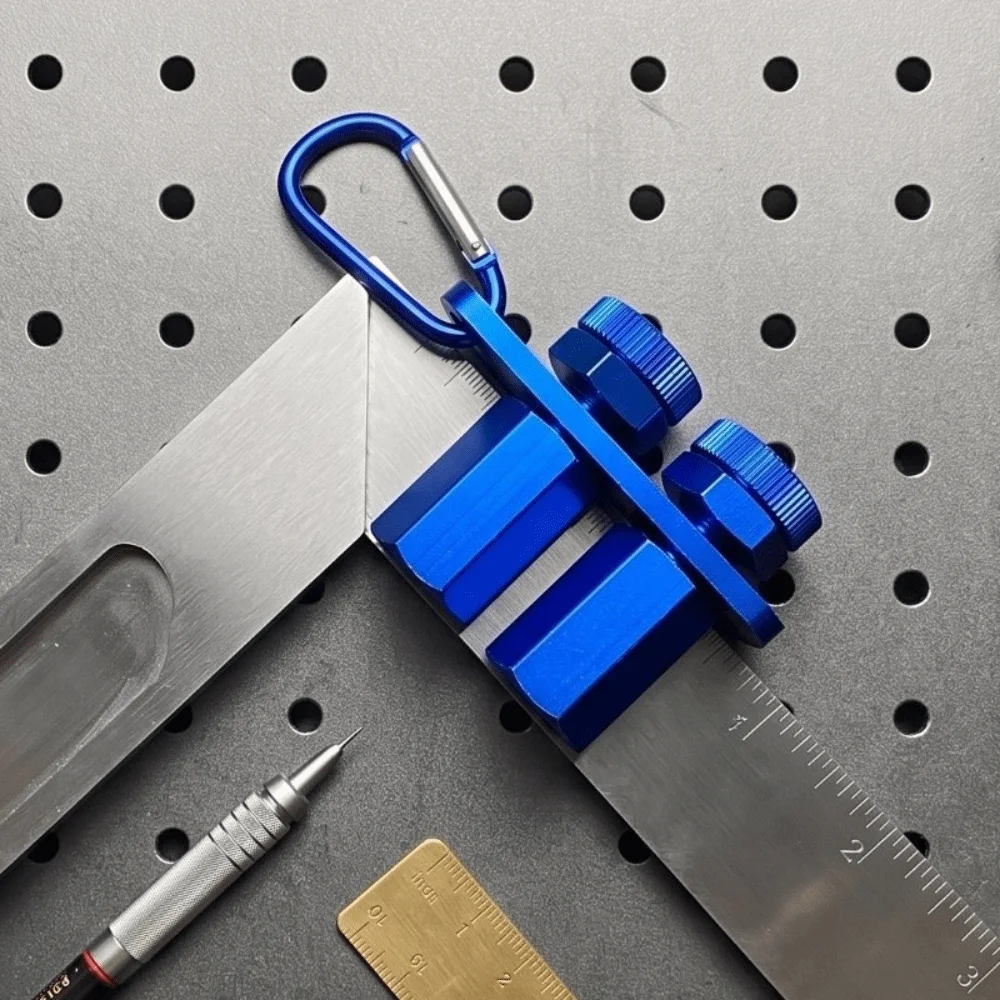

• Integrated Hanging Hook Design: Built-in slot allows the gauge pair to clip directly onto tool belts, pocket edges, or shop pegboards to prevent accidental loss.

• Tall Profile Alignment: Raised body height clears rounded wood corners and wane edges on framing lumber for true alignment.

🏠 Ideal Applications

• Stair Stringer Layout (Riser and Tread Repeat Angle Marking)

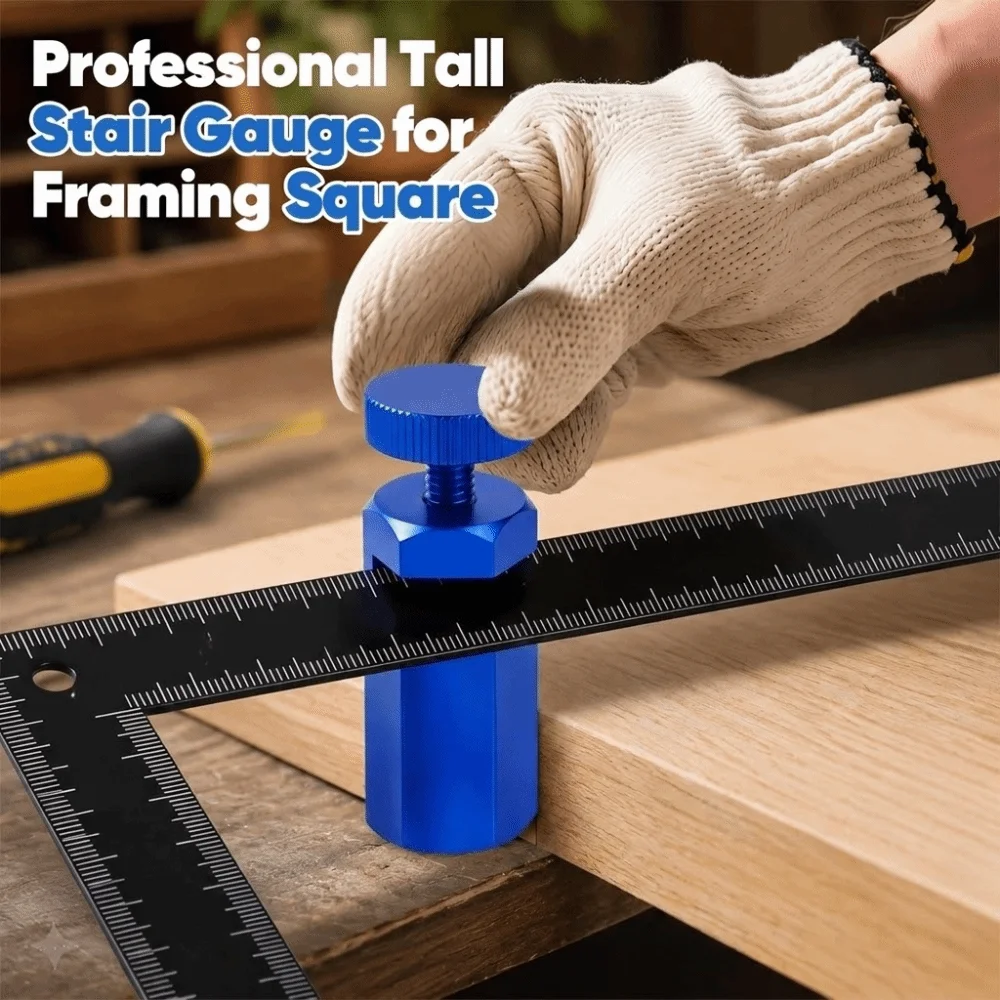

• Circular Saw Edge Guide Attachment on Framing Squares

• Rafter Pitch Angles, Gable Cuts, & Timber Framing Layouts

📦 Package Includes

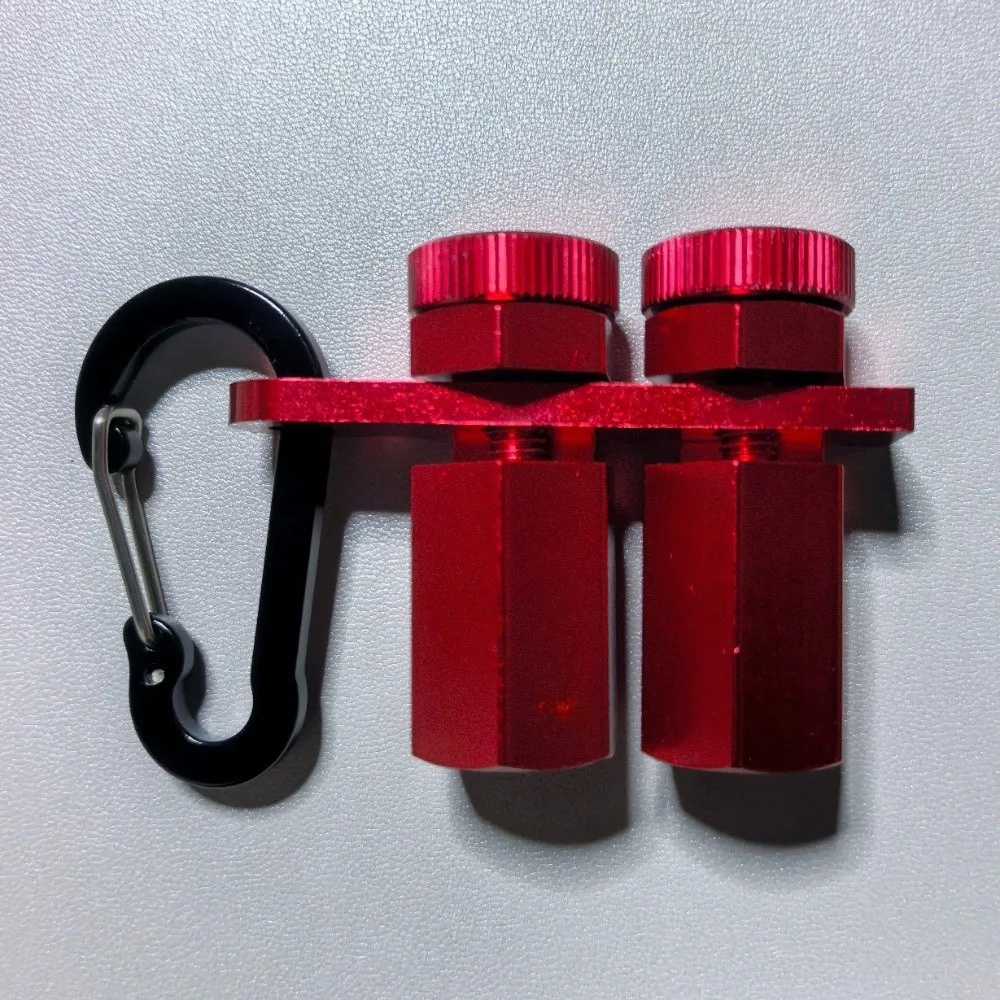

• 1 × Precision Hexagonal Stair Gauge Jig Set with Thumbscrews

⚠️ Important Usage Notes



1. Always attach in pairs on a standard framing square to maintain identical riser-to-tread dimensions across the entire stair stringer.

2. Hand-tighten the thumbscrews firmly against the steel square blade; avoid using pliers to turn the knurled screws to prevent stripping threads.
