Outdoor Trench & Driveway Channel Drain System

📋 Specifications

• Product Type: Heavy-Duty Driveway Trench & Channel Drain System

• Pack Options: Available in 3-Pack or 5-Pack Sets

• Channel Width: 5.5 Inches

• Load Rating Class: Class B Rated (Supports up to 27,500 lbs / 12.5 Metric Tons)

• Primary Material: High-Density Polyethylene (HDPE) Plastic

• Drainage Method: Gravity Flushing Flow System

• Certifications: CE Certified

• Installation Application: Outdoor Driveways, Patios, Garage Entrances, & Walkways

• High-Concerned Chemical: None

🔧 Key Features

• Class B Heavy-Duty Load Capacity: Engineered to withstand vehicle loads up to 27,500 lbs, making it suitable for driveways, garage aprons, and light commercial vehicular traffic.

• Corrosion-Resistant HDPE Construction: Durable high-density polyethylene body resists rust, chemical corrosion, UV degradation, and freezing winter conditions.

• Interlocking Modular Channel Design: Snaps together end-to-end effortlessly, allowing customizable trench lengths to fit any property or hardscape layout.

• Efficient Surface Runoff Drainage: High-flow 5.5-inch grid channels divert large volumes of stormwater quickly via natural gravity flushing.

• Removable Protective Grate: Features easily removable top grates for simple cleanout of accumulated leaves, silt, and debris.

🏠 Ideal Applications

• Diverting Surface Water Across Residential Driveways & Garage Thresholds

• Managing Stormwater Runoff on Patios, Sidewalks, Pool Decks, & Garden Paths

• Controlling Water Accumulation in Parking Areas & Landscaping Trenches

📦 Package Includes

• 3 × or 5 × HDPE Trench Drain Channels with Removable Grates (Selected Pack Size)

• End Caps & Outlet Adapters (Standard Assembly Accessories)

⚠️ Important Installation & Usage Notes



1. Base Installation: Concrete must be poured beneath and around the sides of the channel system during installation to properly achieve and maintain the Class B 27,500 lbs load rating.

2. Clean out debris from beneath the top grates before heavy rainy seasons to maintain optimal gravity drainage flow and prevent clogged runoff lines.





HDPE Plastic Driveway Trench Drain System
This driveway trench drain provides an effective collection and drainage of water. Made of durable HDPE plastic, it works efficiently and has a long service time. With the interlocking connection design, you can install it easily. The drain is one meter long each. It can be connected together to fit your need. Rated for Class B Loads, holds up to 27500 lbs, it is an ideal choice for your garage. Also, it is suitable for the garden, pool, walkway, courtyard, and other outdoor places.

• Various Outlet Connections

• Easy & Quick Installation

• Detachable Plastic Grates

• Durable HDPE Plastic

• Complete Packing List

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose SucceBuy?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Key Features

•

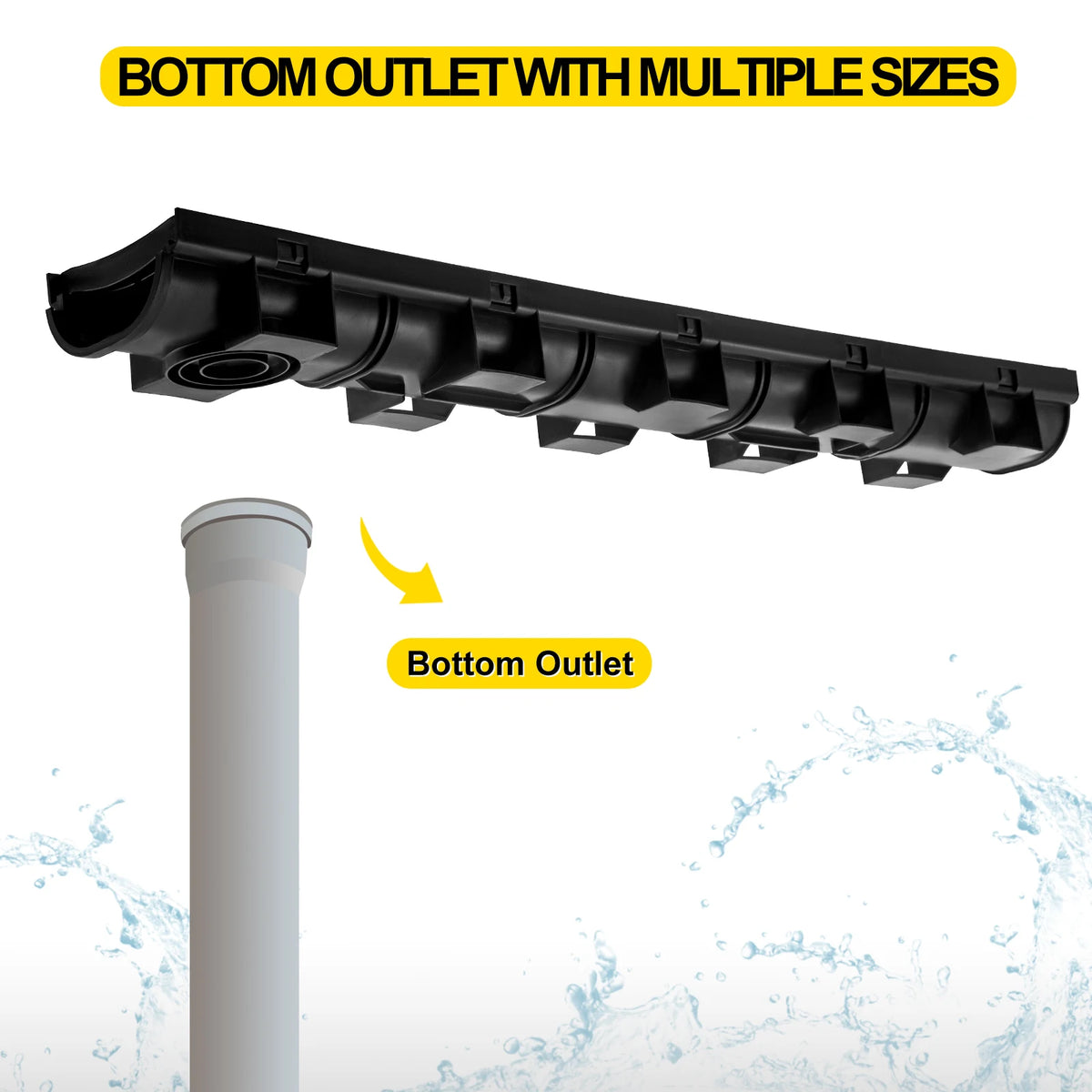

  Bottom & Side Outlets



  Various outlet connections are built into this trench drain. Each outlet contains multiple sizes for different piping methods. With the built-in outlet connector, the pipe can be connected directly.

•

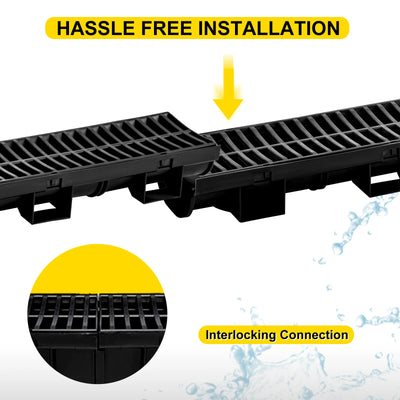

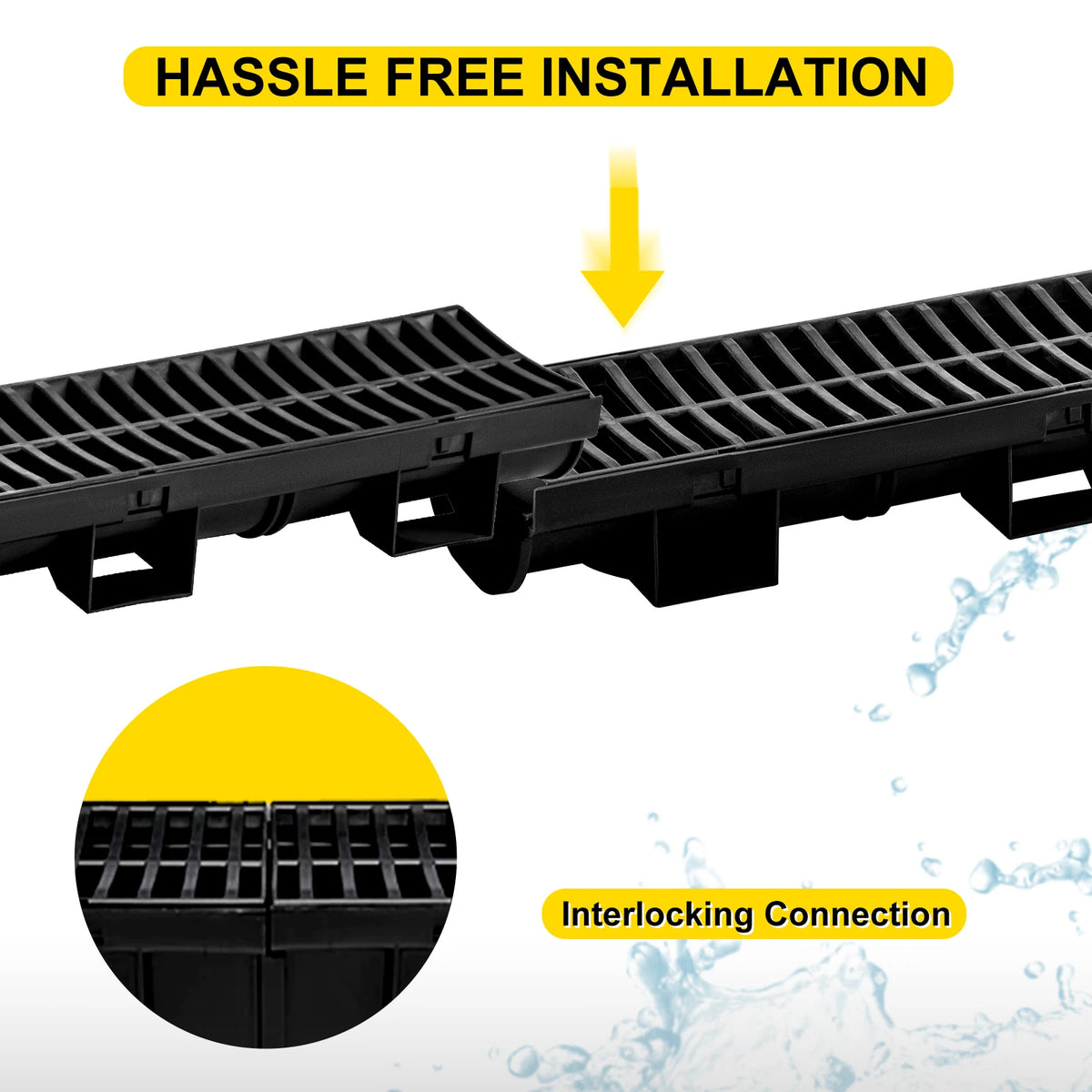

  Hassle-Free Installation



  Each trench drain interlocks with the other; each one is one meter long. You can connect them to extend the length of the drains so that they will meet the length you need.

•

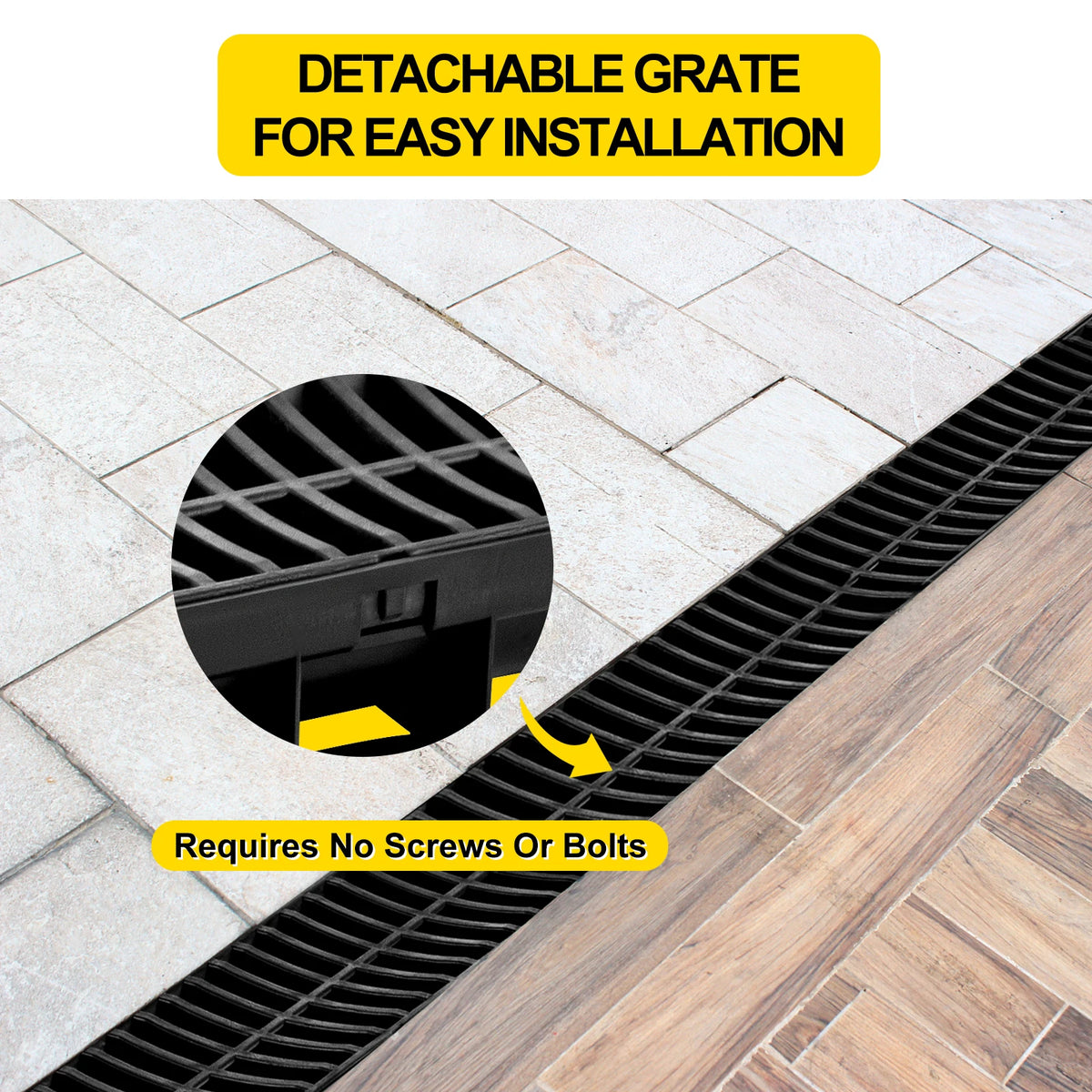

  Detachable Grates



  The installation of the grate requires no screws or bolts; thus, it is easily detached for cleaning. Though it requires no screws or bolts, it still works stably and holds up great.

•

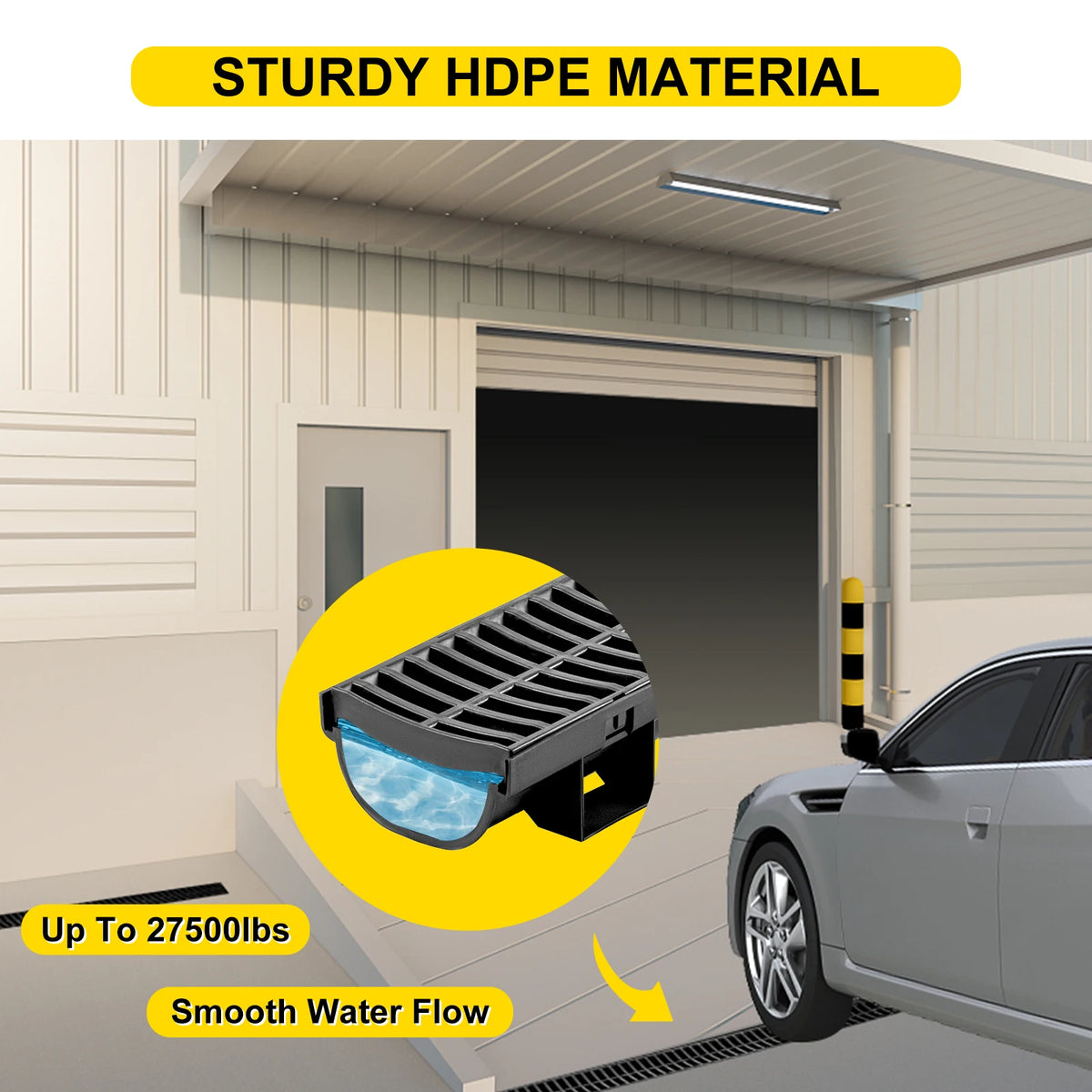

  Sturdy HDPE Material



  Made of HDPE plastic, it can hold up to 27500 lbs. It is suitable for driveways due to its Class B load rate. The HDPE plastic creates a smooth and durable surface to drain the water away smoothly.

•

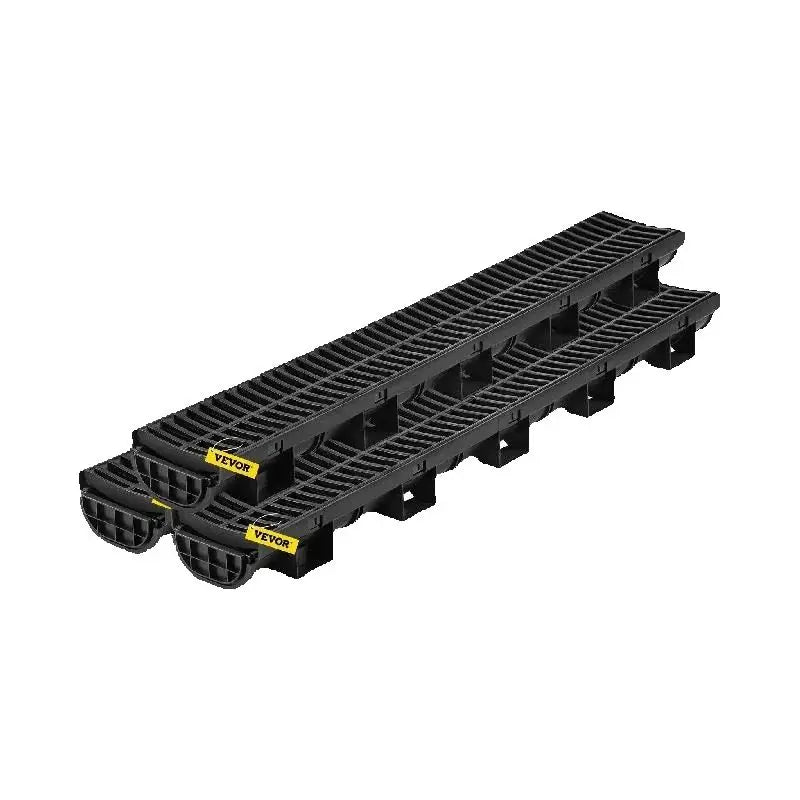

  Trench Drain Kit



  This trench drain kit includes three trench drains. Each one is one meter long. The accessories include three plastic grates and three end caps. We offer you all the accessories that you may need.

•

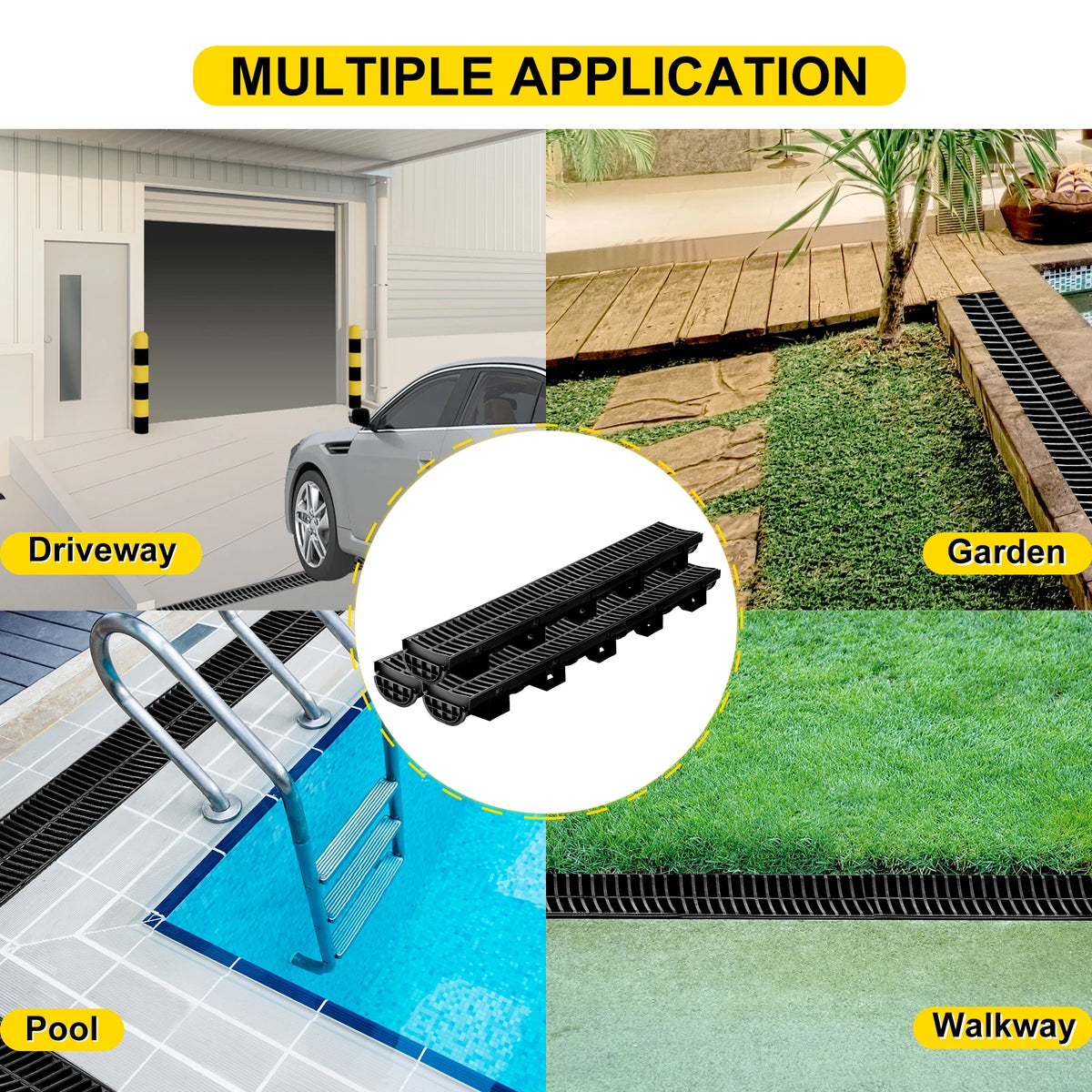

  Multiple Application



  This sturdy and durable drain is suitable for various places, like gardens, pools, sports courts, courtyard, walkways, and more. With the Class B load rate, it is also suitable for driveways.

Specifications

• Model: PSG100*100

• Material: HDPE Plastic

• Color: Black

• Load Rate: Class B / 27500lbs

• Amount: 3 Pack

• External Item Dimensions: 147x132x1000mm / 5.8"x5.2"x39"

• Internal Item Dimensions: 110x100x1000mm / 4.3"x3.9"x39"

• Item Weight Each: 2.93 kg / 6.5lbs

• Maximum Working Temperature: 120℃ / 248℉

• Minimum Working Temperature: -40℃ / -40℉

 Package Content

• 3 x Trench Drain

• 3 x Plastic Grate

• 3 x End Cap

Specifications

• Model: PSG100*45

• Material: HDPE Plastic

• Color: Black

• Load Rate: Class B / 27500lbs

• Amount: 3 Pack

• External Item Dimensions: 147x80x1000mm / 5.8"x3.1"x39"

• Internal Item Dimensions: 110x45x1000mm / 4.3"x1.8"x39"

• Item Weight Each: 2.48 kg / 5.5lbs

• Maximum Working Temperature: 120℃ / 248℉

• Minimum Working Temperature: -40℃ / -40℉

 Package Content

• 3 x Trench Drain

• 3 x Plastic Grate

• 3 x End Cap

Specifications

• Model: PSG100*45*5M

• Material: HDPE Plastic

• Color: Black

• Load Rate: Class B / 27500lbs

• Amount: 5 Pack

• External Item Dimensions: 147x80x1000mm / 5.8"x3.1"x39"

• Internal Item Dimensions: 110x45x1000mm / 4.3"x1.8"x39"

• Item Weight Each: 2.48 kg / 5.5lbs

• Maximum Working Temperature: 120℃ / 248℉

• Minimum Working Temperature: -40℃ / -40℉

 Package Content

• 5 x Trench Drain

• 5 x Plastic Grate

• 5 x End Cap



Features & Details



• 【VARIOUS OUTLET CONNECTIONS】- Each trench drain provides end outlet, side outlet, and bottom outlet with multiple sizes. No outlet connector is needed because it is already built-in; thus, the pipe can be connected directly.

• 【EASY & QUICK INSTALLATION】- To fit your need, you can connect these trench drains together for extra length. The channel-to-channel connection provides an easy and fast installation. Meanwhile, the interlocking design connects the drains tightly with no potential leak of water.

• 【DETACHABLE PLASTIC GRATES】- Specially designed grate offers you an easy way of cleaning. It can be installed manually, needs no screws or bolts. Thus, it can be installed and detached easily, which provides a convenient way to clean the drain if it is bunged up.

• 【DURABLE HDPE PLASTIC】- Sturdy HDPE plastic creates a hard and durable structure. Rated for Class B Loads, holds up to 27500 lbs, it is suitable for cars. The HDPE plastic provides a smooth interior surface which allows faster water intake. Ideal for gardens, pools, walkways, and so on.

• 【COMPLETE PACKING LIST】- This trench drain kit comes with three drains with built-in side outlets and bottom outlets, three plastic grates, and three end caps with built-in end outlets. Plus, the outlet connector is already built-in. All the accessories that you may need are included.
