Invisible RFID Cabinet & Drawer Lock

Product Description

Add convenient keyless security to cabinets, drawers, cupboards, and storage compartments with this Invisible RFID Cabinet Lock.

The locking mechanism installs inside the cabinet or drawer, keeping the exterior clean without a visible keyhole or traditional lock. Simply hold an authorized RFID card near the designated area to unlock.

Ideal for child safety, private storage, office cabinets, drawers, lockers, and other indoor storage applications.

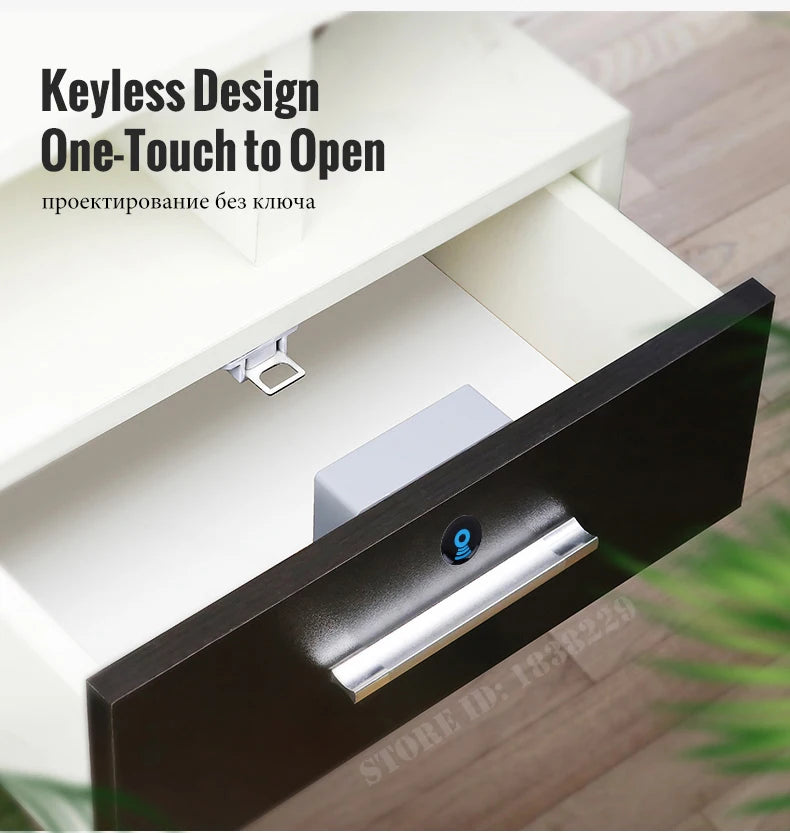

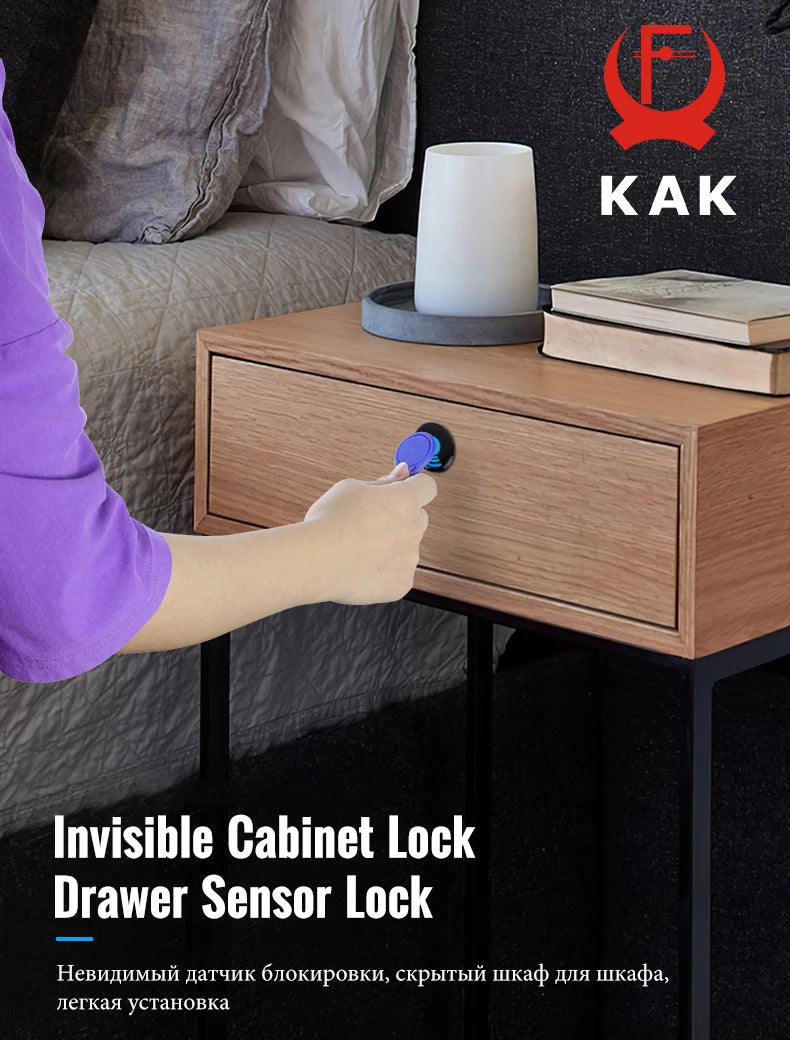

Invisible Keyless Design

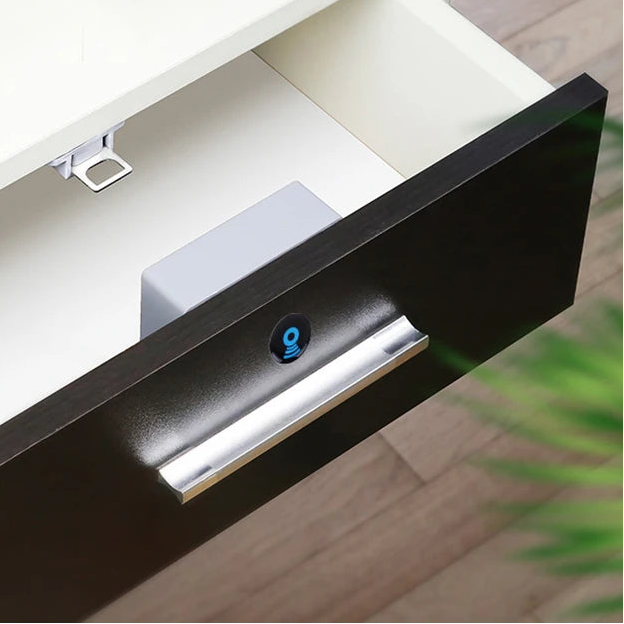

Unlike traditional cabinet locks, the locking mechanism remains hidden inside the cabinet.

There is no external keyhole, helping maintain the original appearance of your furniture while adding convenient access control.

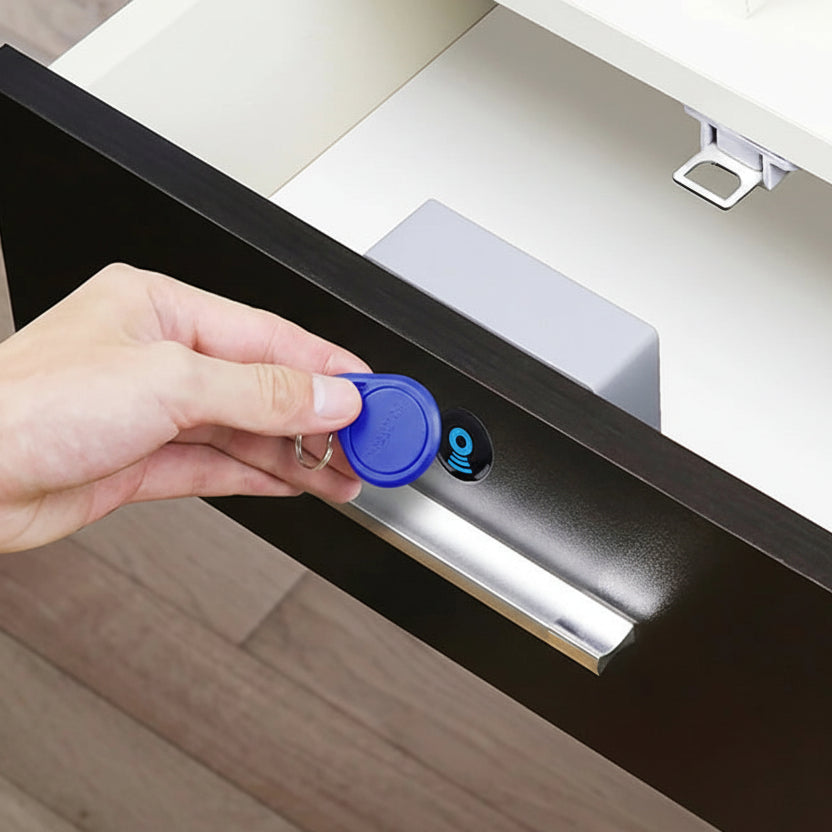

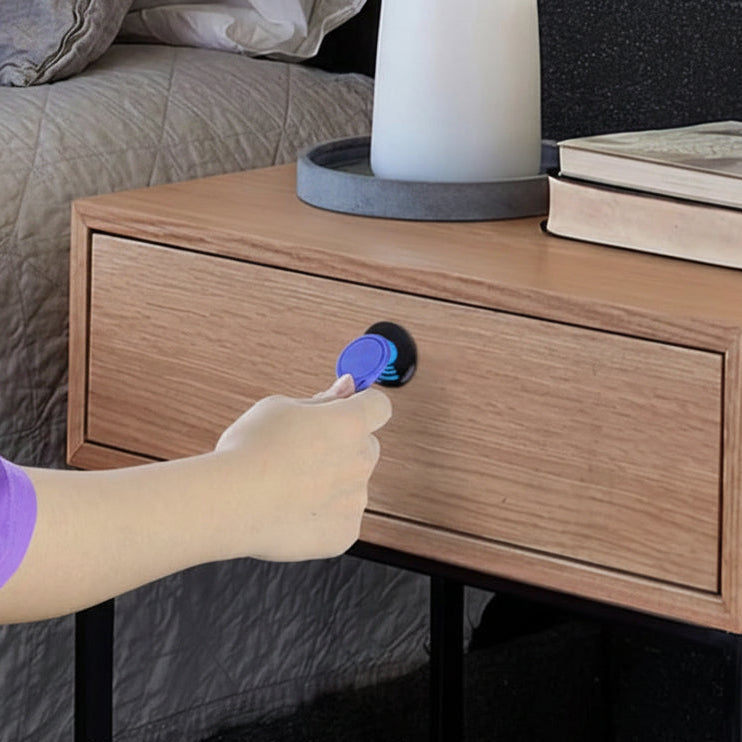

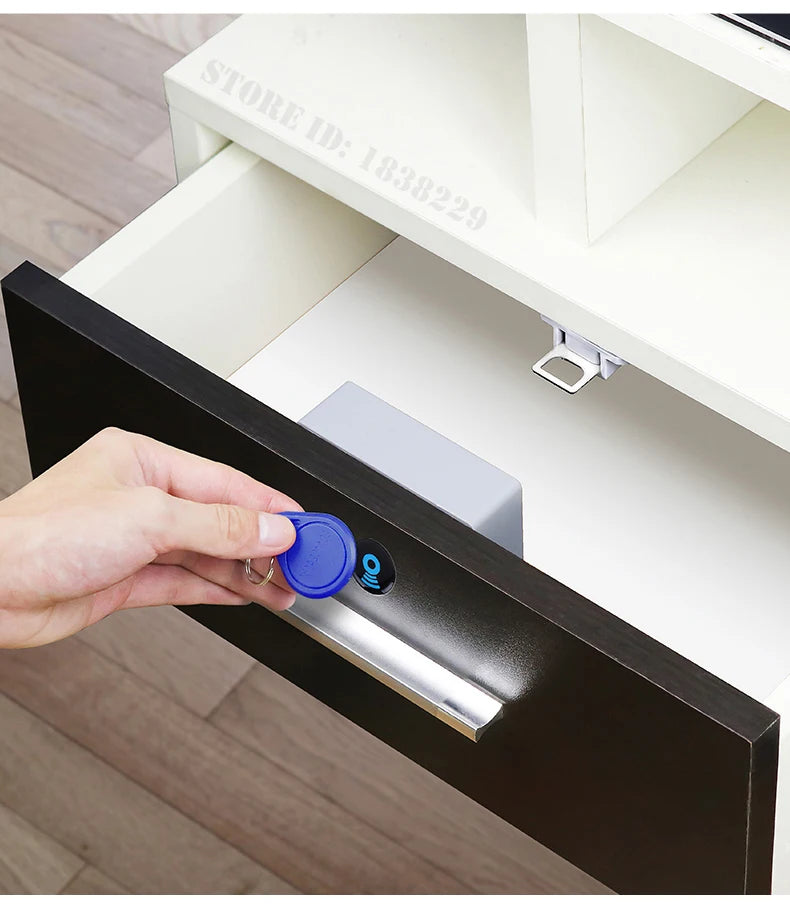

RFID Card Unlocking

Unlock the cabinet using the included RFID access cards.

The set includes:

• 3 User Cards

• 1 Management Card

For compatible wooden panels:

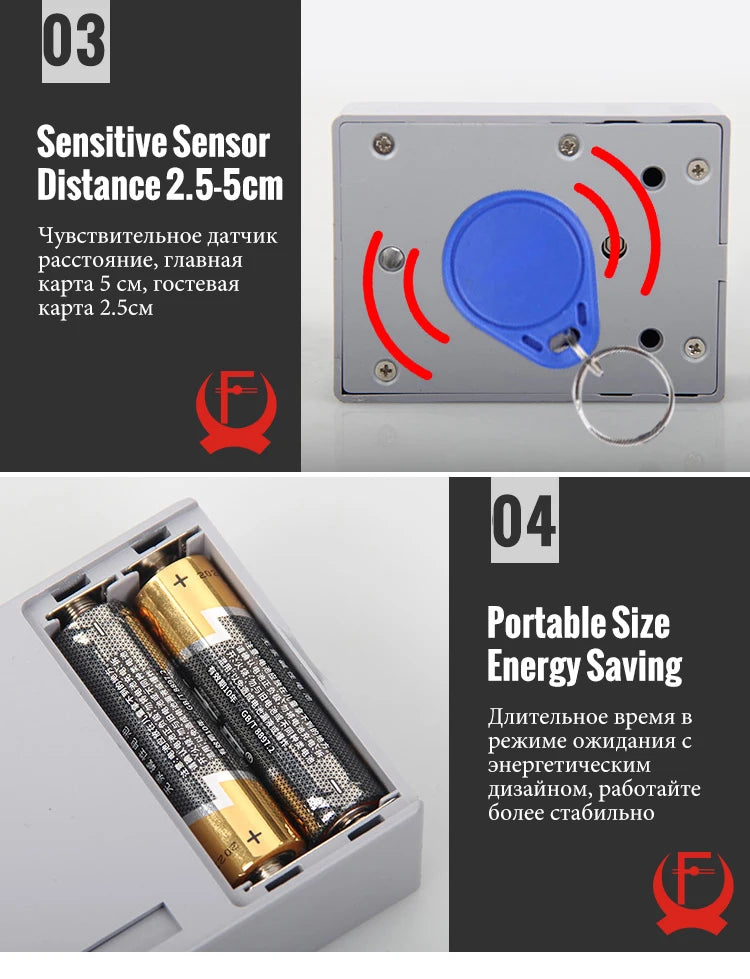

• User card reading distance: Up to 1 in (25 mm)

• Management card reading distance: Up to 2 in (50 mm)

Actual reading distance may vary depending on door material, thickness, installation position, and surrounding interference.

Single & Dual Card Modes

Choose the access configuration that fits your needs.

Single Mode: Use one authorized user card to unlock.

Dual Mode: Requires two authorized user cards for access, providing an additional layer of control.

Child Safety Solution

Use the hidden lock to help prevent young children from easily accessing cabinets or drawers containing household supplies, tools, medications, or other items that should remain secured.

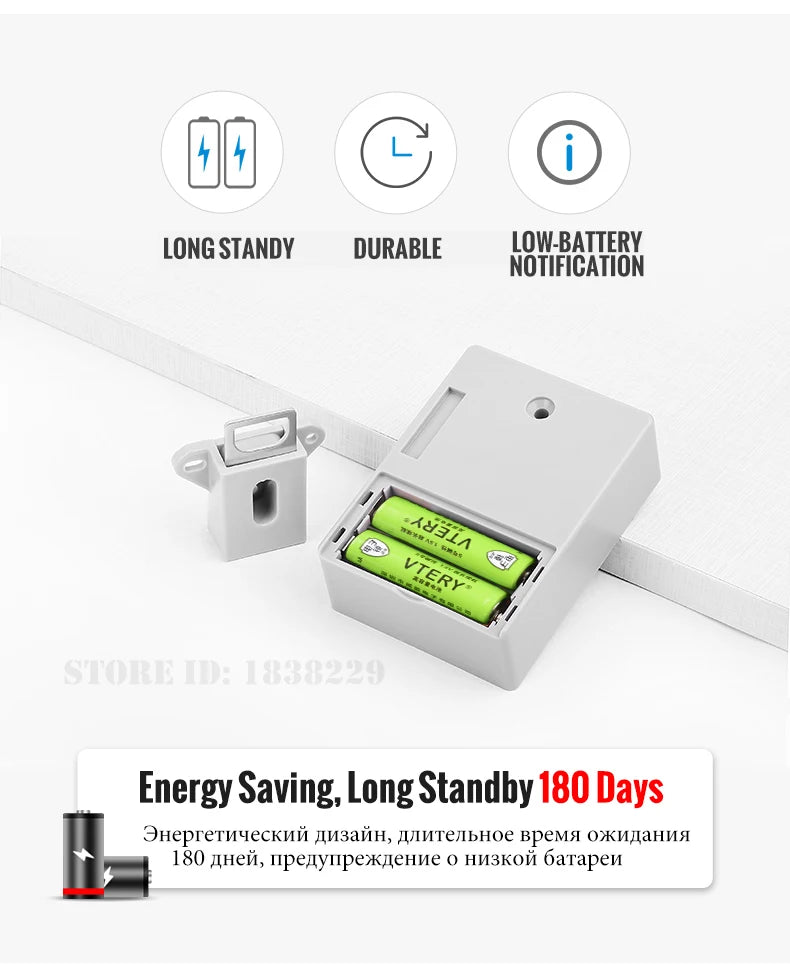

Low-Battery Warning & Auto-Unlock Protection

The lock provides an audible low-battery warning when battery power becomes low.

According to the supplied specifications, approximately 50 additional unlocking operations may remain after the low-battery warning begins.

If battery power becomes too low for normal operation, the lock is designed to automatically unlock, helping reduce the risk of becoming permanently locked out.

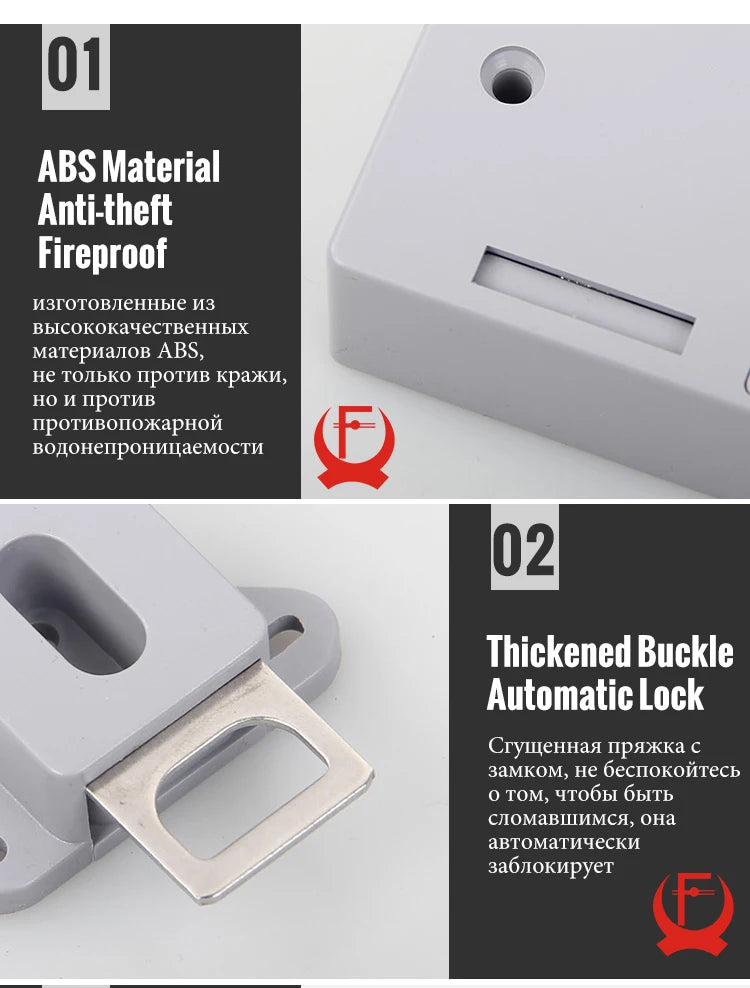

Durable Locking Mechanism

The housing is made from ABS plastic, while the latch and mortise use metal components for a stronger locking mechanism.

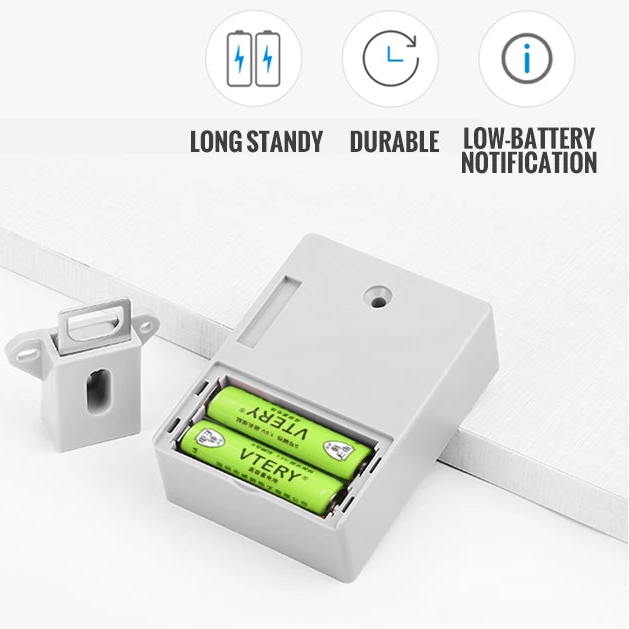

Battery or USB Power

The lock operates using:

2 × AA alkaline batteries

Under normal use, the batteries are rated for approximately 6 months of operation.

The unit can also be powered using a compatible USB power adapter.

Batteries are not included.

Ideal For

• Kitchen cabinets

• Drawers

• Cupboards

• Office cabinets

• Lockers

• Storage compartments

• Medical carts

• Data racks

• Child-safety applications

Technical Specifications

• Product Type: Invisible RFID Cabinet Lock

• Unlock Method: RFID Card

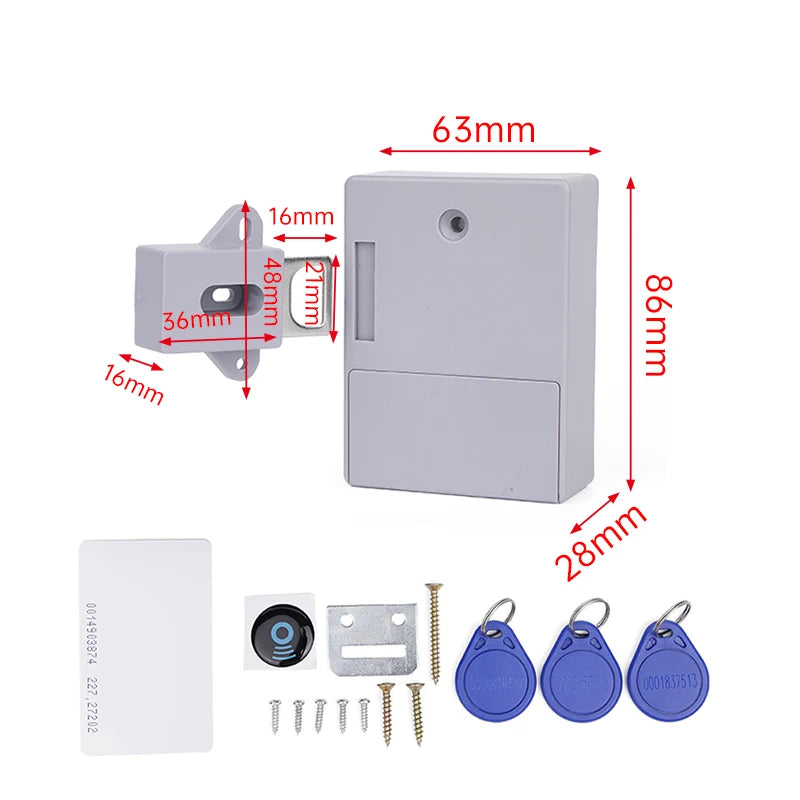

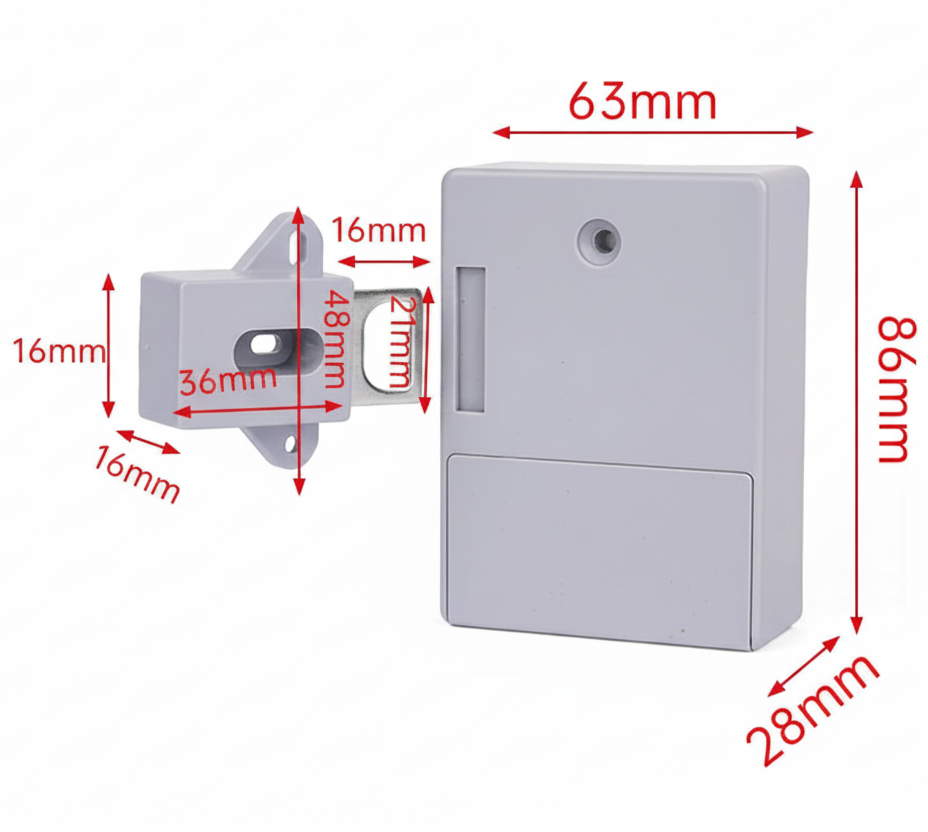

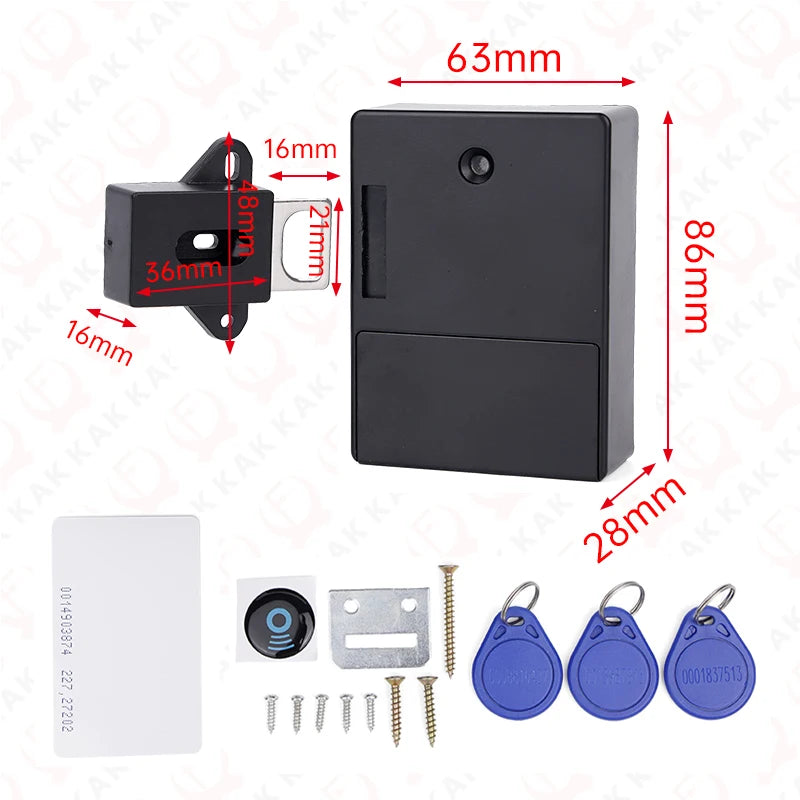

• Lock Size: 3.39 × 2.48 × 1.10 in (86 × 63 × 28 mm)

• Housing Material: ABS Plastic

• Latch Mechanism: Metal

• User Card Range: Up to 1 in (25 mm) through compatible wooden panels

• Management Card Range: Up to 2 in (50 mm) through compatible wooden panels

• Power Supply: 2 × AA Alkaline Batteries

• Alternative Power: USB Power Adapter

• Low-Battery Warning: Yes

• Auto-Unlock at Critical Low Battery: Yes

• Unlock Modes: Single Card / Dual Card

• Handle Direction: Reversible

• Available Colors: Gray / Black

• Installation: Indoor

• Batteries Included: No

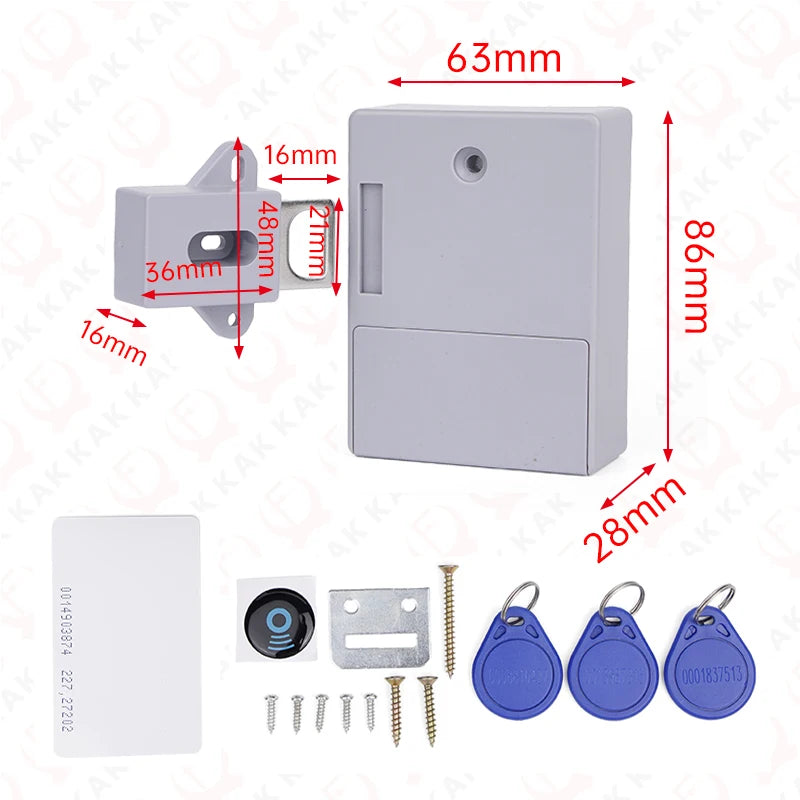

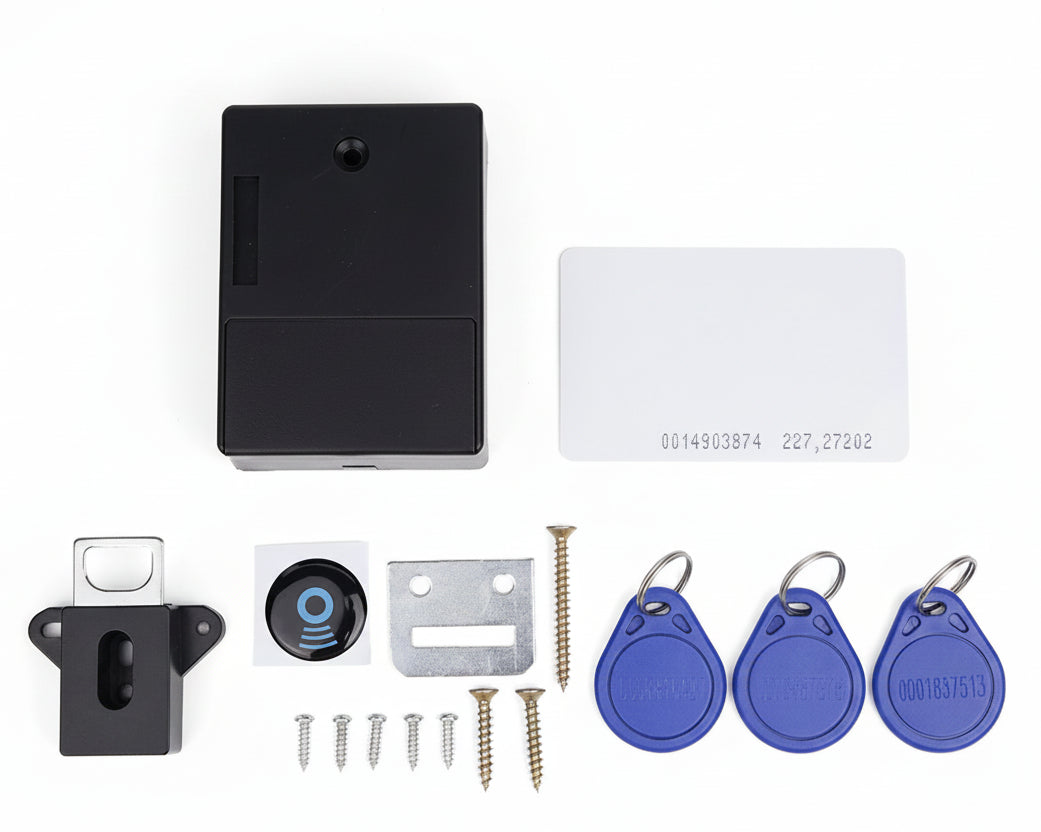

Package Includes

• 1 × RFID Cabinet Lock

• 3 × User Cards

• 1 × Management Card

• 1 × Set of Installation Screws

Hidden Security Without a Visible Keyhole

Secure your cabinets and drawers while keeping the outside of your furniture clean and uncluttered. The combination of RFID keyless access, hidden installation, low-battery protection, and multiple access modes makes this a practical upgrade for home or office storage.
