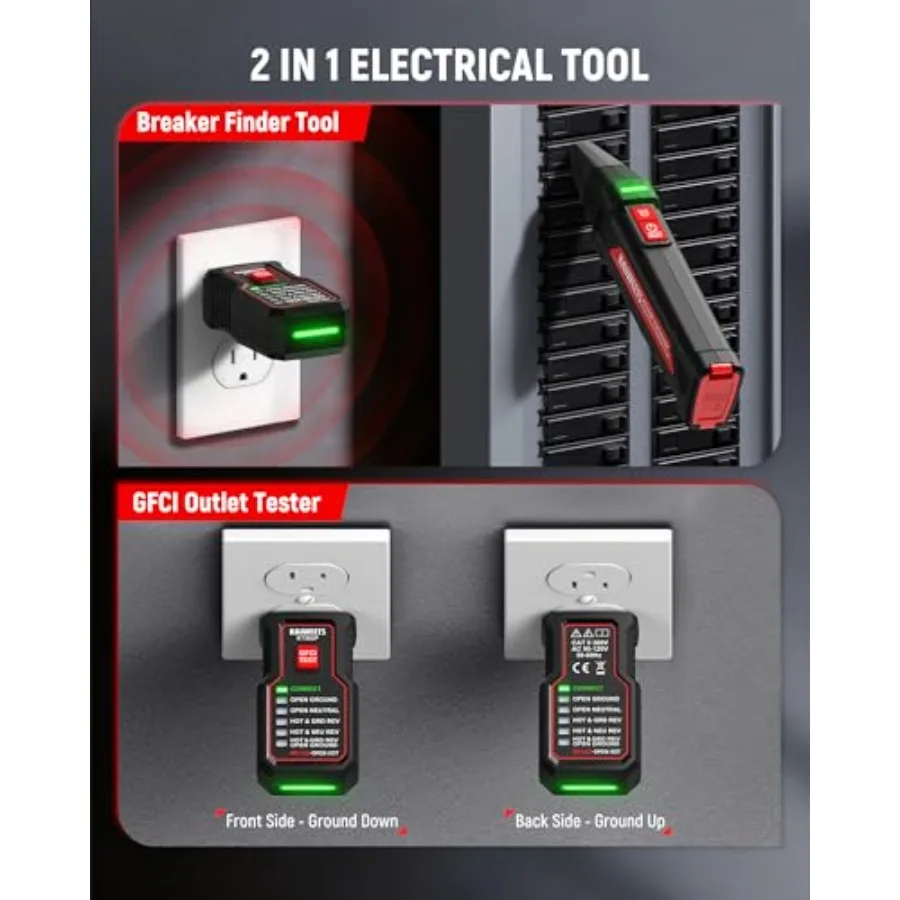

Digital Circuit Breaker Finder Tool Kit & GFCI Outlet Tester

📋 Specifications

• Product Type: Digital Circuit Breaker Finder & GFCI Outlet Receiver Kit

• Operating Voltage Range: 90V – 120V AC (50/60 Hz)

• Signal Detection: Digital Signal Transmitter & Handheld Inductive Probe

• Tester Functions: GFCI Trip Test Function & 3-LED Wiring Fault Indicator

• Alert System: Visual LED Signal Strength Bar & High-Decibel Audible Beeper

• Power Source: 9V Battery (Receiver Probe) / Line Powered (Plug Transmitter)

• Origin: SK

• High-Concerned Chemical: None

🔧 Key Features

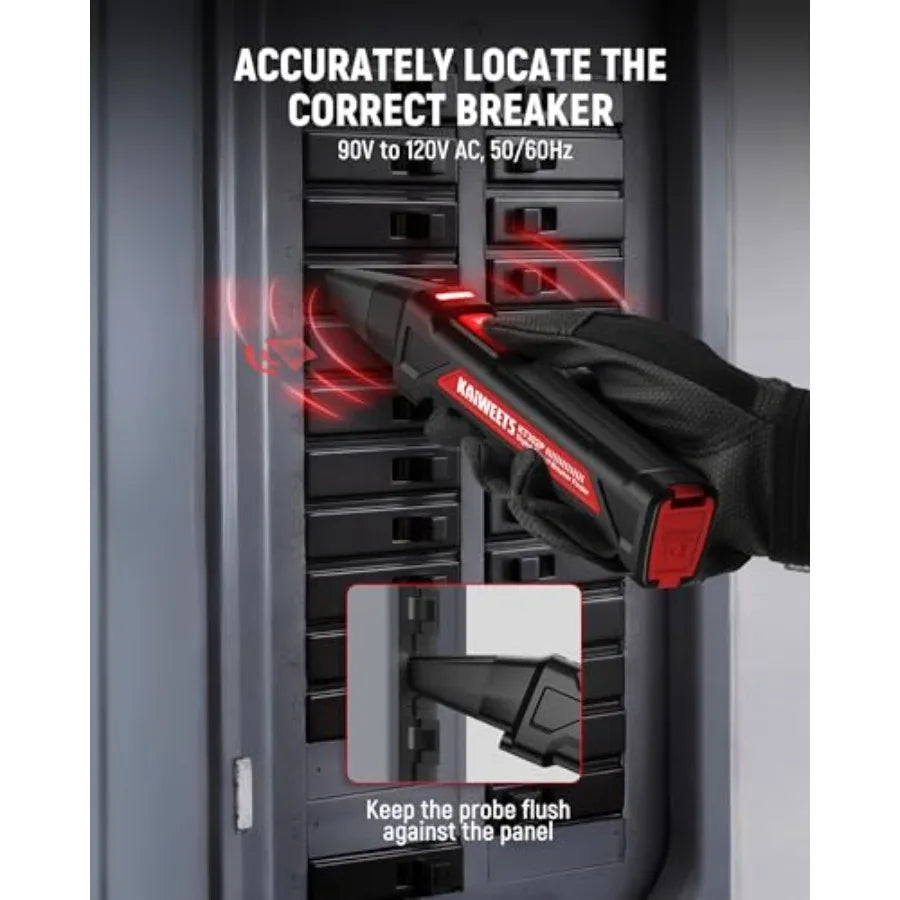

• Precise Breaker Identification: Transmitter sends a digital signal through live circuit wiring, allowing the handheld probe to locate the exact circuit breaker or fuse in the panel without shutting down main power.

• Microprocessor-Driven Sensitivity: Microprocessor controls eliminate false positive signals and phantom readings on closely packed electrical panels.

• Integrated GFCI Outlet Tester: Built-in testing button simulates a ground fault condition to test proper GFCI receptacle operation and safety trip speed.

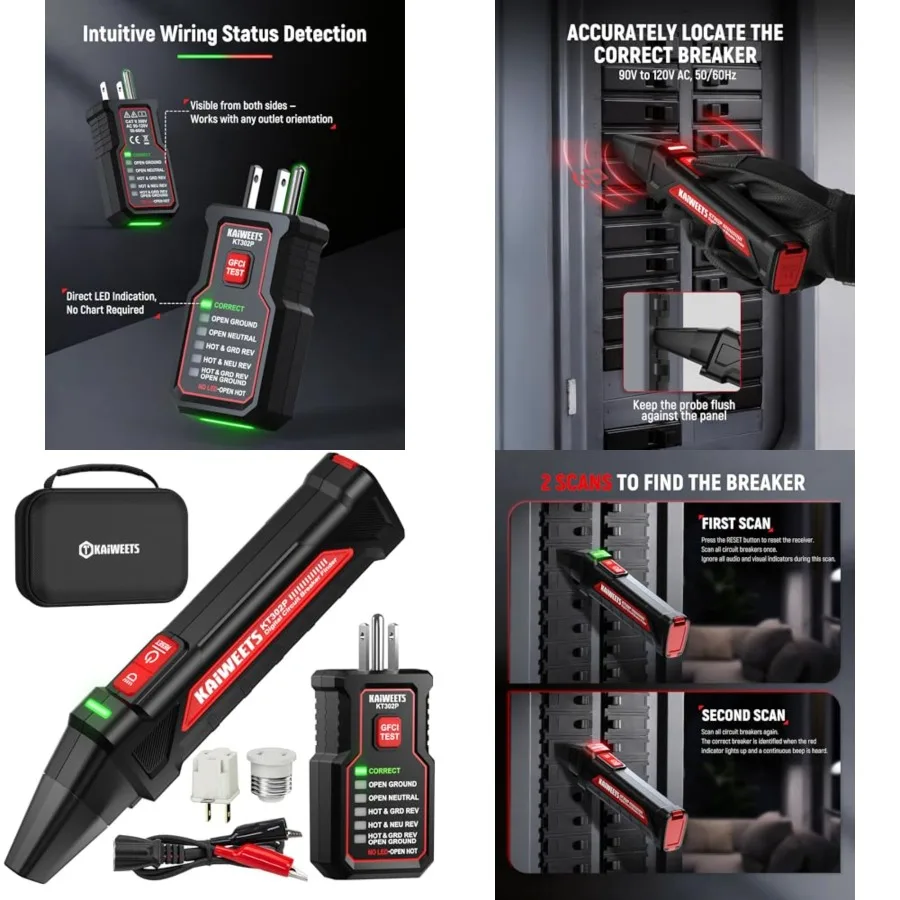

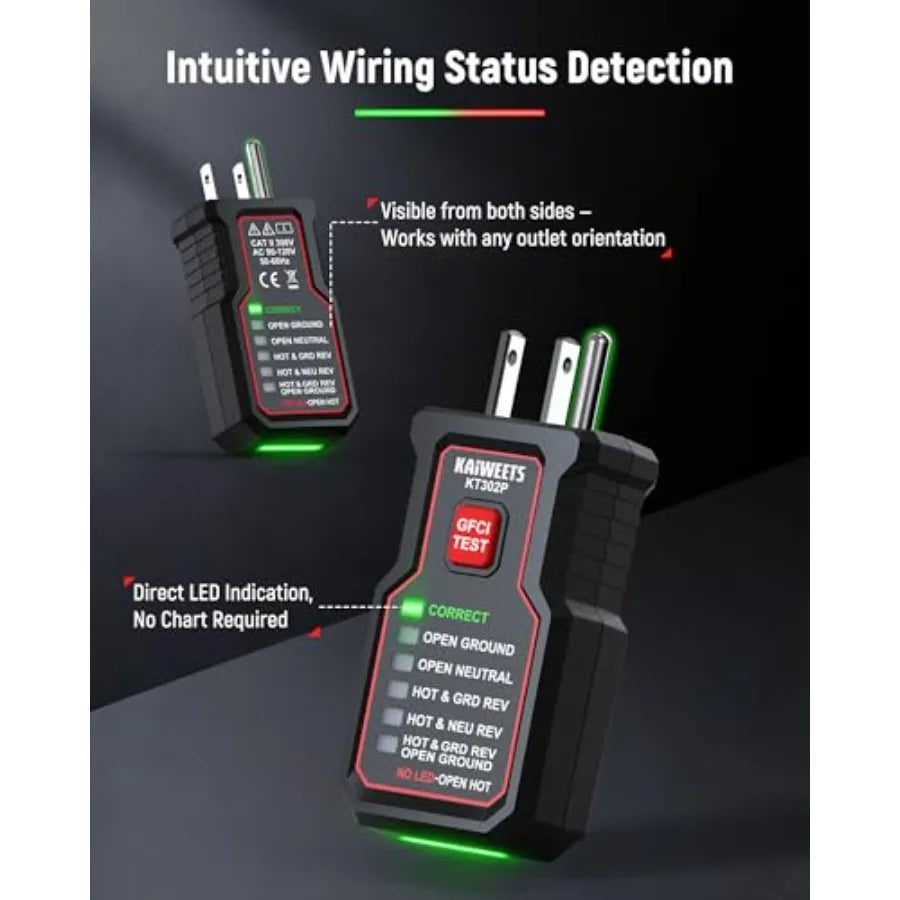

• 3-LED Wiring Diagnostic Code: Easy-to-read LED pattern chart instantly identifies common wiring conditions (Correct, Open Ground, Open Neutral, Open Hot, Hot/Ground Reverse, and Hot/Neutral Reverse).

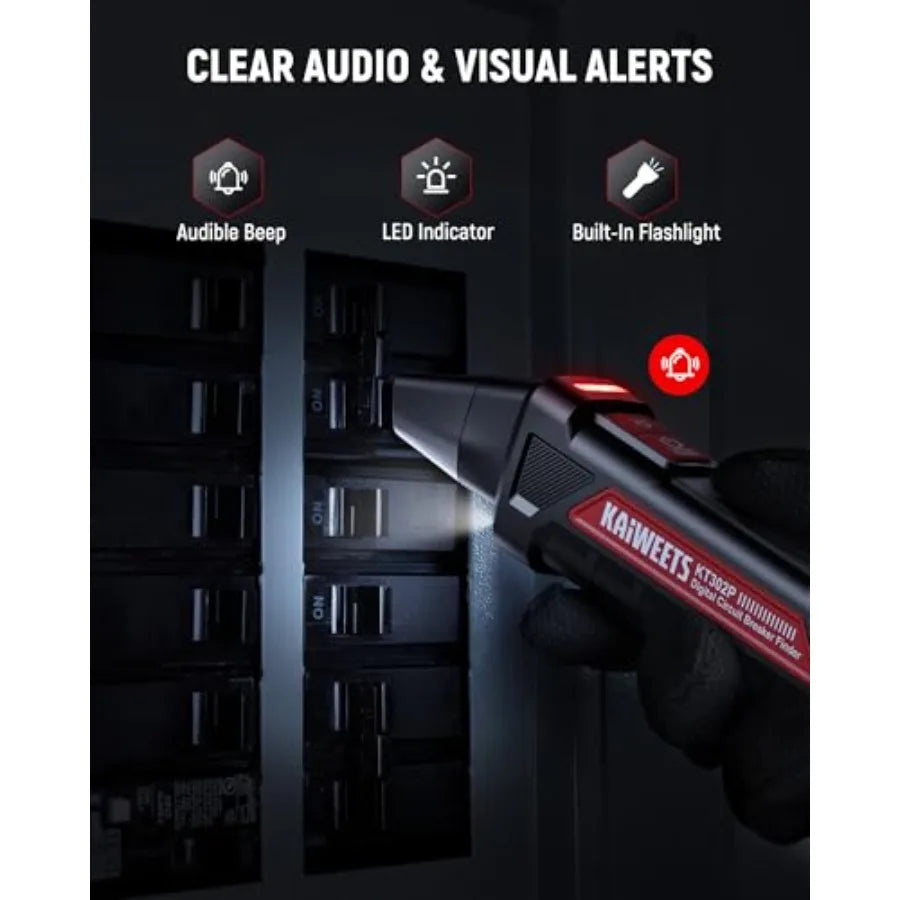

• Dual Visual & Audible Indicators: Handheld receiver features a multi-level LED signal bar paired with an audible tone that grows louder and faster as you approach the target breaker.

🏠 Ideal Applications

• Mapping Residential & Commercial Electrical Panel Breakers Single-Handedly

• Testing & Troubleshooting Wall Outlets, Light Sockets, & GFCI Receptacles

• Safe Electrical Panel Labeling During Home Renovations & Electrical Repairs

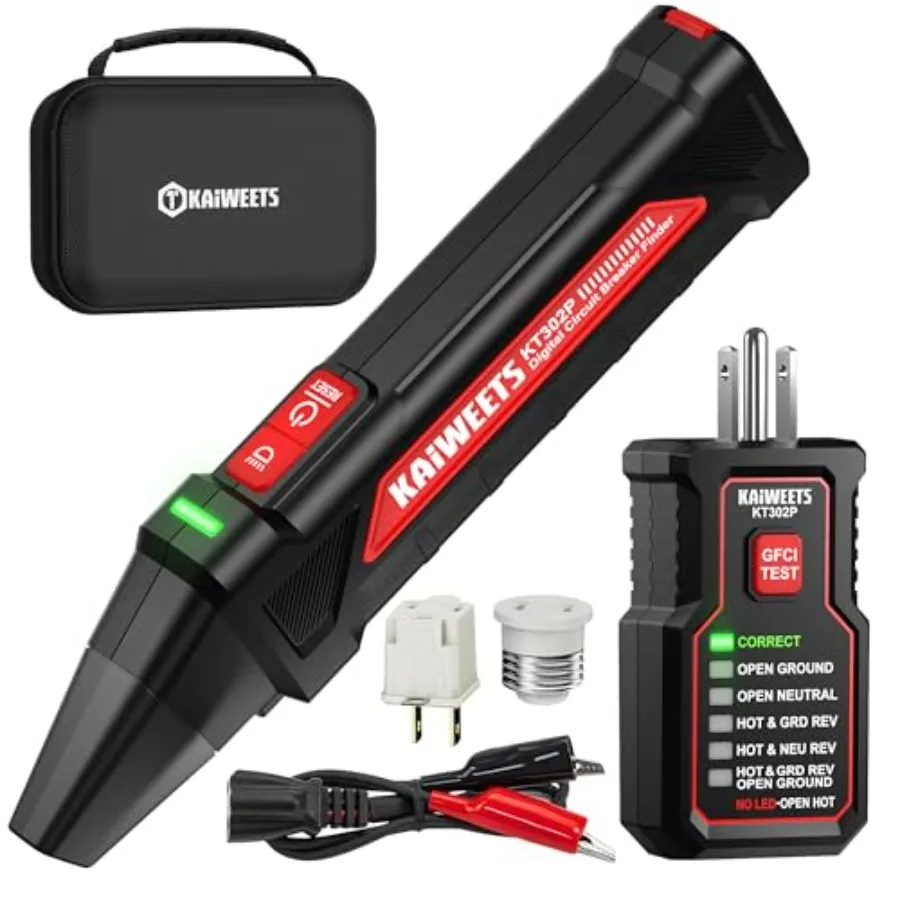

📦 Package Includes

• 1 × Digital Circuit Breaker Finder Receiver Probe

• 1 × Transmitter Plug with GFCI Outlet Tester

• 1 × User Manual

⚠️ Important Usage Notes

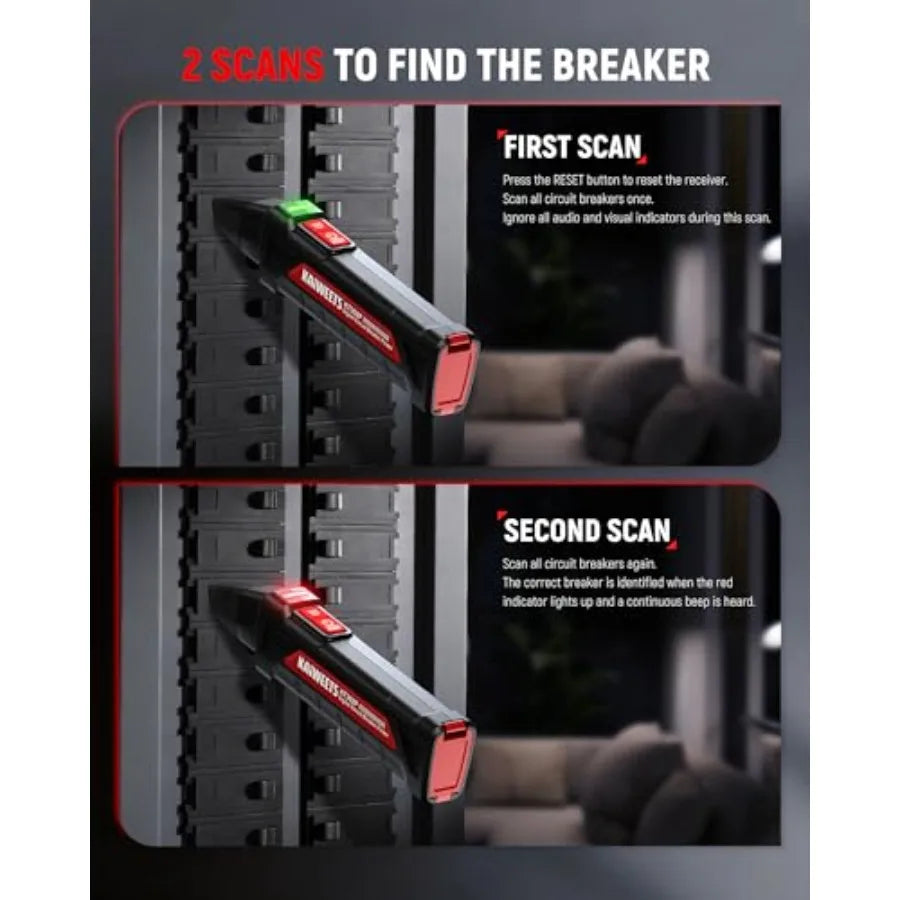

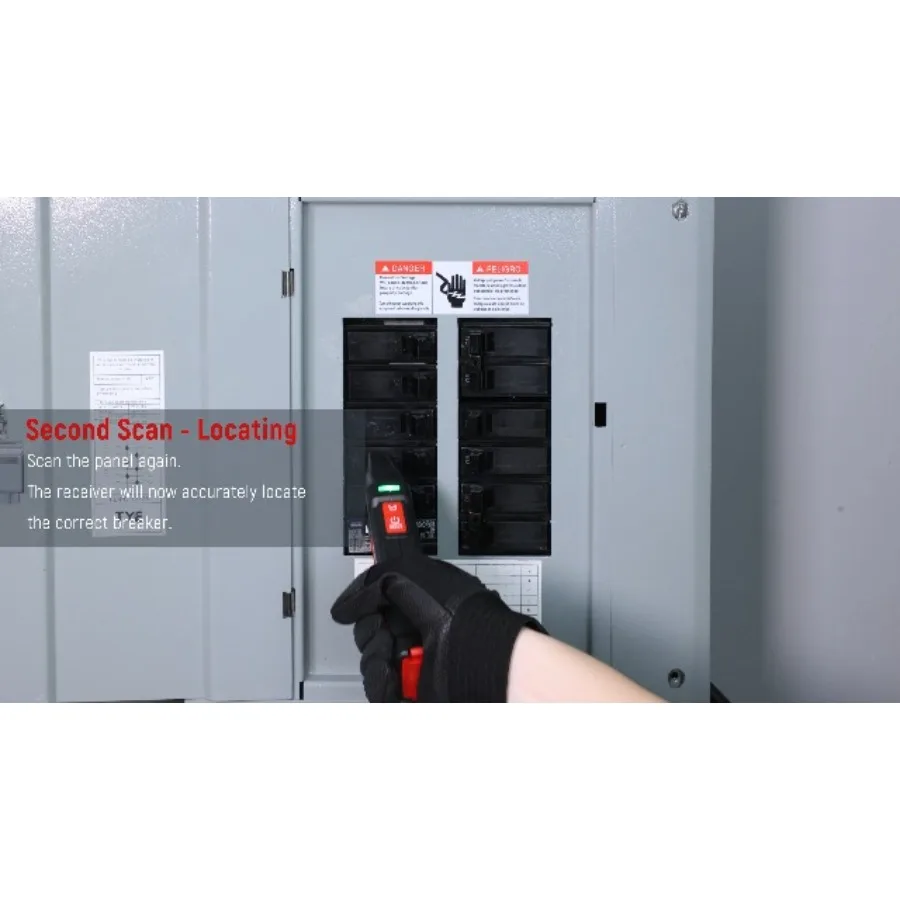

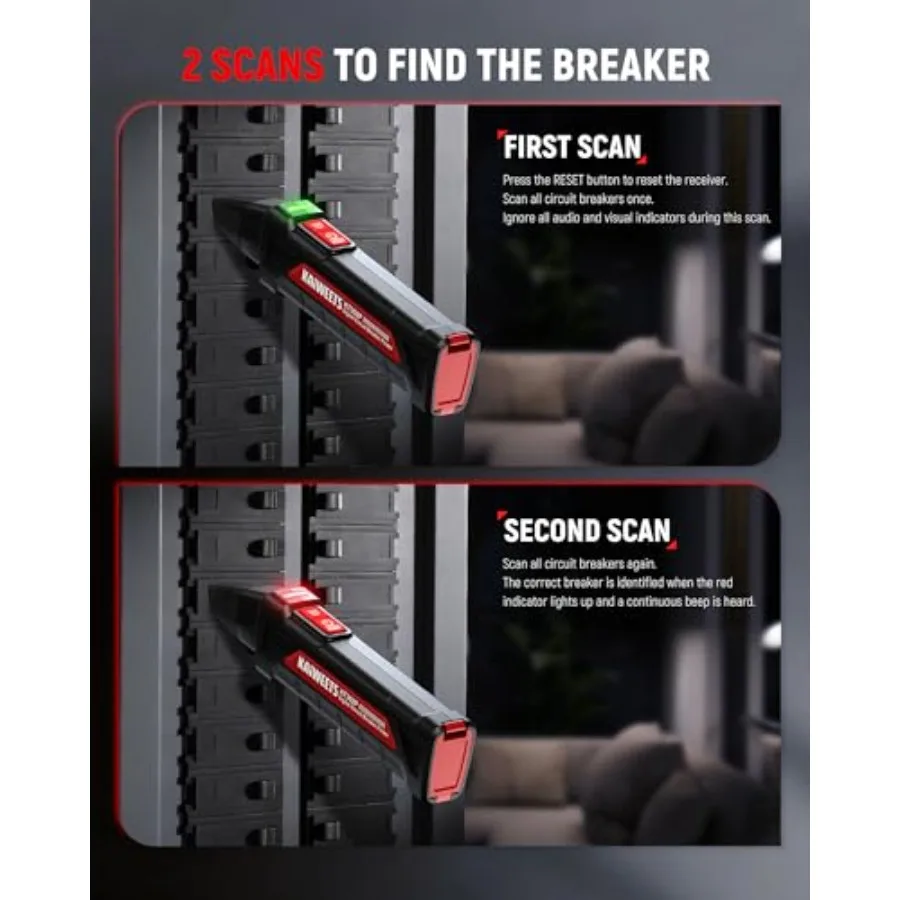

1. Always perform a preliminary calibration sweep along the entire breaker panel row on the first pass before conducting the second pass to identify the strongest signal peak.

2. The GFCI test function must only be used on correctly wired 120V AC outlets; verify that the 3-LED indicator shows "Correct Wiring" before pressing the GFCI test button.
