Aluminum Corner Radius Jig Router Template for Woodworking

📋 Specifications

• Primary Material: Anodized CNC Machined Aluminum Alloy

• Template Thickness: 5 mm (~0.20") Heavy-Duty Plate

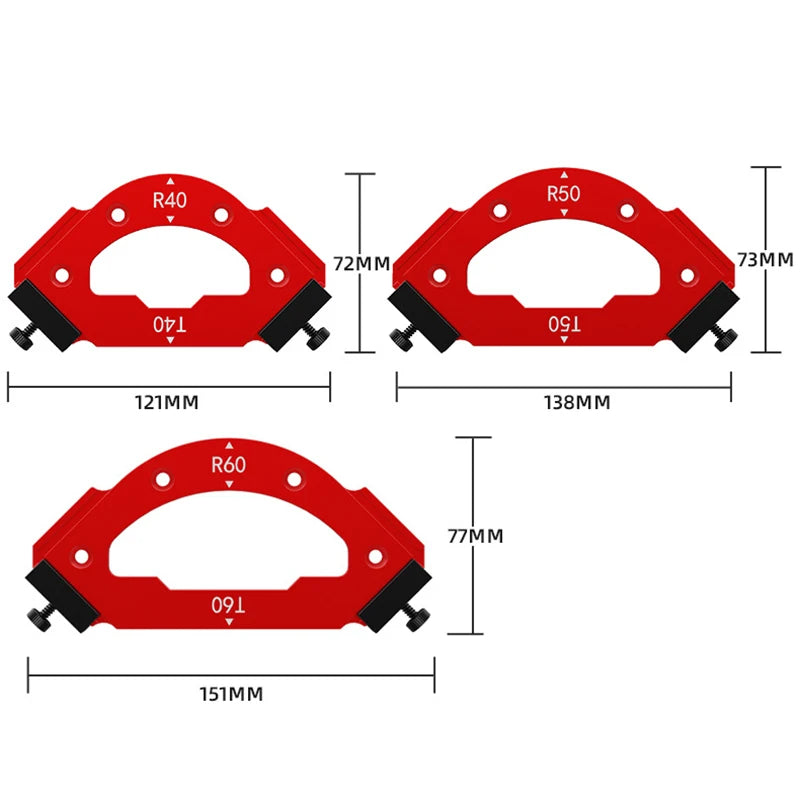

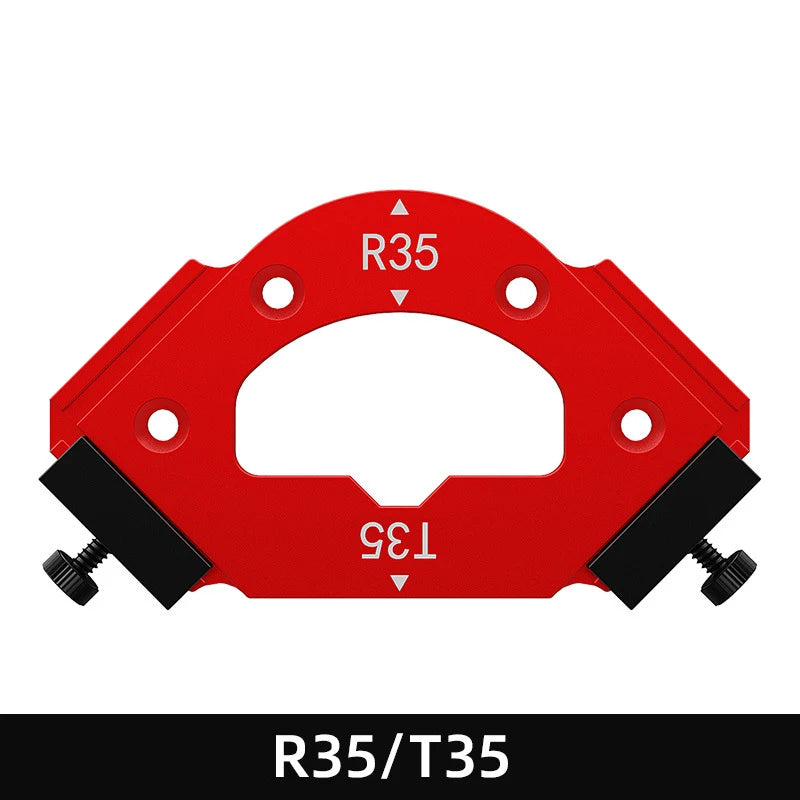

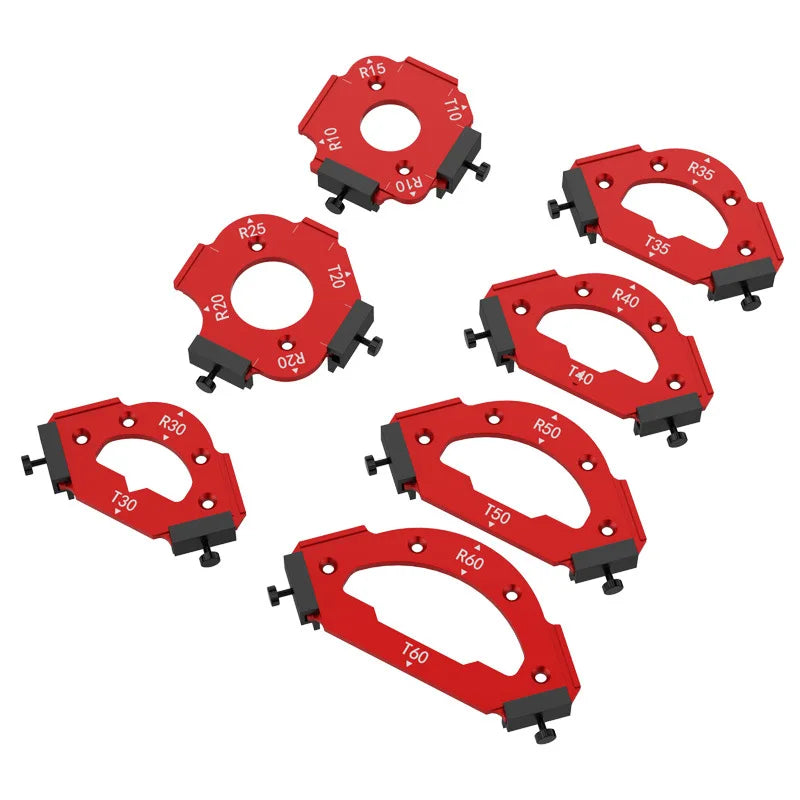

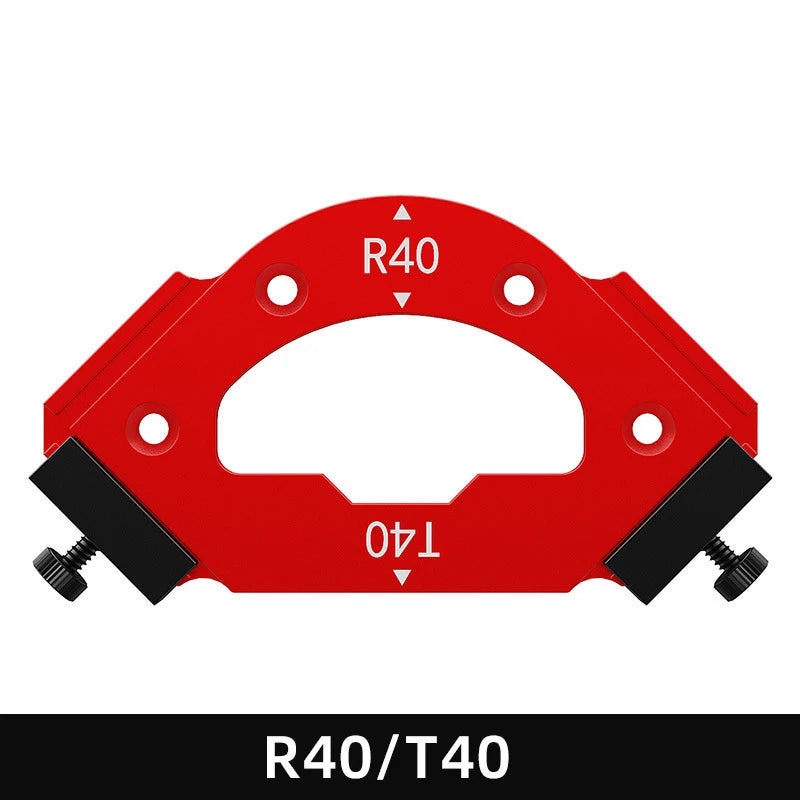

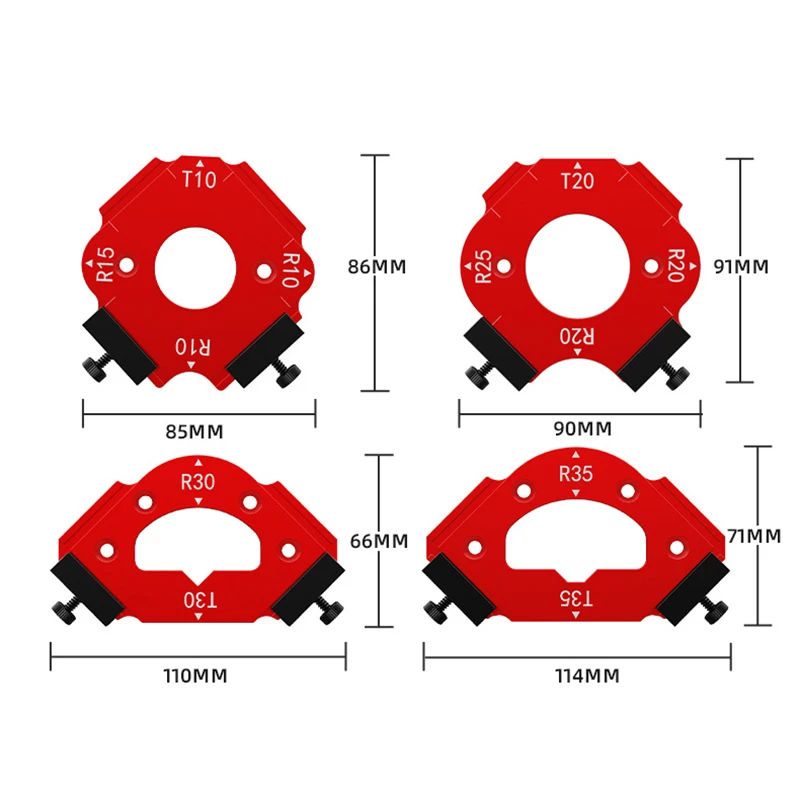

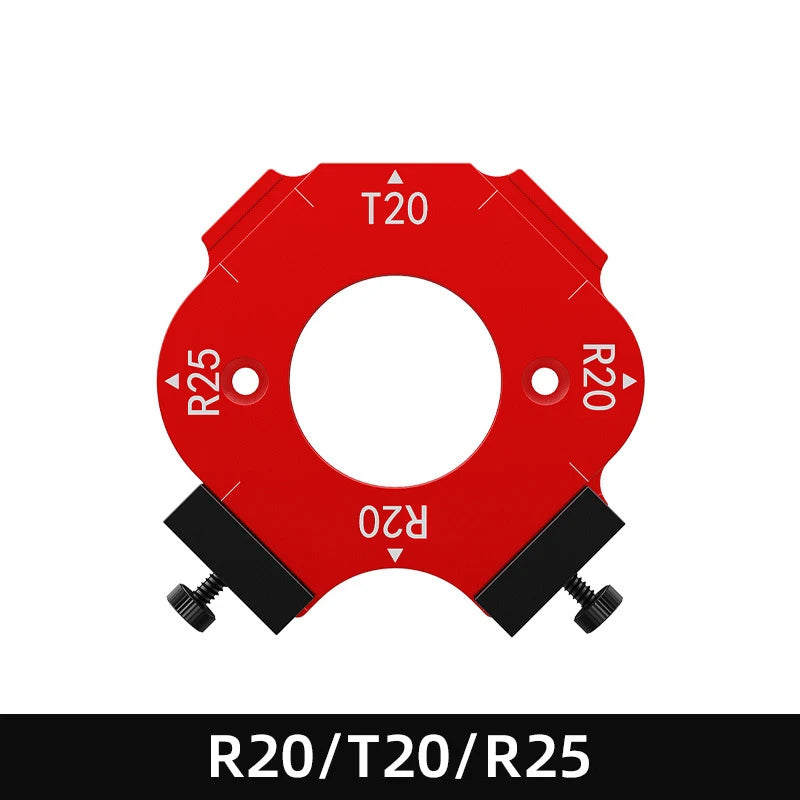

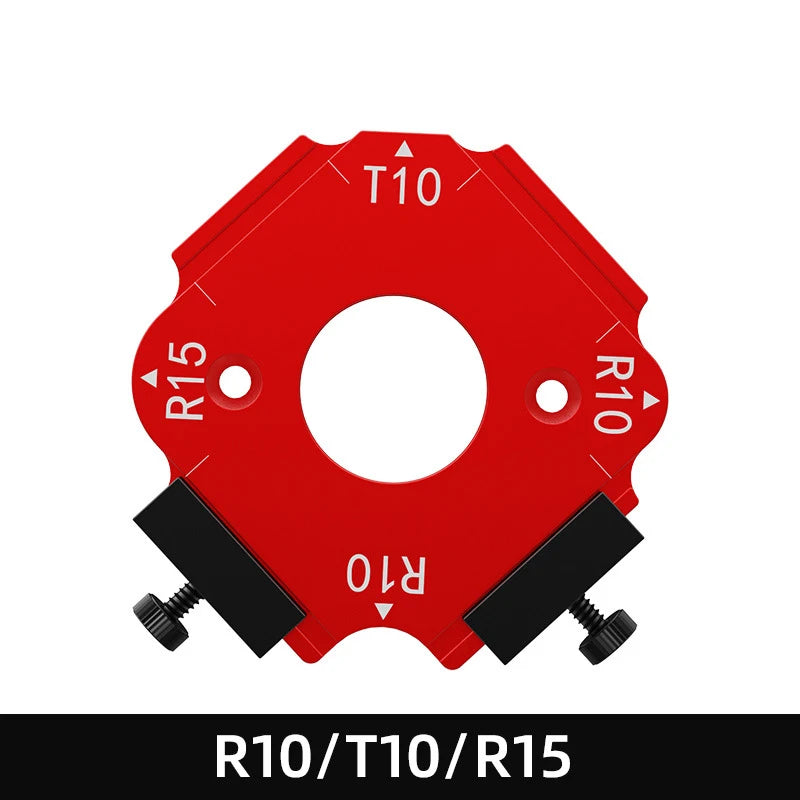

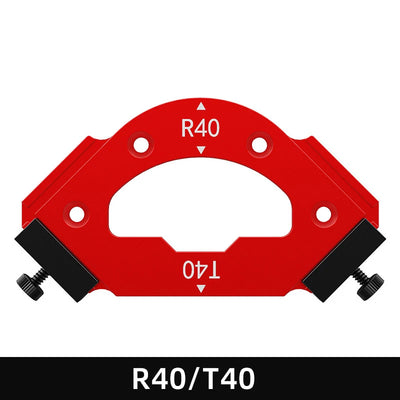

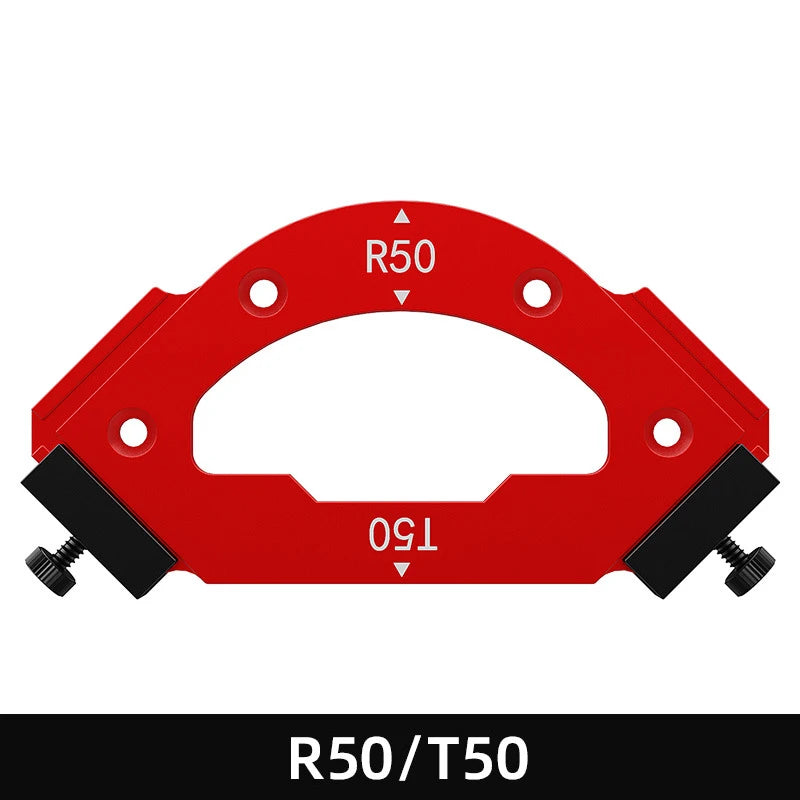

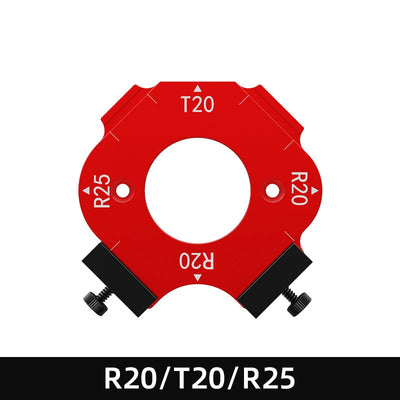

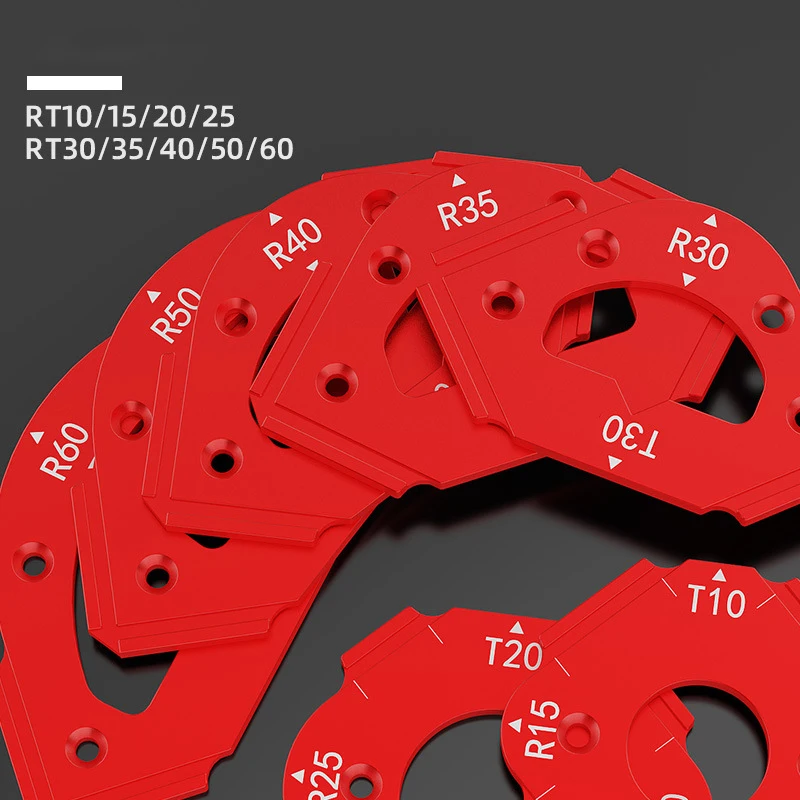

• Profile Radius Sizes Available (18 Options):

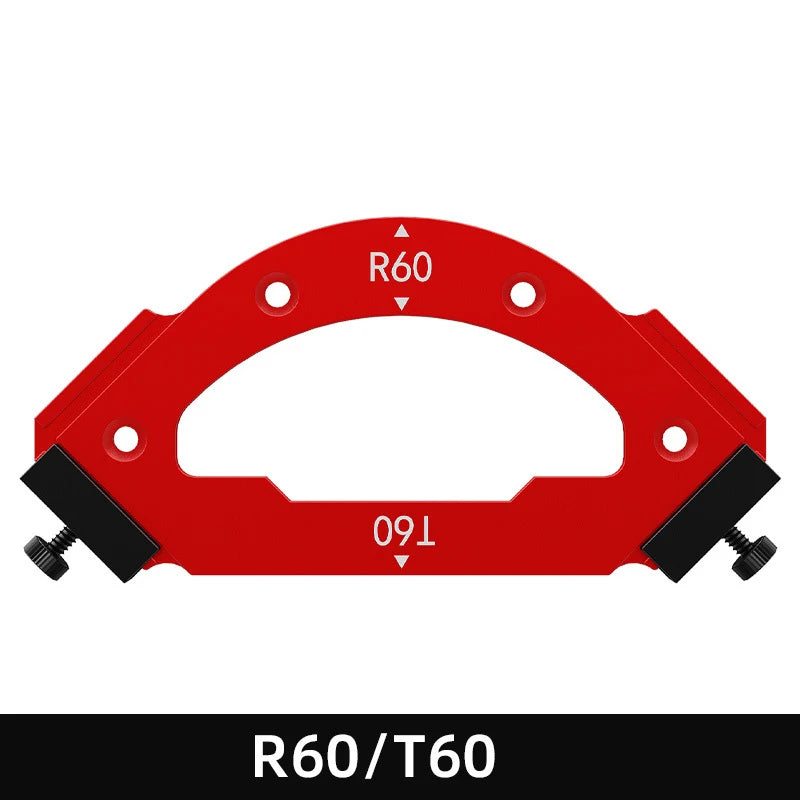

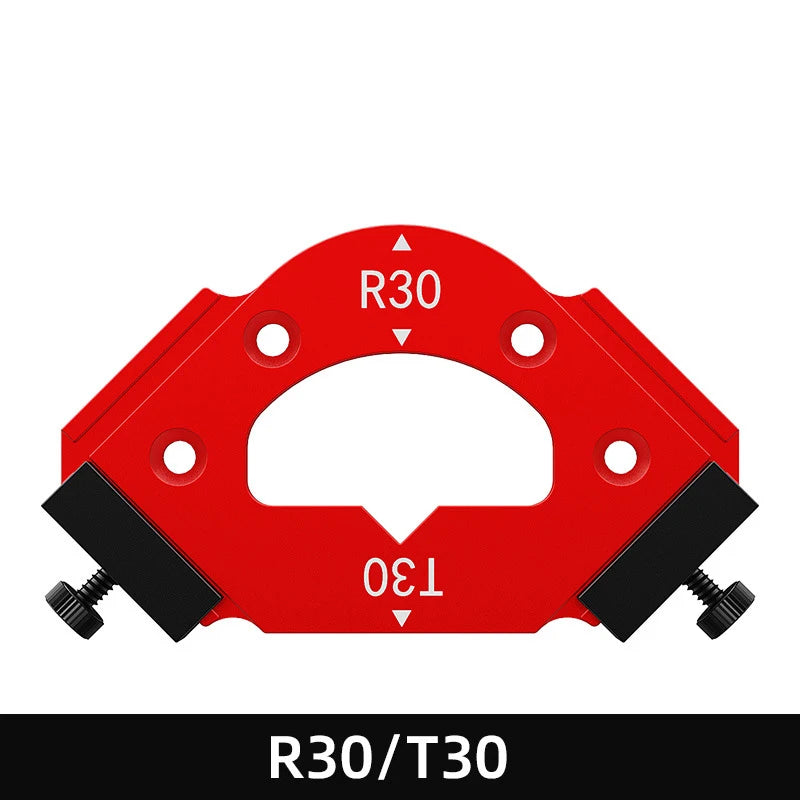

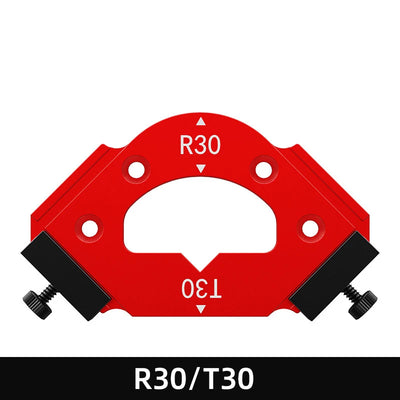

  • Outer Round Corners (R): R10, R15, R20, R25, R30, R35, R40, R50, R60

  • Oblique Angles / Bevel Tapers (T): T10, T20, T30, T35, T40, T50, T60

• Positioning System: Removable Corner Alignment Stops / Guide Pins

• Compatible Tools: Router Tables, Handheld Plunge Routers with Flush Trim Bits

• High-Concerned Chemical: None

🔧 Key Features

• Heavy-Duty 5mm Aluminum Plate: Rigid 5 mm thick aluminum alloy body resists deflection, flexing, and router bit bearing wear for smooth, consistent template tracing.

• 18 Precision Corner Profiles: Offers a full suite of outer round radii (R-series) and oblique chamfer angles (T-series) to create professional rounded corners on table tops and cabinet doors.

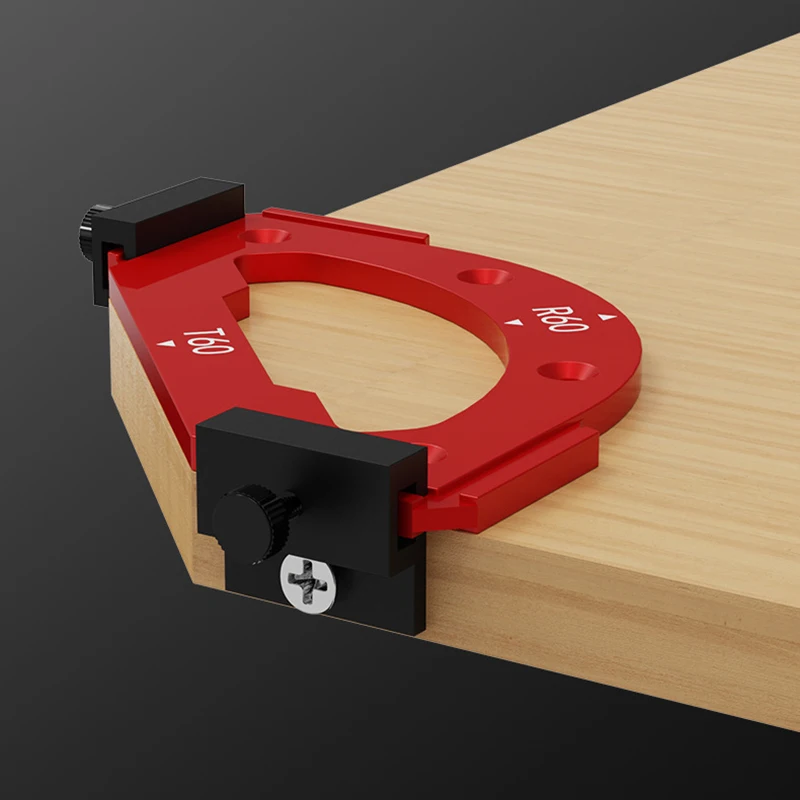

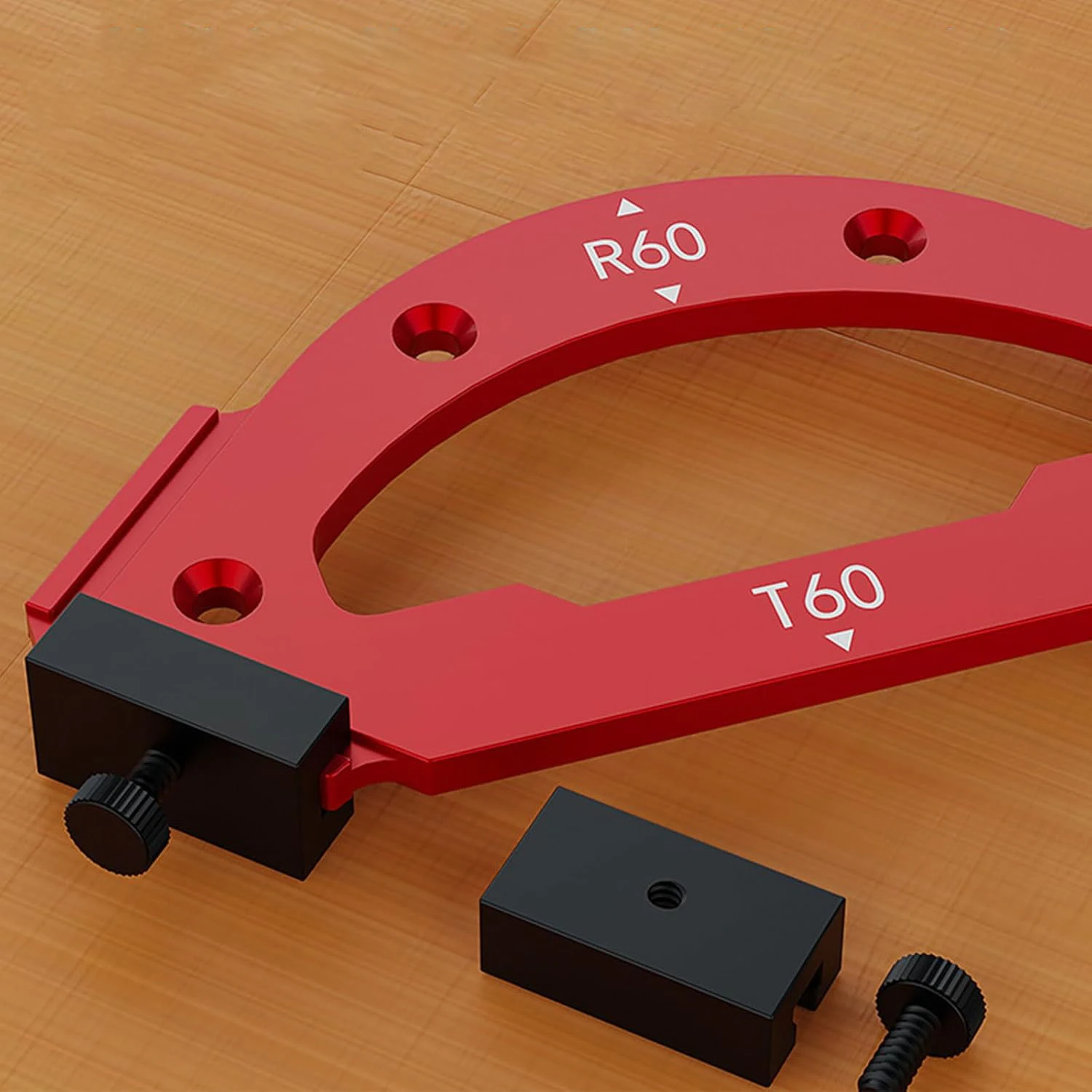

• Removable Edge Stops: Features quick-positioning alignment clips that reference flush against board corners for rapid, shift-free clamping.

• Laser-Etched Radius Markings: High-contrast size indicators etched directly into the metal ensure quick template identification at the workbench.

• Non-Marring Anodized Finish: Smooth aluminum surface glides under clamp pads and protects wood surfaces from scratches or metallic smudge marks.

🏠 Ideal Applications

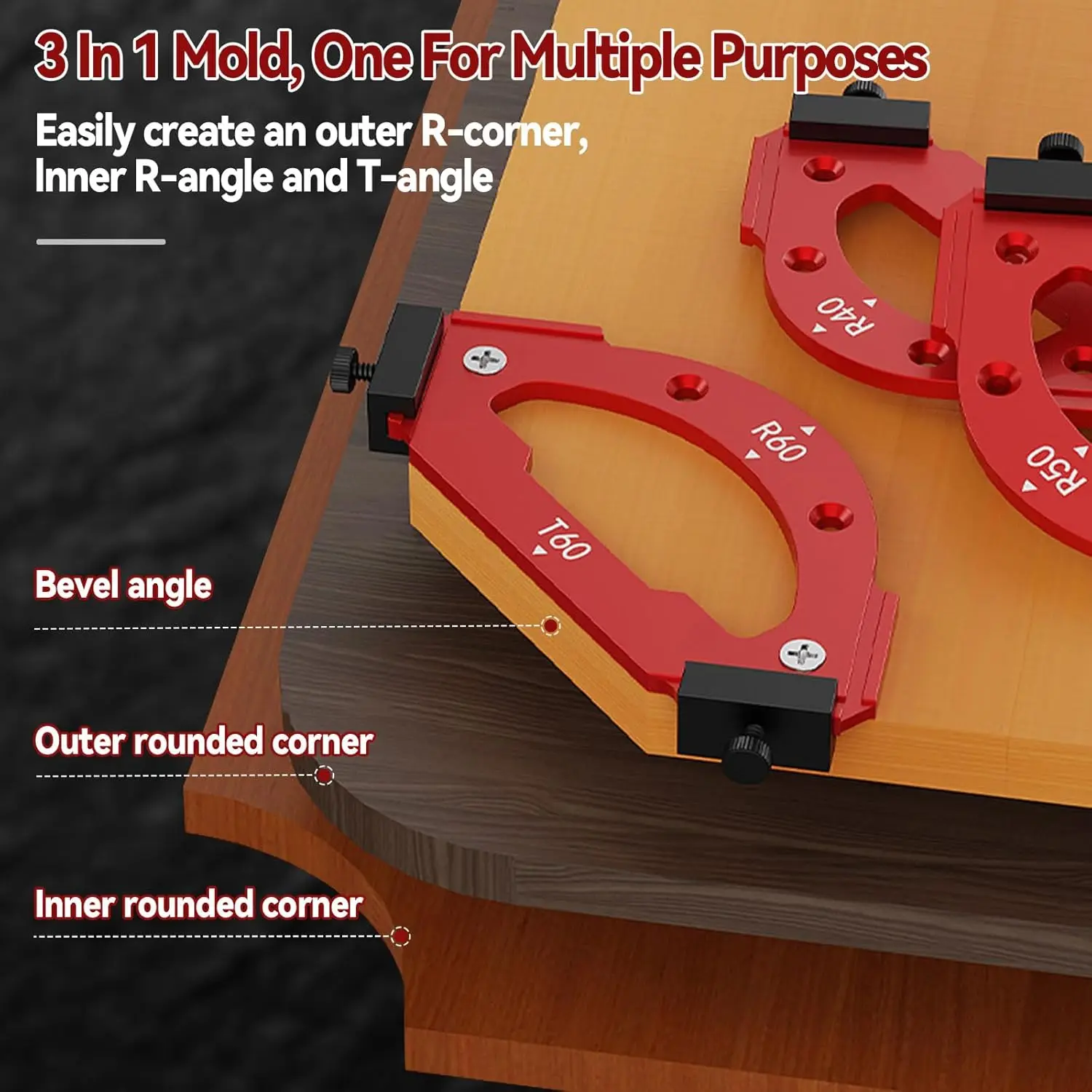

• Trimming Smooth Round Outer Corners on Wooden Table Tops, Desks, & Countertops

• Routing Uniform Chamfered / Beveled Edges on Cabinet Doors & Picture Frames

• Template-Guided Flush Trim Routing in Furniture Making & Custom Joinery

📦 Package Includes

• 1 × Aluminum Corner Radius Routing Template Jig (Selected Size Configuration)

• 1 × Set of Removable Alignment Edge Stops & Mounting Screws

⚠️ Important Usage Notes



1. Use a top-bearing flush trim router bit or bearing-guided pattern bit, ensuring the bearing rolls smoothly along the template edge, not the cutter flutes.

2. Securely clamp the template to the workpiece using track clamps or double-sided tape before starting the router to prevent template slippage during high-RPM cuts.
