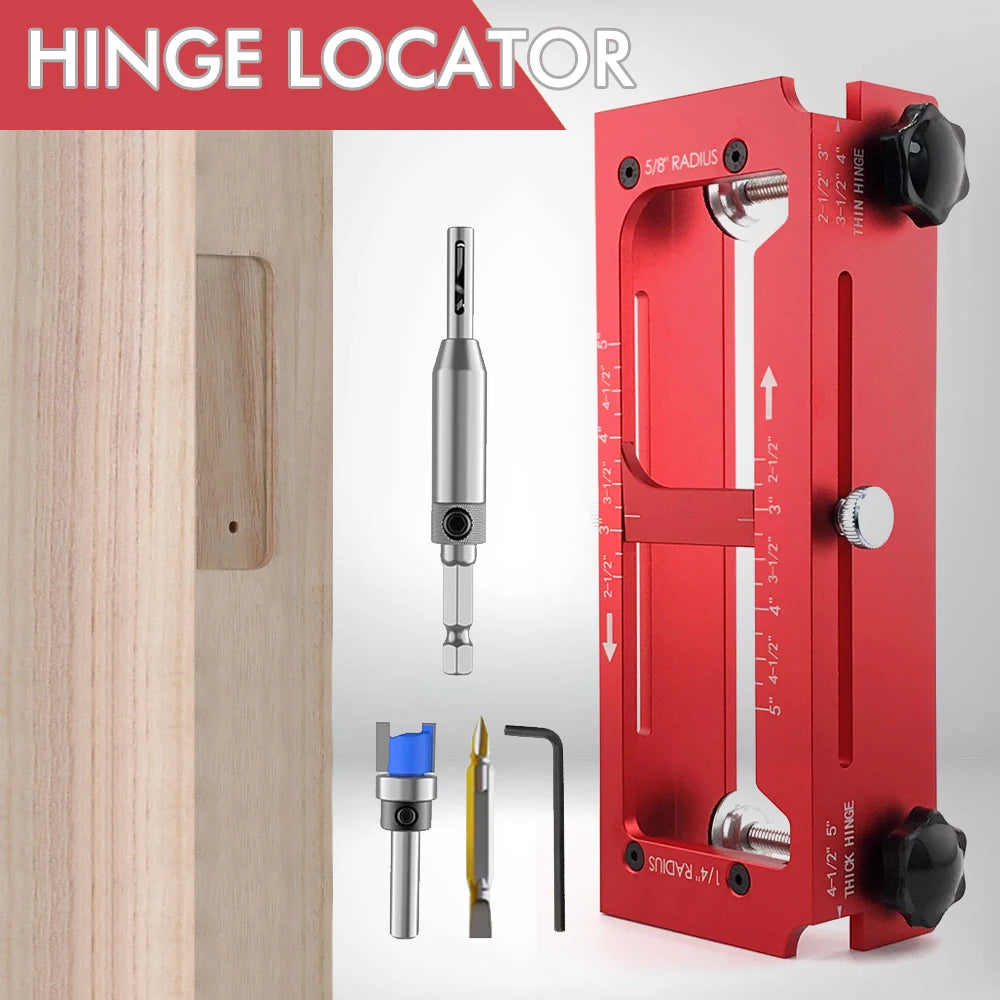

Aluminum Alloy Door Hinge Mortising Jig

📋 Specifications

• Product Type: Door Hinge Mortising Jig / Router Template Guide

• Material: Anodized Industrial Aluminum Alloy

• Application / DIY Supplies: Precision Woodworking & Door Installation

• Compatibility: Works with standard palm routers, compact trimmers, and plunge routers

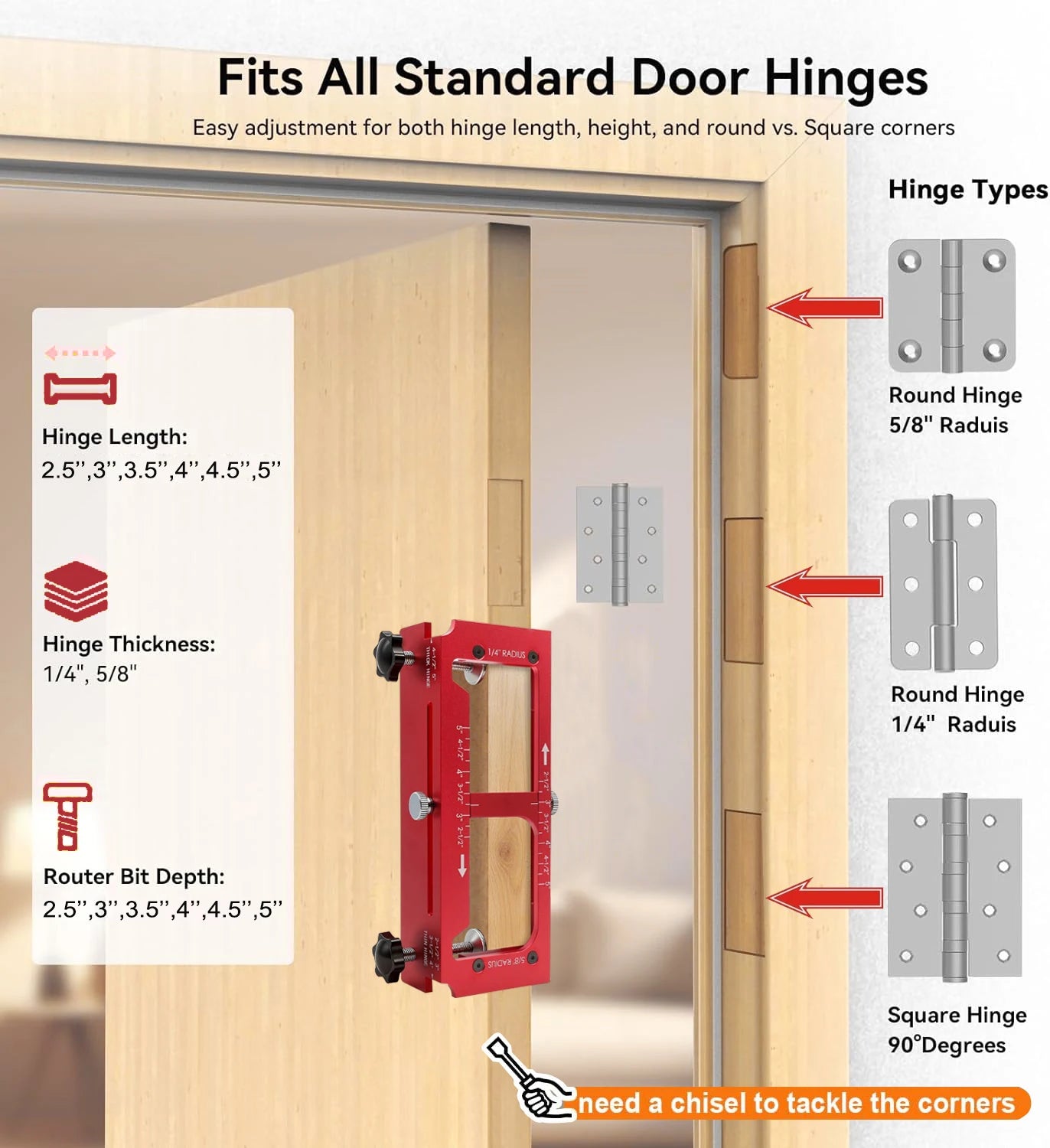

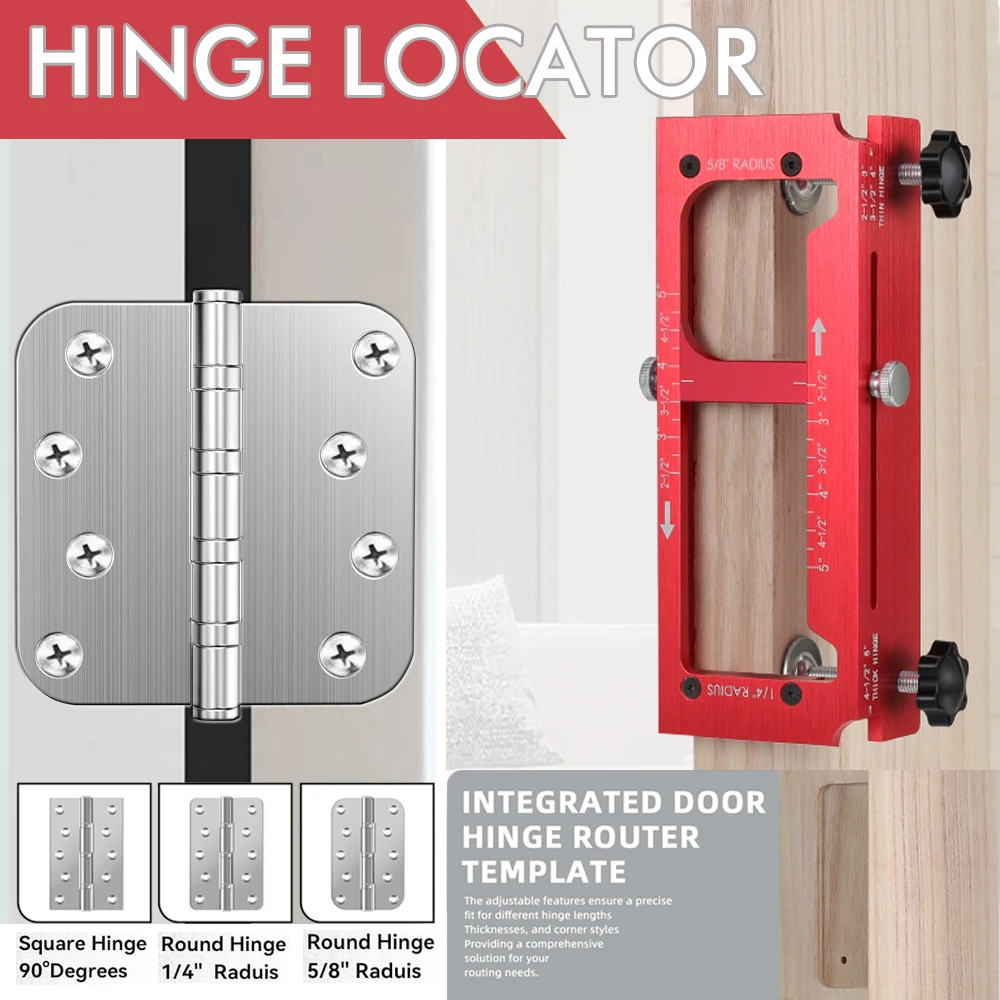

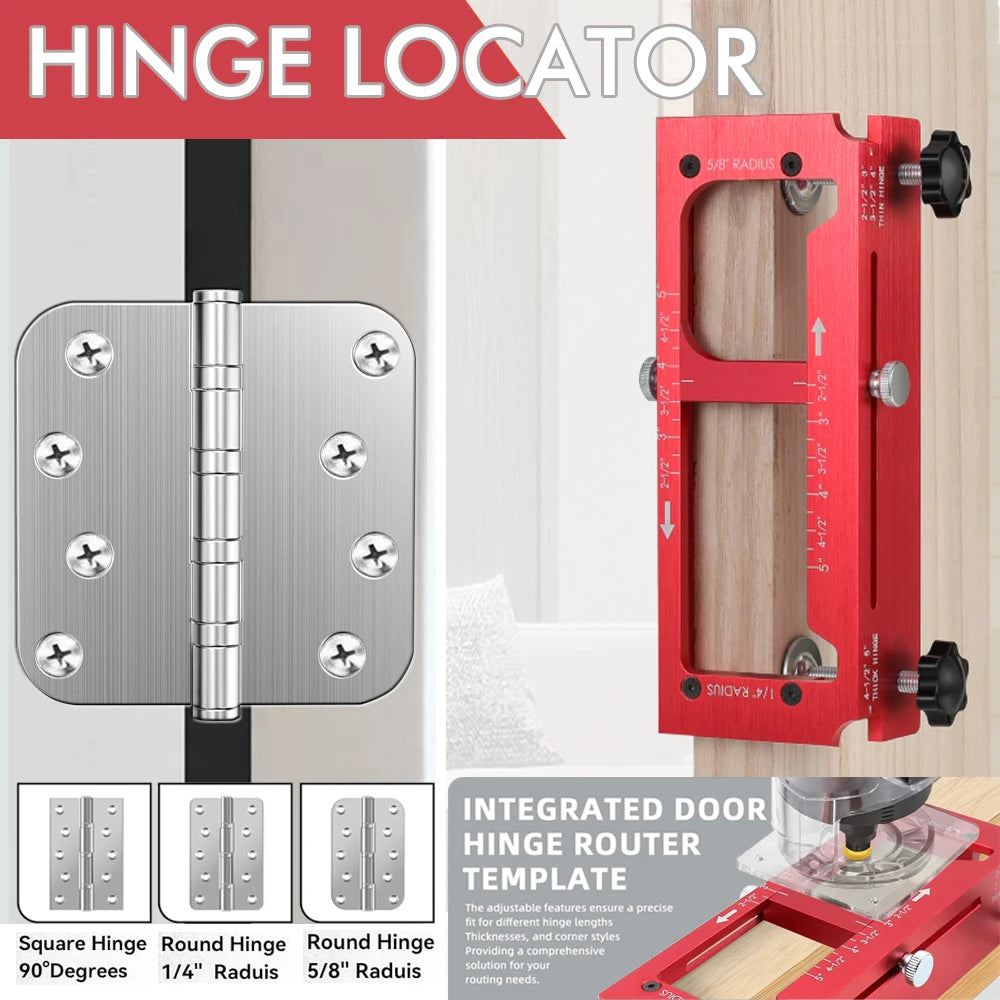

• Hinge Size Range: Adjustable for standard door hinge lengths and corner styles (square or rounded)

• Certifications: None

• High-Concerned Chemical: None

🔧 Key Features

• Precision Machined Aluminum Alloy: Crafted from rigid anodized aluminum to prevent bending, wear, or router bit gouging during high-speed routing.

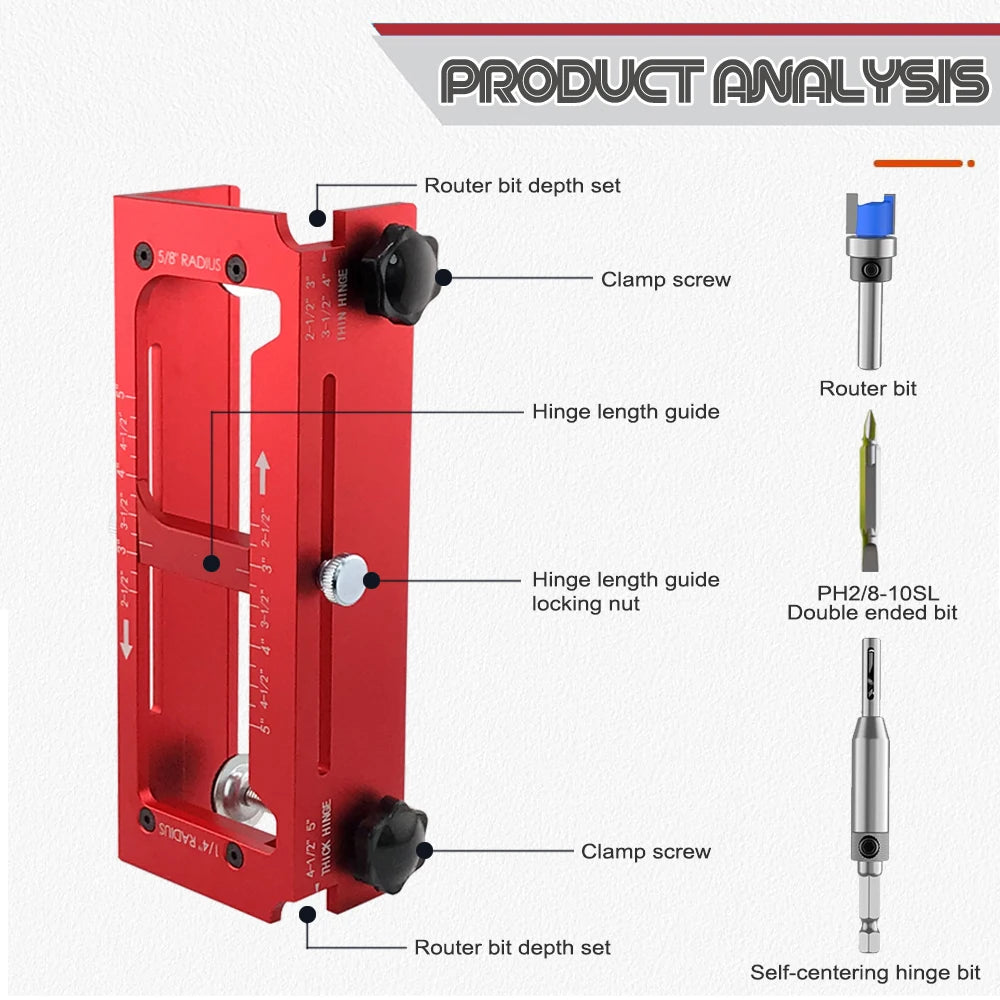

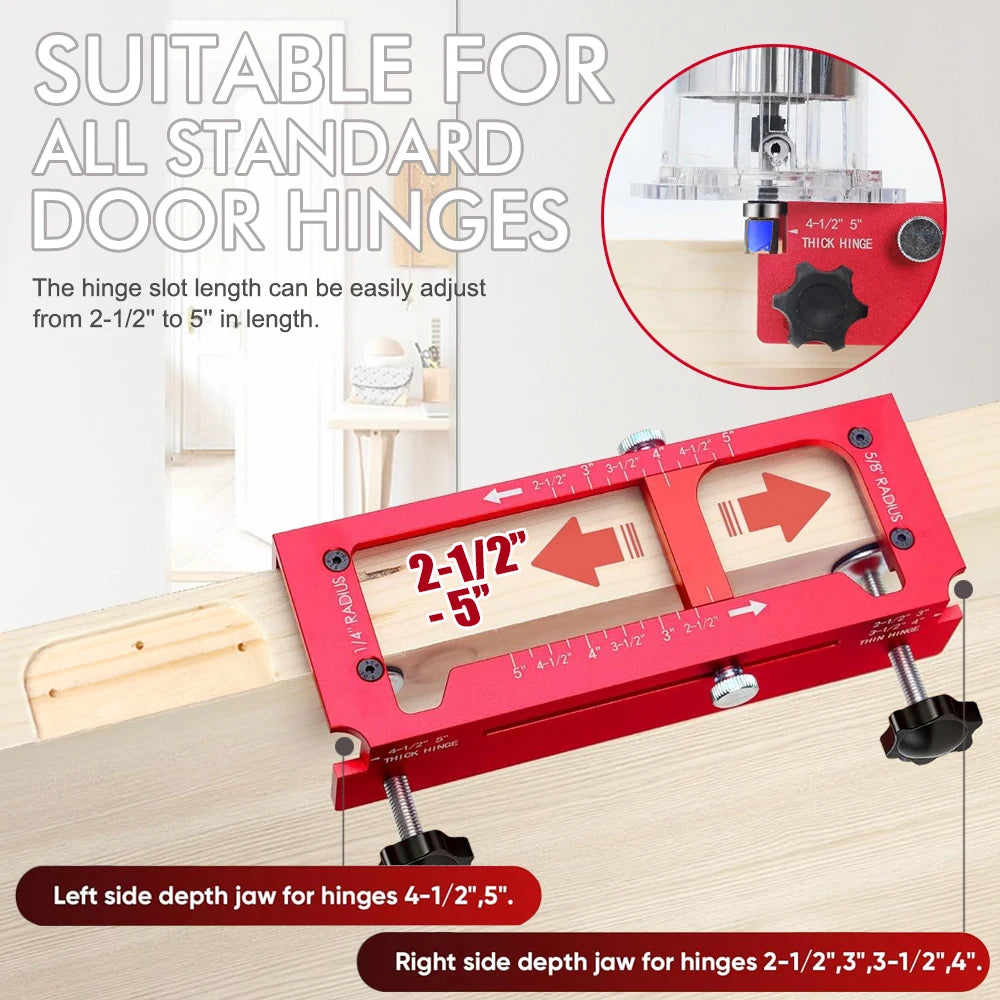

• Adjustable Length & Width Stops: Built-in sliding length positioners and width guides allow quick customization to match various hinge sizes and edge margins.

• Integrated Rubber Non-Slip Padding: Soft rubber grips and clamp zones securely clamp onto the door edge or frame without damaging delicate wooden finishes.

• Uniform Mortise Depth Control: Ensures flat, flush-recessed hinge cutouts for smooth door latching and precise architectural alignment.

• Compact & Portable Jobsite Tool: Lightweight, all-metal construction stands up to heavy jobsite use while fitting easily into a standard carpentry tool tote.

🏠 Ideal Applications

• Cutting Flush Hinge Recesses on Solid & Hollow-Core Wooden Doors

• Router Template Mortising for Door Frame Jambs & Strike Plates

• Professional Carpentry, Interior Door Upgrades, & Residential Remodeling

📦 Package Includes

• 1 × Aluminum Alloy Door Hinge Mortising Jig Frame

• 1 × Router Guide Bushing / Depth Stop Collar Assembly

• 1 × Mounting & Adjustment Hardware Set

⚠️ Important Usage Notes



1. Set your router bit depth equal to the exact thickness of the door hinge leaf plus the jig plate thickness before routing.

2. Ensure all adjustment locking screws are tightened securely to the jig body prior to turning on your power trimmer to prevent drift.
