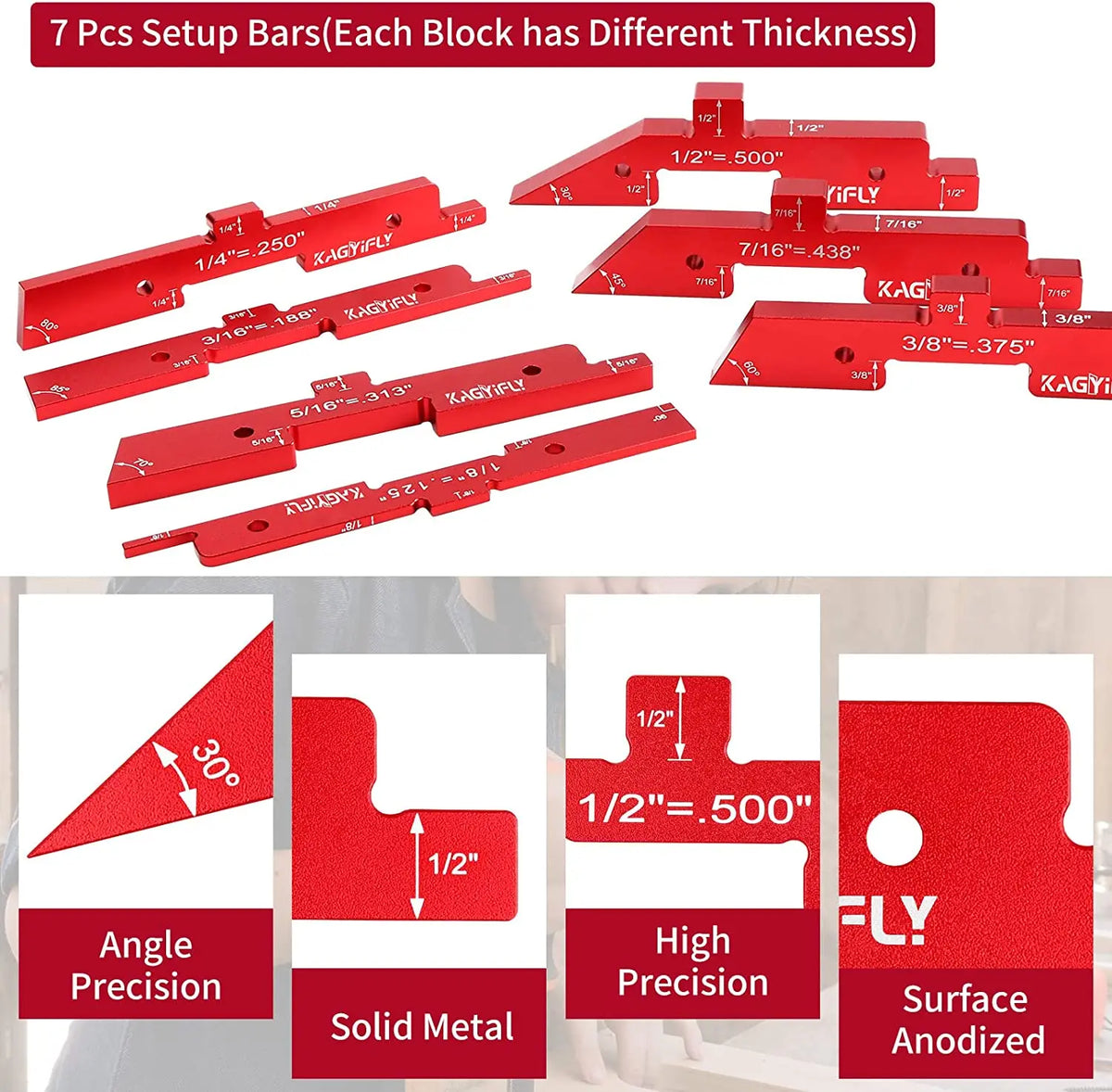

7-Piece Precision Setup Blocks for Router & Table Saw

📋 Specifications

• Primary Material: Anodized Aluminum-Copper Alloy

• Set Size: 7 Precision Setup Blocks + Storage Case

• Measurement Standard: Imperial (Inch Sizes)

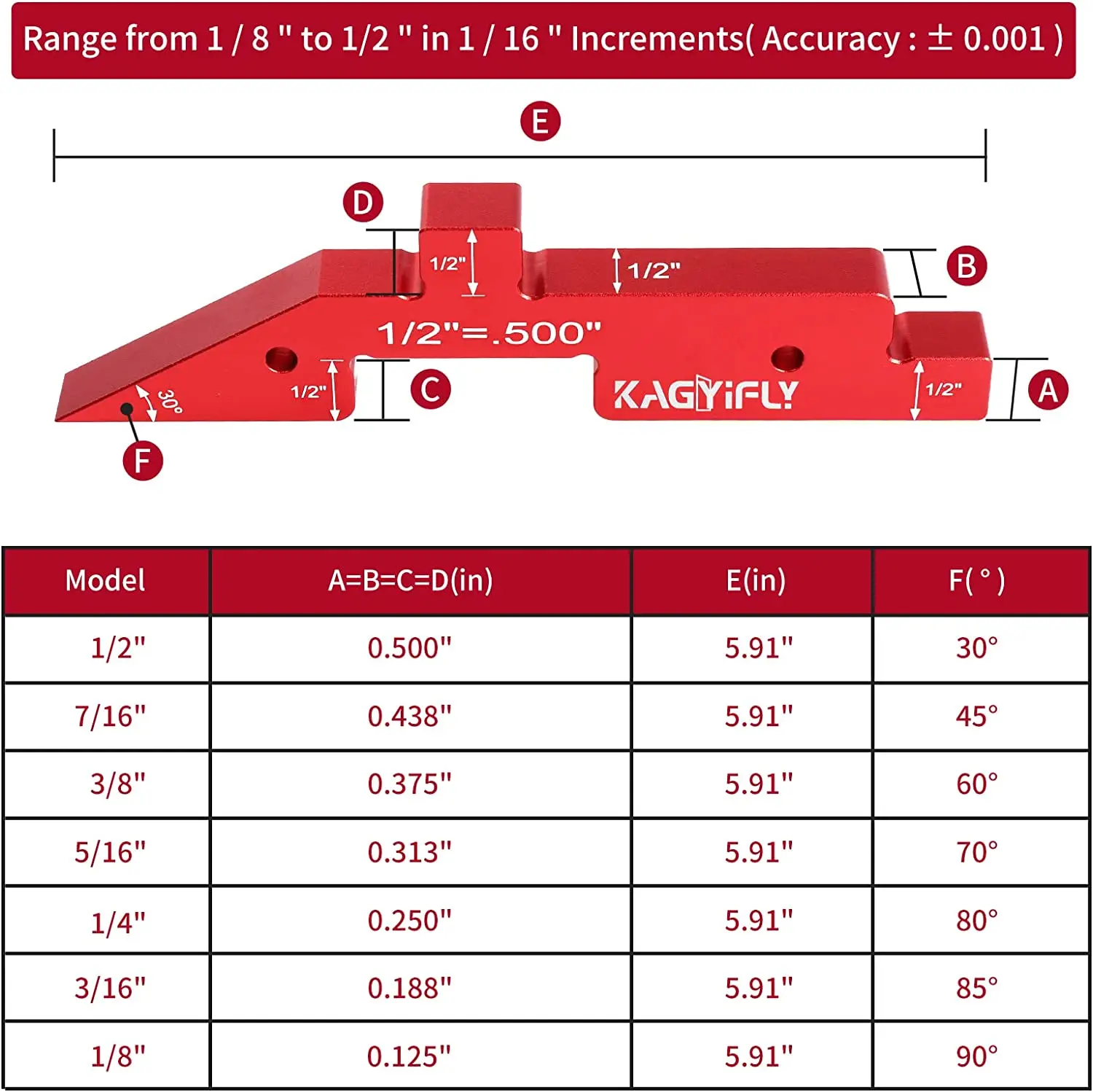

• Block Dimensions Included: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", and 1/2"

• Functional Versatility: 4-in-1 Gauge (Height Gauge, Depth Gauge, Square Stack Gauge, & Angle Gauge)

• Finish / Labeling: Red Anodized Finish with Laser-Engraved Markings (100% Etched)

• Target Tools: Table Saws, Router Tables, Band Saws, Drill Presses, & Rip Fences

• High-Concerned Chemical: None

🔧 Key Features

• 4-in-1 Multi-Gauge Functionality: Combines traditional depth and height gauges into a single system; works as a height gauge, depth gauge, square stack gauge, and reference angle gauge.

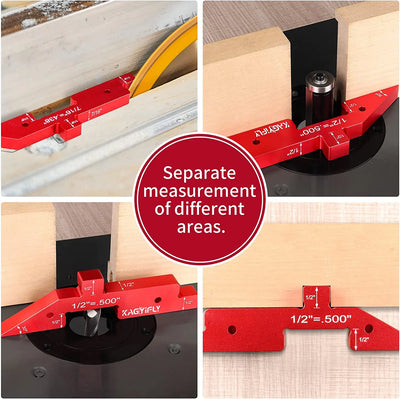

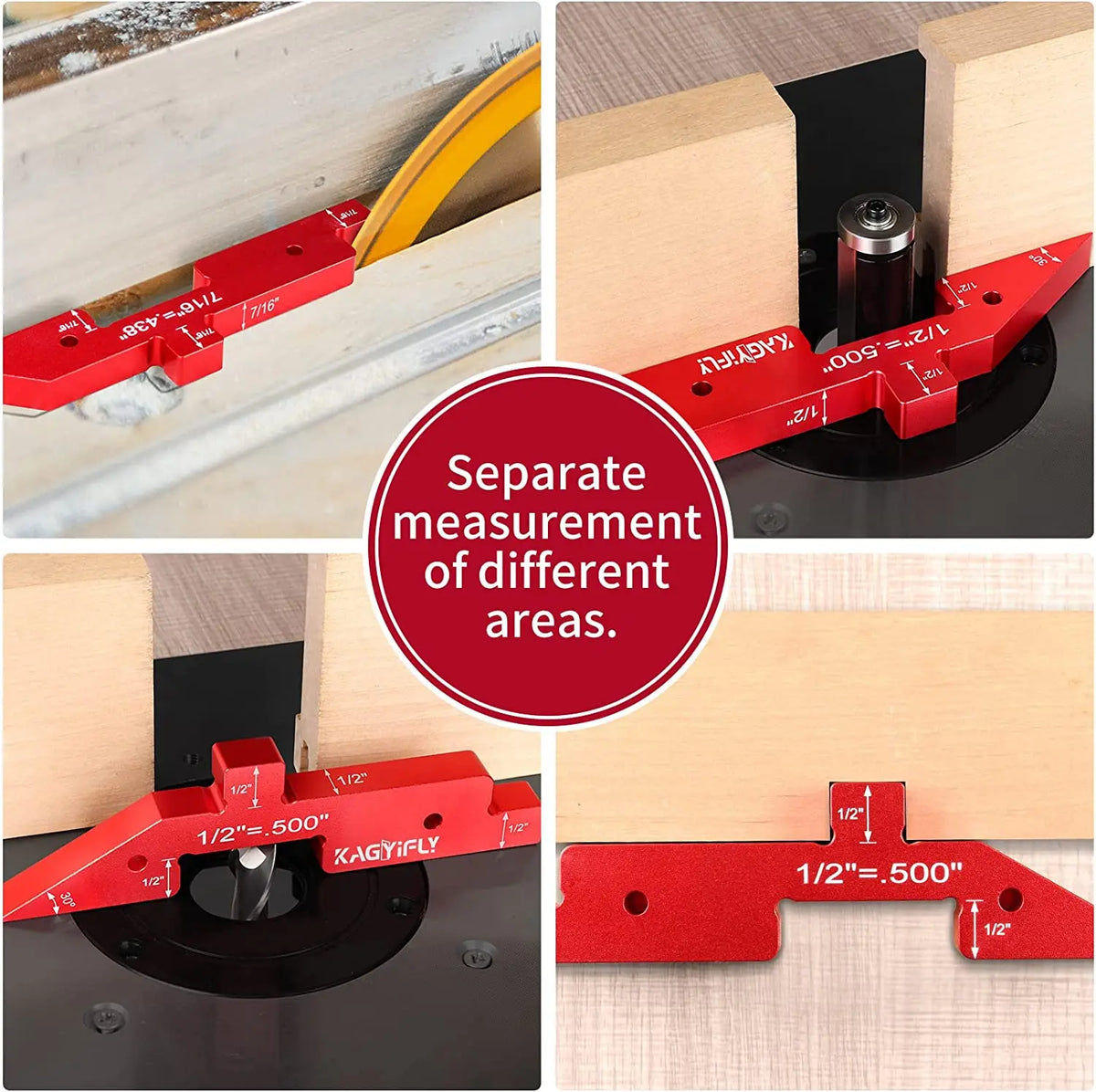

• Uniform Multi-Axis Dimensions: Each individual block features matching thickness, height, and depth dimensions, allowing accurate measurements along any edge or face.

• Soft Aluminum-Copper Alloy: Smooth anodized metal protects hands and prevents chipping or dulling sensitive carbide router bits and saw blade teeth during setup.

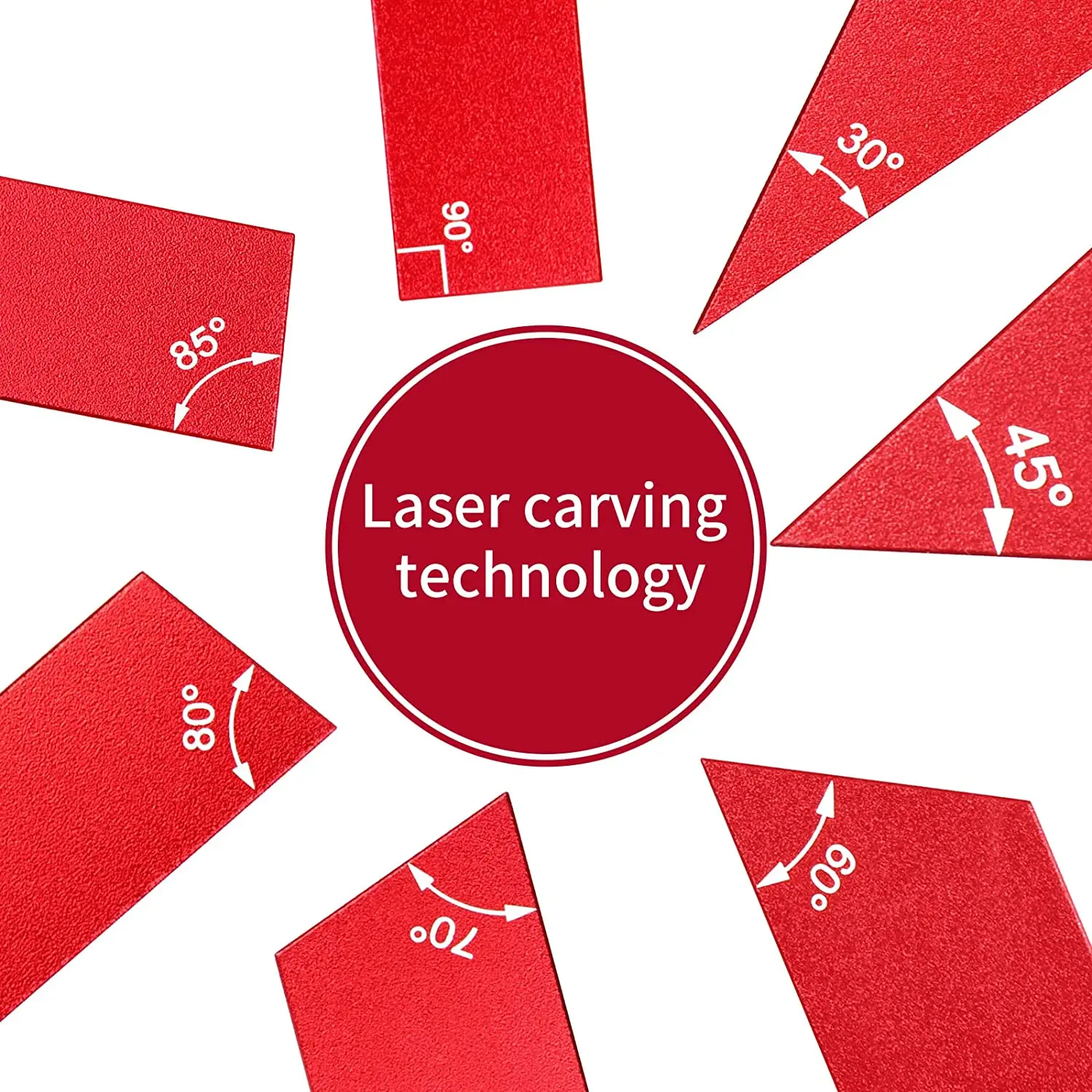

• Laser-Etched Markings: High-contrast laser-carved labels will not fade, rub off, or smudge over time, ensuring effortless size identification in shop environments.

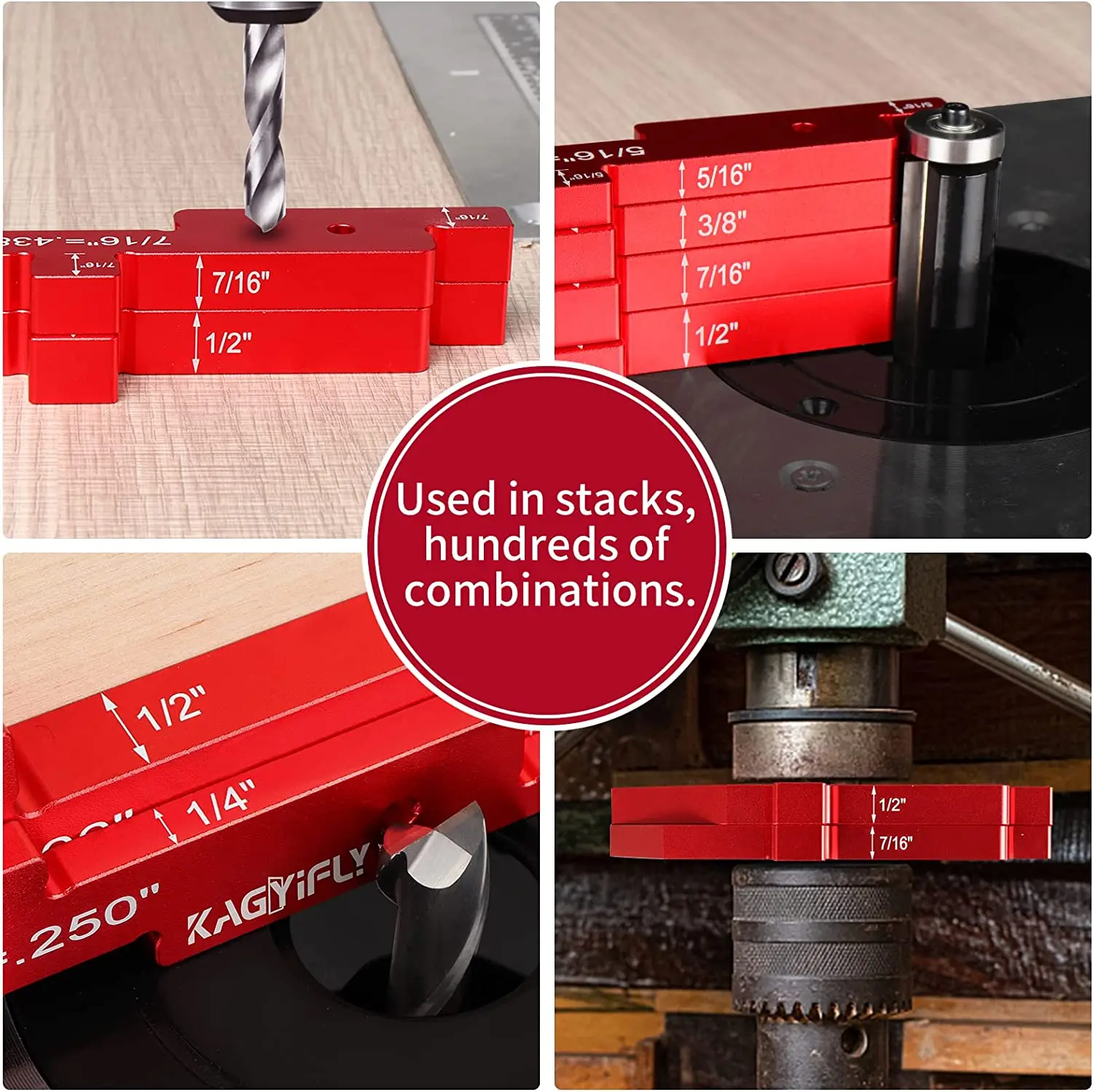

• Infinite Stackable Combinations: Blocks can be used individually or stacked together to achieve hundreds of precise custom heights and fence distances.

🏠 Ideal Applications

• Calibrating Router Bit Heights & Fence Distance Offsets

• Setting Table Saw Blade Heights & Dado Stack Cut Depths

• Dialing in Drill Press Depth Stops & Band Saw Rip Fence Positions

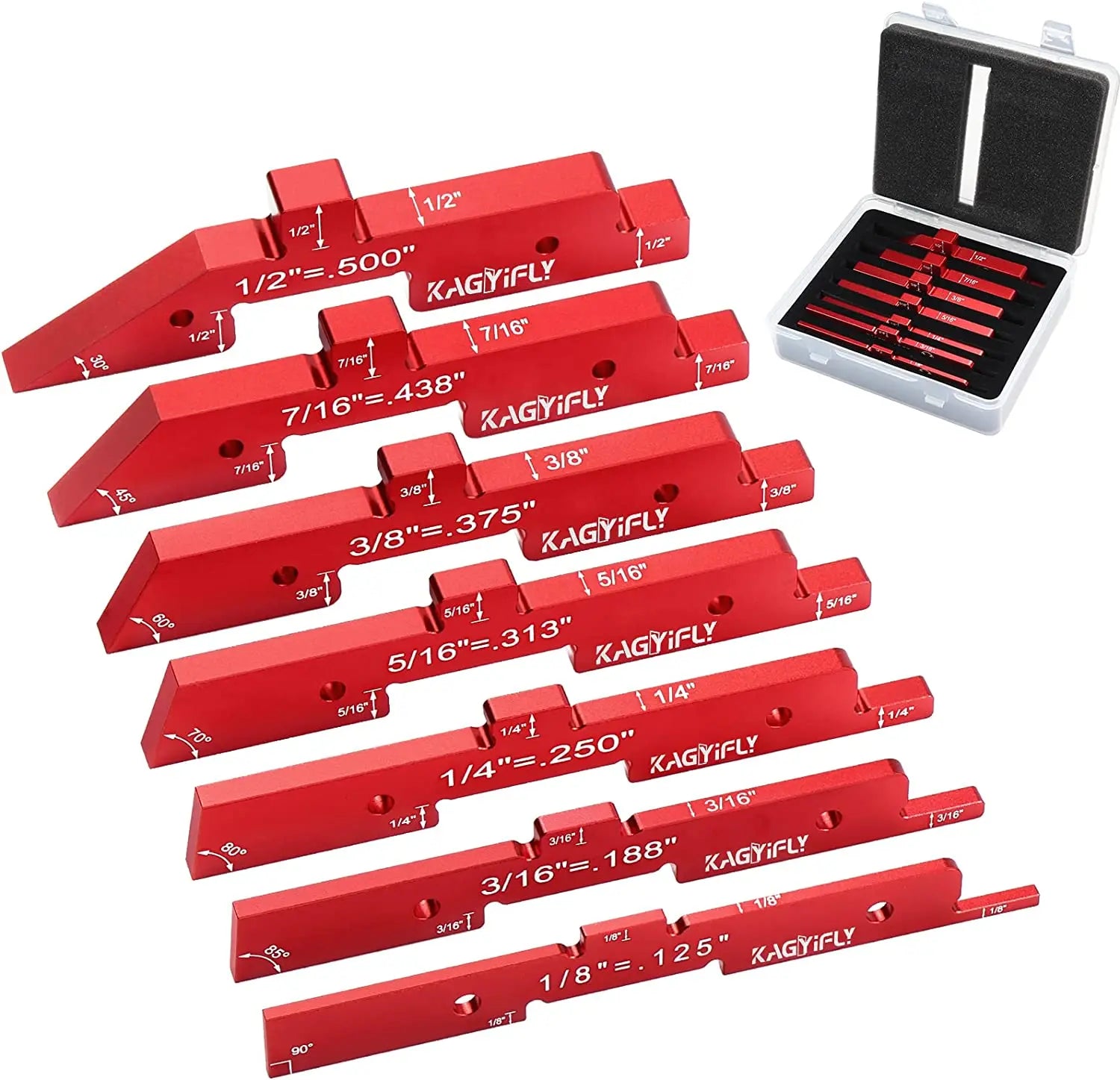

📦 Package Includes

• 1 × 1/8" Setup Block

• 1 × 3/16" Setup Block

• 1 × 1/4" Setup Block

• 1 × 5/16" Setup Block

• 1 × 3/8" Setup Block

• 1 × 7/16" Setup Block

• 1 × 1/2" Setup Block

• 1 × Protective Storage Case

⚠️ Important Usage Notes



1. Ensure equipment is completely disconnected from power before resting metal setup blocks directly against saw blades or router bits.

2. Store blocks inside the provided case between uses to keep reference faces free from burrs, dust buildup, and accidental impact dents.
