2.5T Air Hydraulic Toe Jack Lift

📋 Specifications

• Product Type: Heavy-Duty Low-Profile Air/Hydraulic Toe Jack

• Toe Lifting Capacity: 2.5 Tons (5,500 lbs / 2,500 kg)

• Top Head Lifting Capacity: 5.0 Tons (11,000 lbs / 5,000 kg)

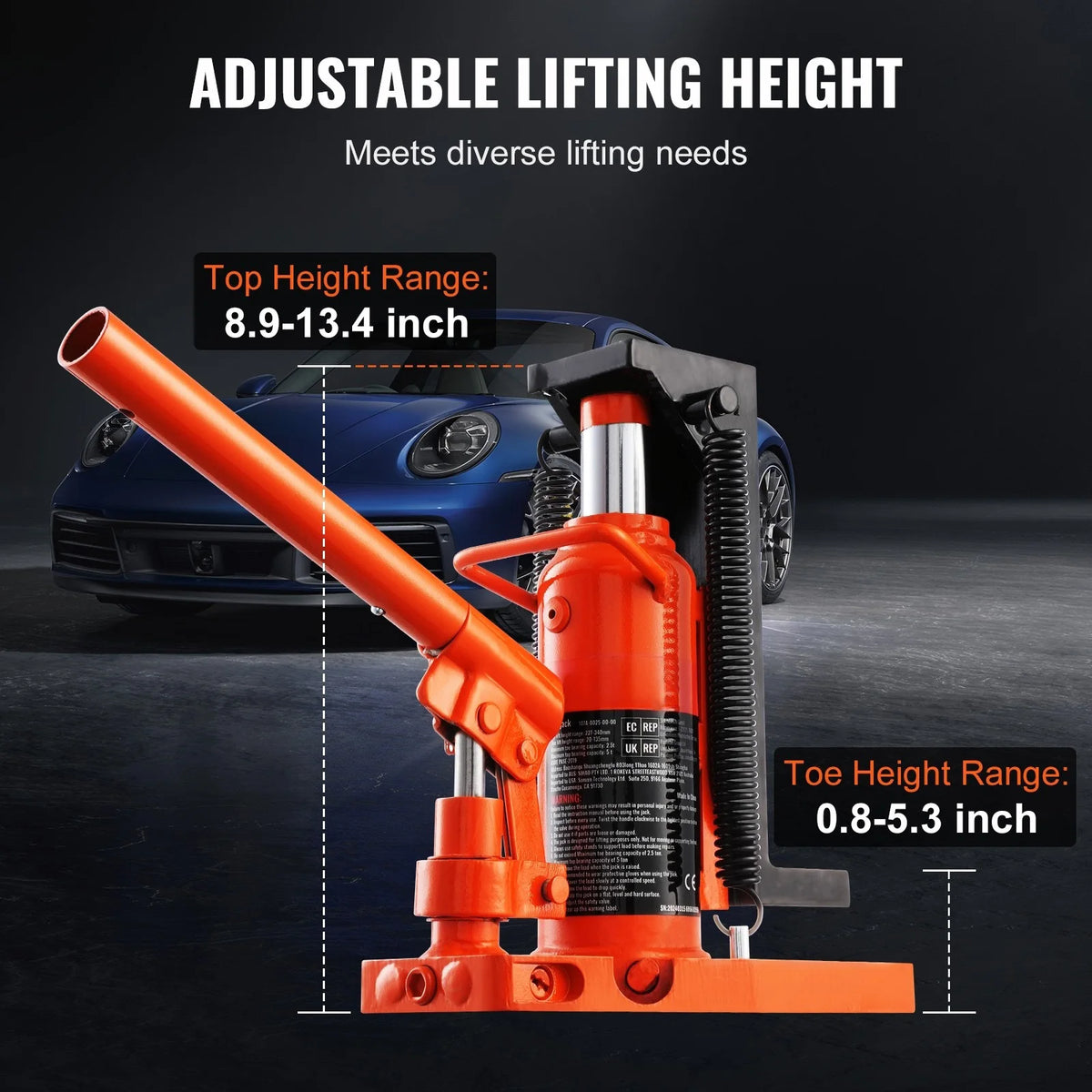

• Toe Lifting Height Range: 0.8" to 5.3" (20 mm to 135 mm) Ultra-Low Clearance

• Top Head Lifting Height Range: 8.9" to 13.4" (227 mm to 340 mm)

• Structural Frame: Fully Seamless Welded Heavy-Gauge Steel Construction

• Protective Coating: Triple-Layer Rust & Chemical-Resistant External Finish

• Internal Components: Wear-Resistant Main Shaft, Hydraulic Bearings, & Steel Ring Seals

• Safety System: Integrated Hydraulic Overload Protection Valve

• Handle Design: 3-Stage Collapsible / Detachable Extended Leverage Handle

• Return Mechanism: High-Tension Dual Heavy-Duty Compression Springs

• High-Concerned Chemical: None

🔧 Key Features

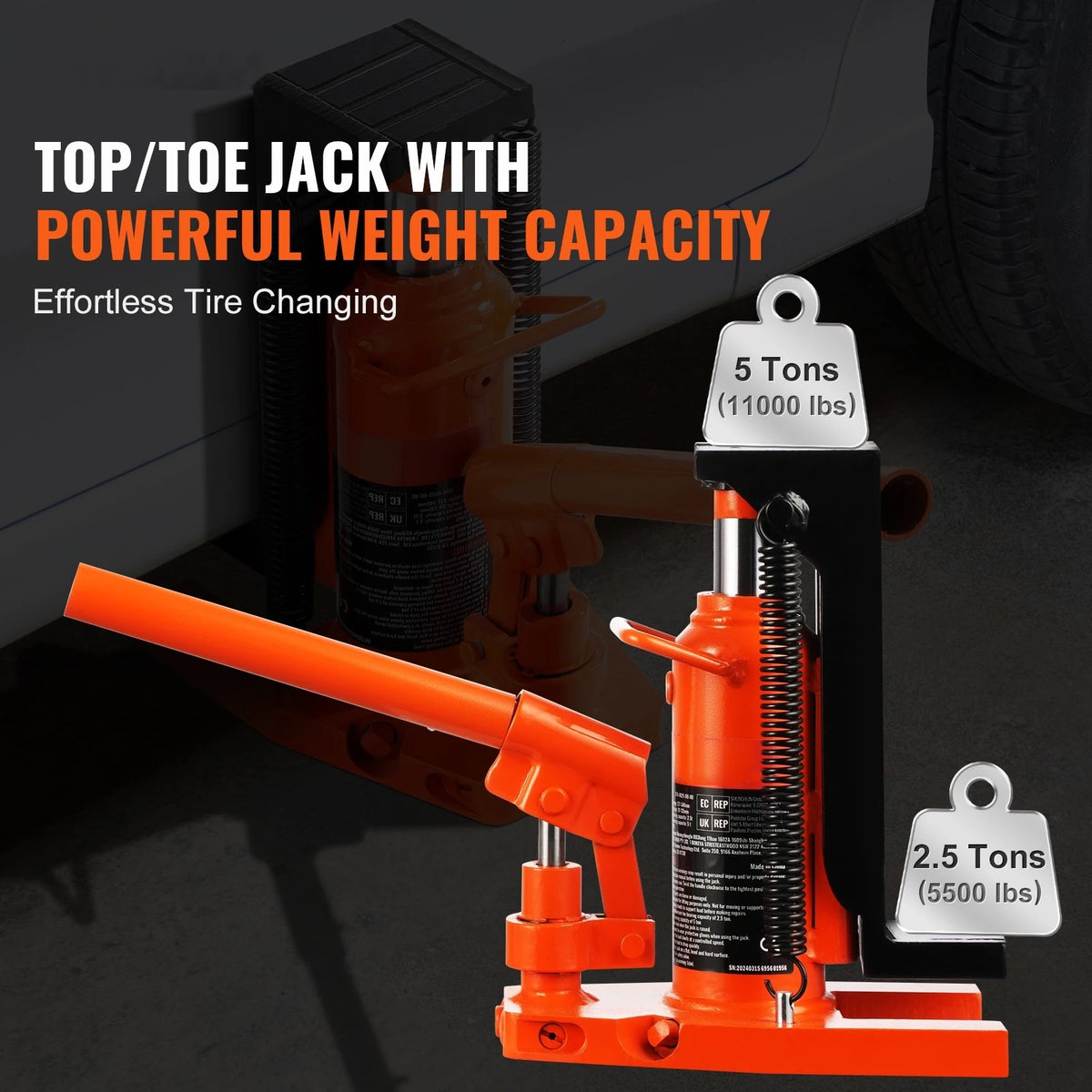

• Dual-Lifting Points (Top & Toe): Lift heavy industrial loads using either the 2.5-ton low-clearance toe or the 5-ton top head platform depending on access height.

• 0.8" Ultra-Low Toe Clearance: Slips under machinery, heavy containers, and low-slung chassis with as little as 0.8 inches (20 mm) of ground clearance.

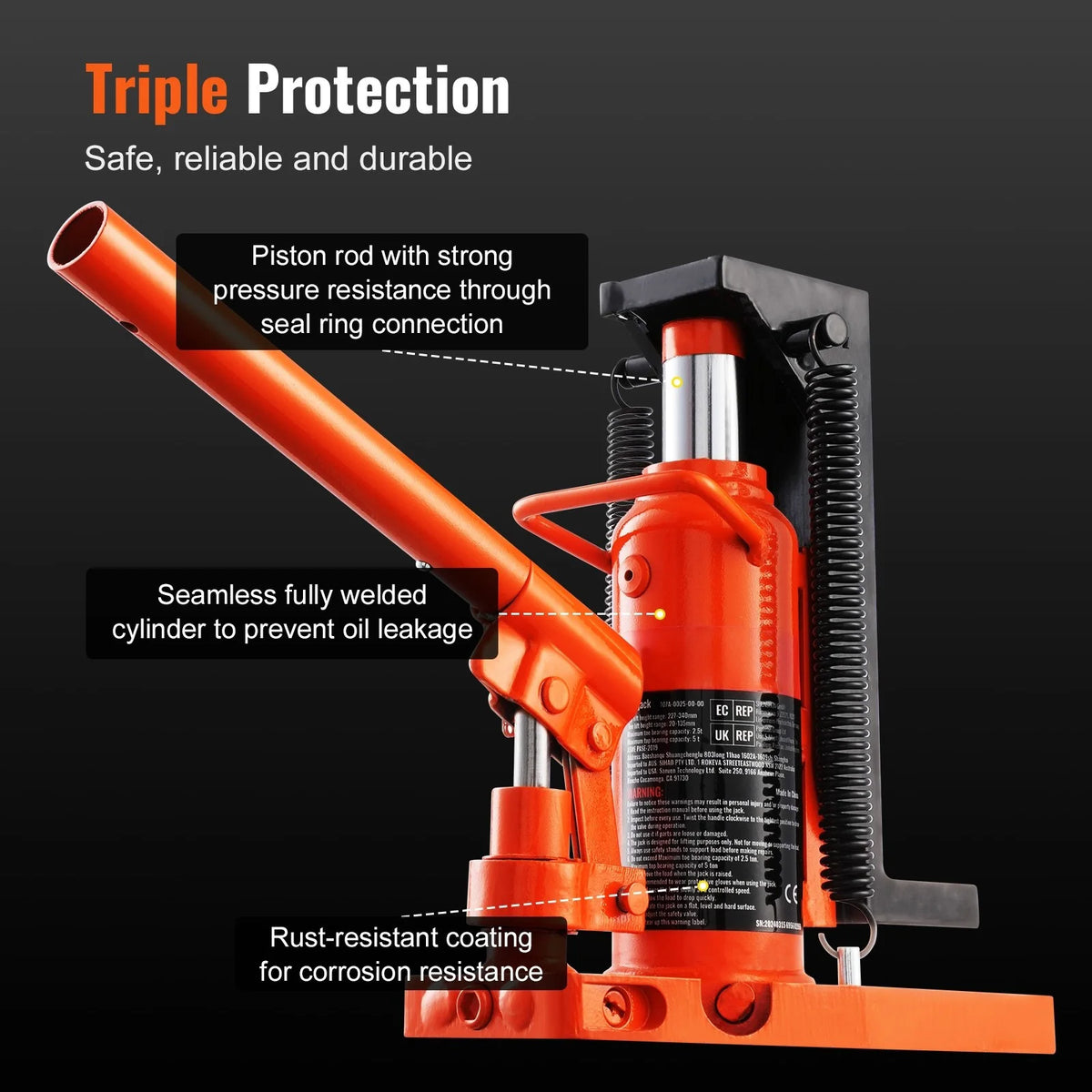

• Leak-Proof Seamless Welded Body: Fully welded steel hydraulic cylinder structure eliminates bolt-on seam leaks and resists internal pressure spikes.

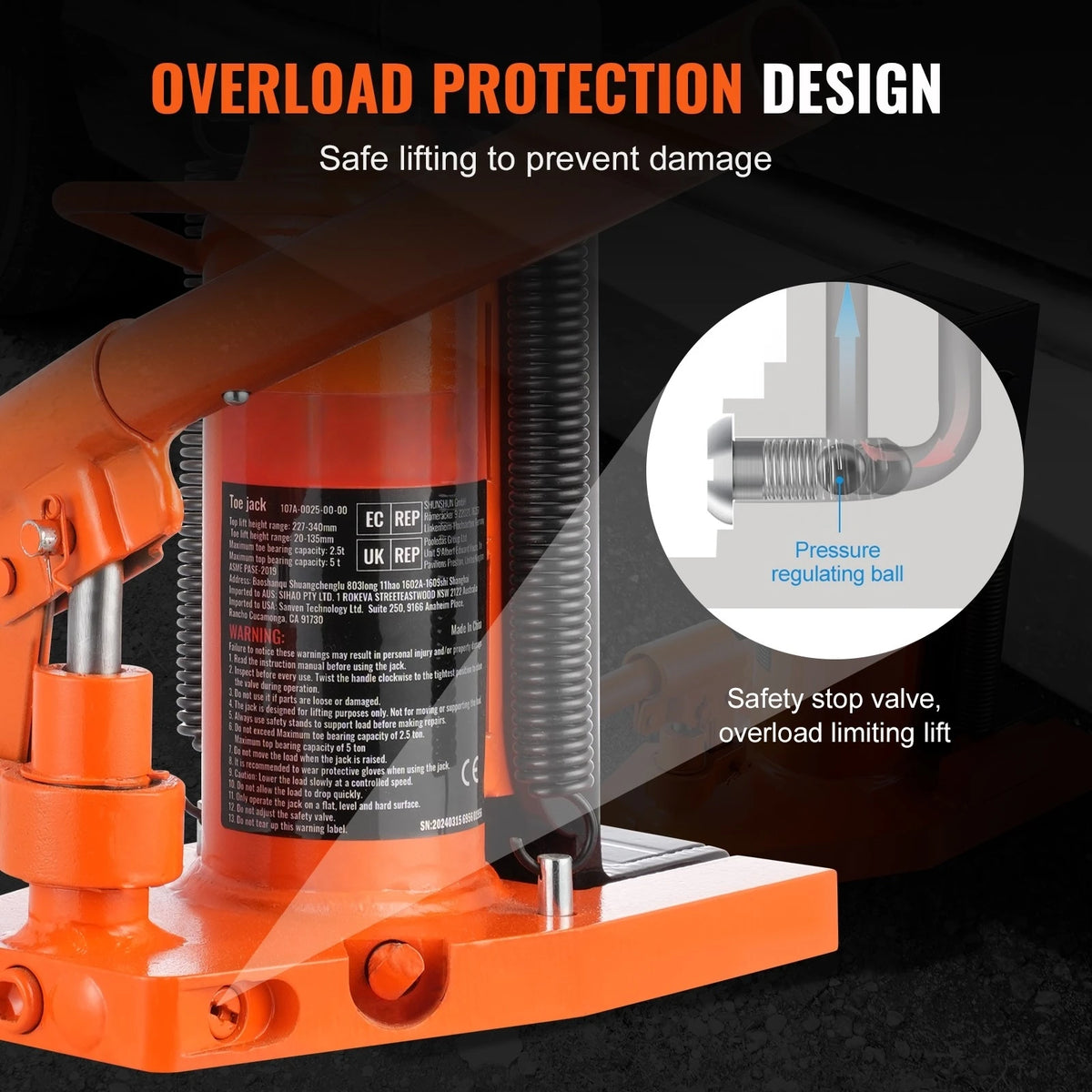

• Overload Safety Valve & Dual Springs: Integrated bypass valve prevents lifting beyond rated capacity, while heavy-duty compression springs ensure controlled, smooth retraction.

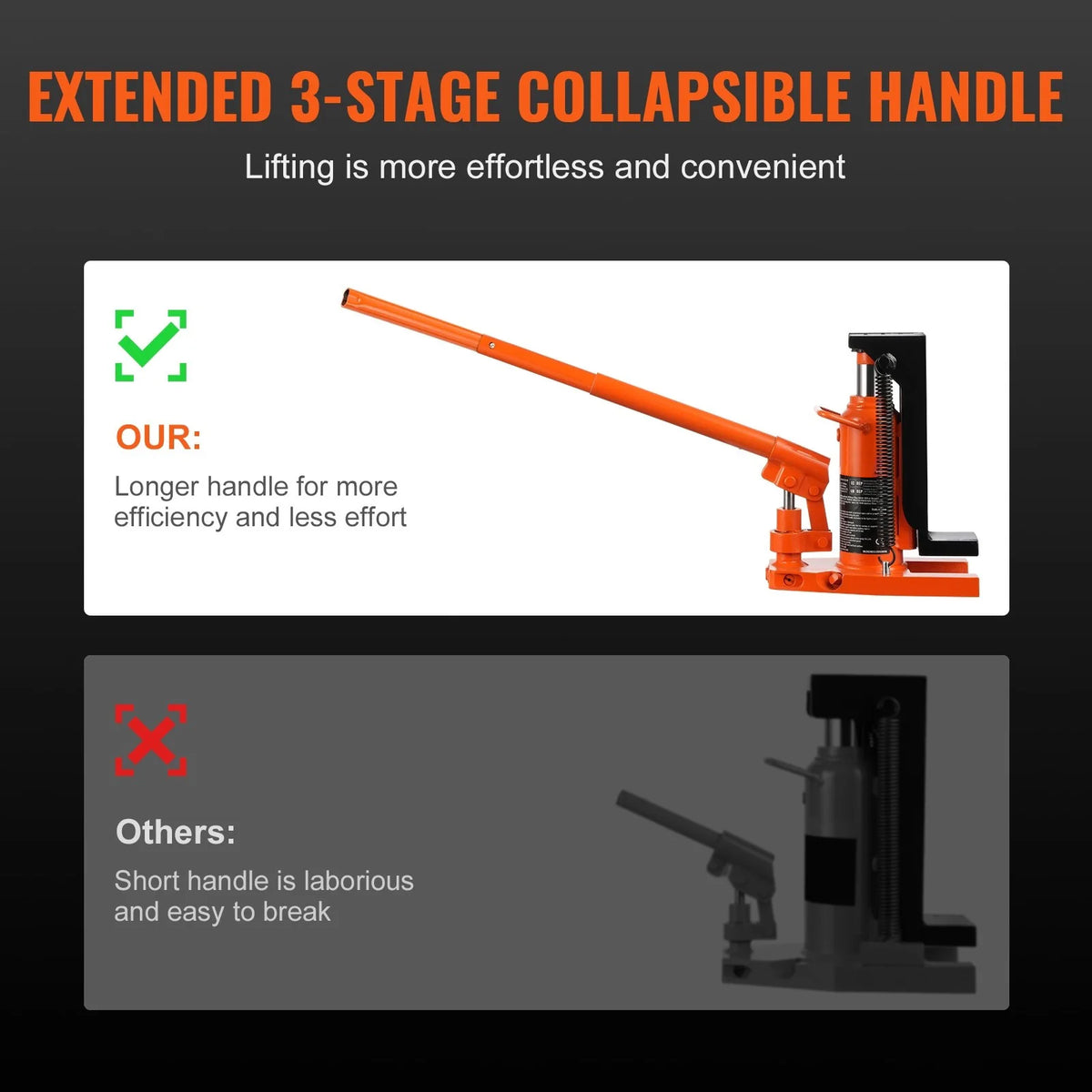

• 3-Stage Detachable Handle: Configurable extended handle maximizes leverage to reduce manual pump effort and collapses compactly for storage.

🏠 Ideal Applications

• Rigging, Moving, & Leveling Heavy Industrial Machinery, CNC Equipment, & Generators

• Maintenance & Repair for Low-Profile Commercial Vehicles, Forklifts, & Trailers

• Bridge Construction, Structural Steel Alignment, & Shipping Container Positioning

📦 Package Includes

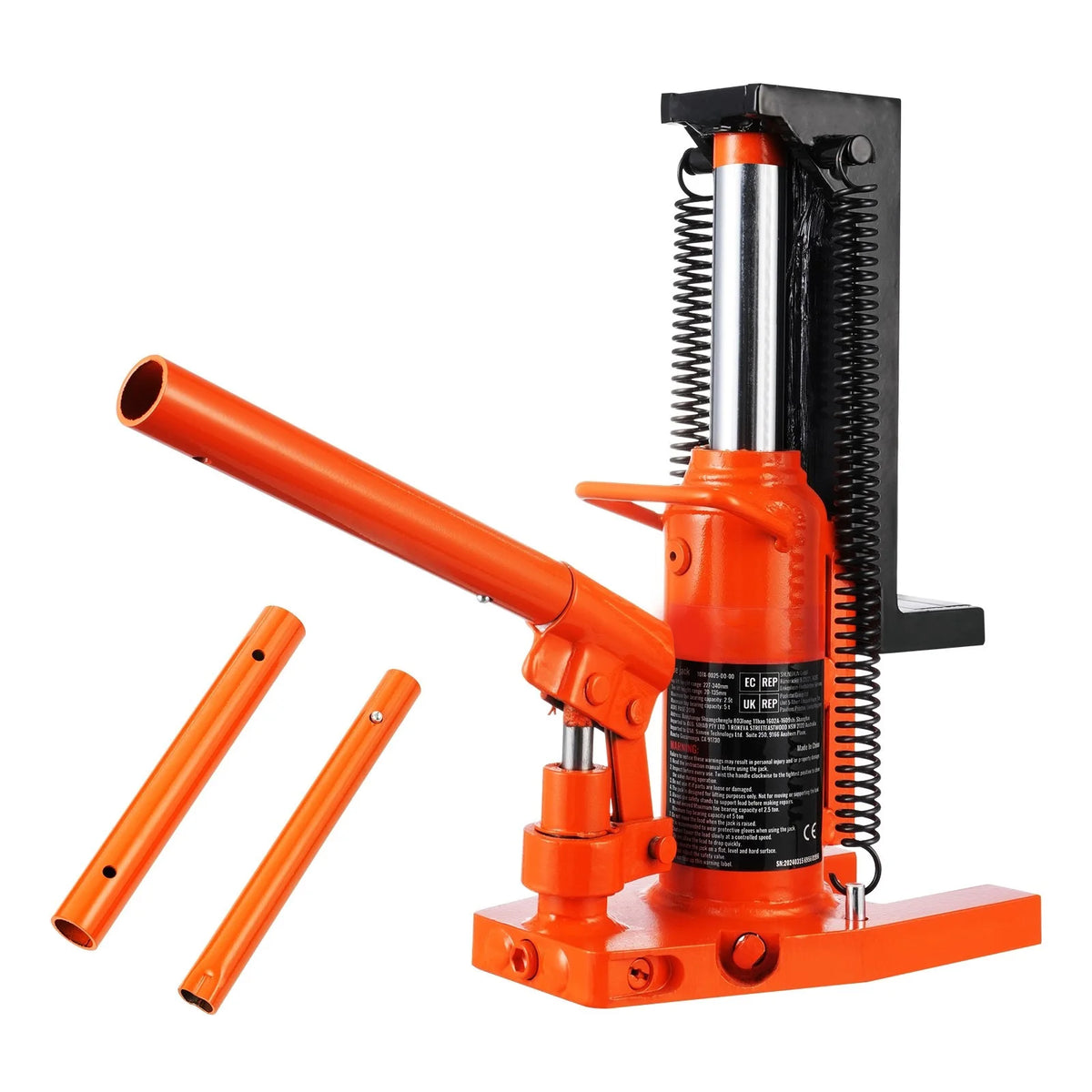

• 1 × 2.5T / 5T Hydraulic Toe Jack Unit

• 1 × 3-Stage Collapsible Pump Handle

⚠️ Important Safety & Usage Notes



1. Solid Foundation: Always place the jack on a hard, level concrete surface; never operate on soft or uneven ground to prevent tipping under load.

2. Jack Stand Requirement: Never work under a load supported solely by a hydraulic jack; immediately insert rated mechanical jack stands or steel blocking once the target height is reached.
