Precision Thin Rip Table Saw Jig (DUTRIEUX)

📋 Specifications

• Product Type: Precision Anti-Kickback Thin-Rip Guide Jig

• Primary Material: Anodized CNC-Machined Aluminum Alloy & Heavy-Duty Metal Hardware

• Guide Wheel Mechanism: One-Way Bearing Roller (Anti-Kickback Directional Control)

• Measurement Scale: Laser-Engraved Dual Imperial (Inches) & Metric (Millimeters)

• Cutting Thickness Range: Ultra-Fine Strips Down to 1/32" (0.8 mm)

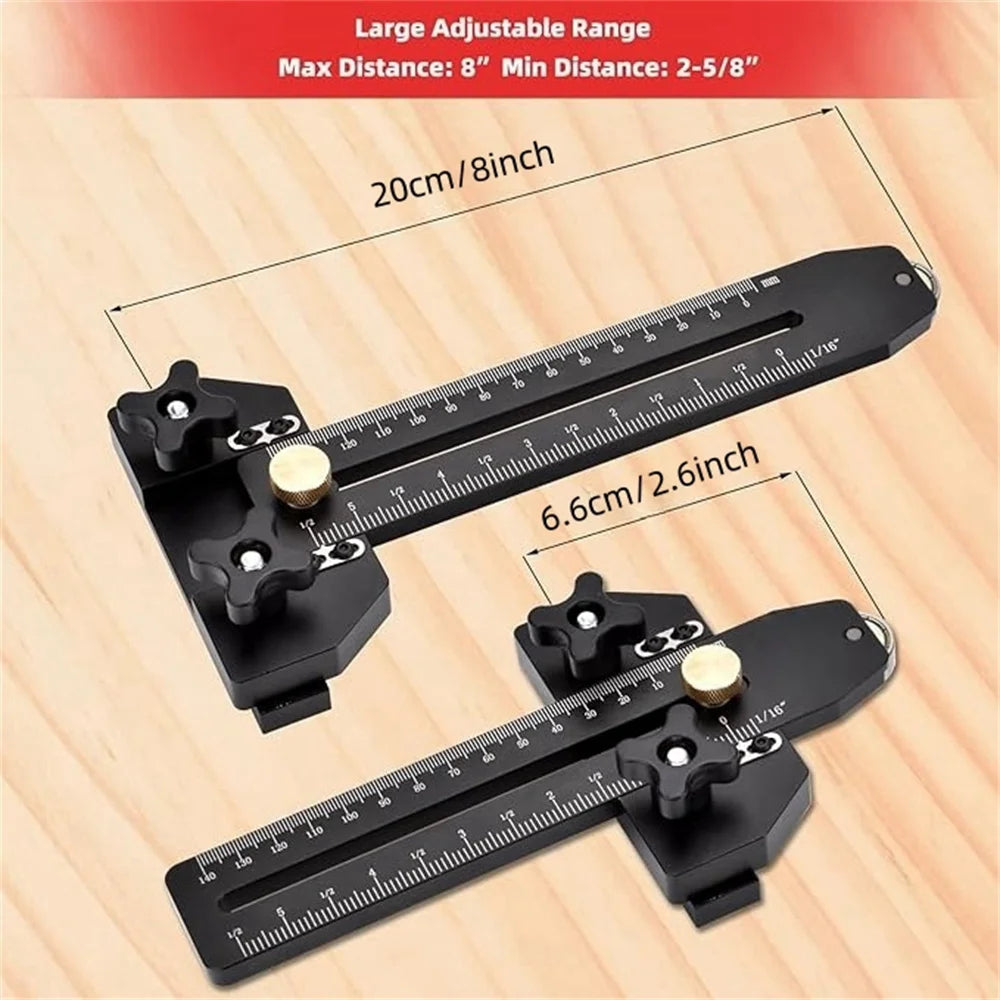

• Extension Cutting Range: 2-5/8 Inches to 8.0 Inches (66.7 mm to 203.2 mm) from Blade

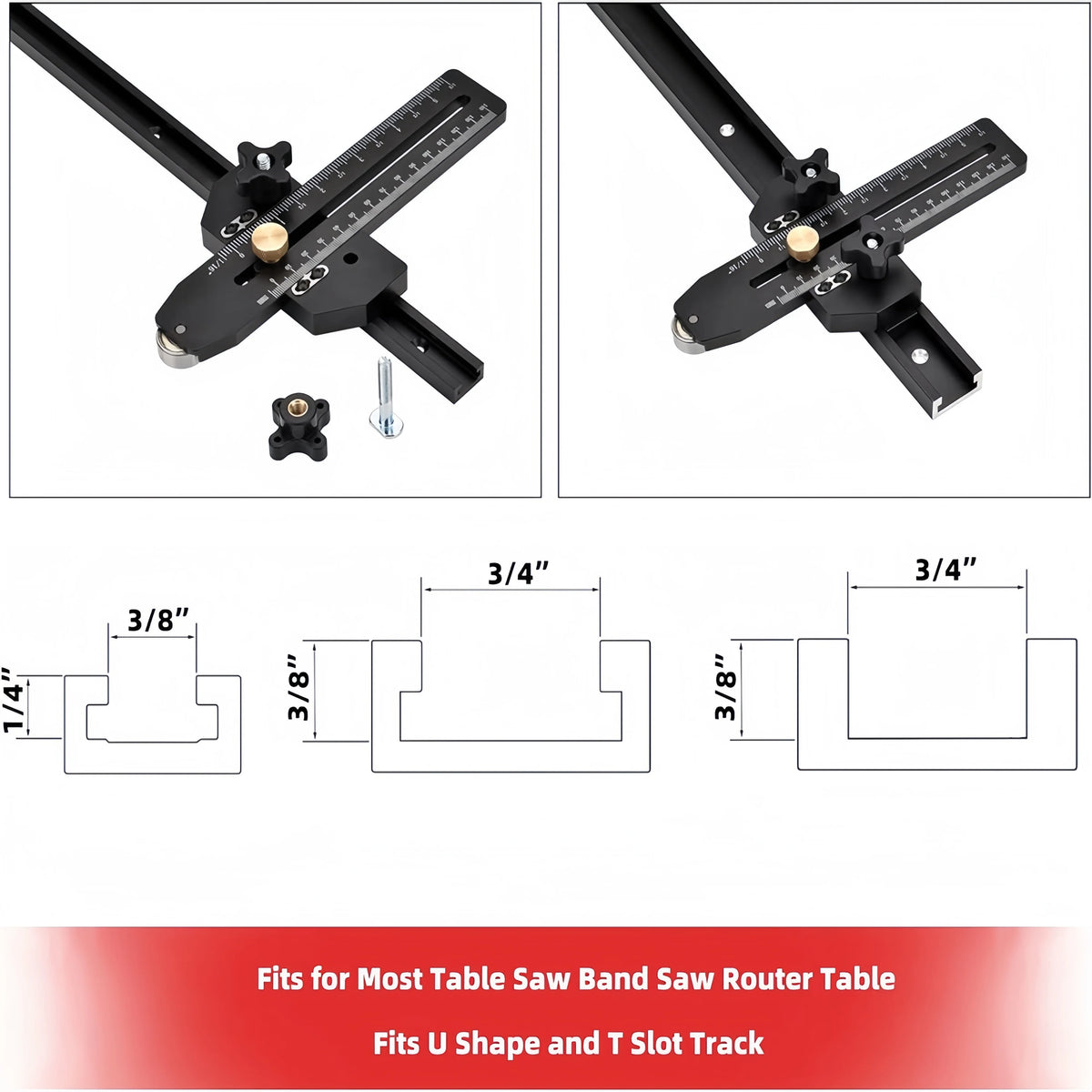

• Miter Slot Compatibility: Standard 3/8" × 3/4" T-Track / U-Slot and 1/4" × 3/8" T-Slot Channels

• Power Tool Compatibility: Table Saws, Band Saws, & Router Tables

• DIY Supplies / Trade: Professional Woodworking, Cabinetry, & Lamination

• High-Concerned Chemical: None

🔧 Key Features

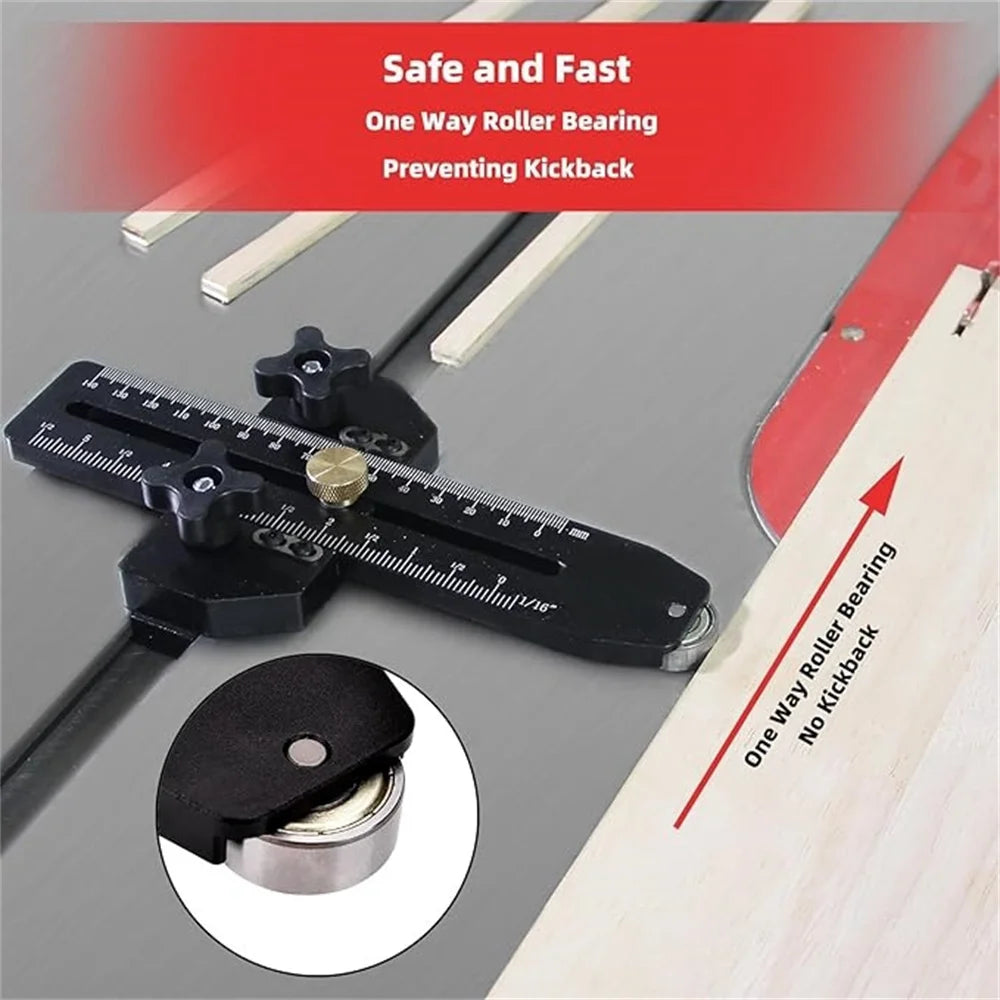

• One-Way Roller Bearing Safety: Integrated directional roller bearing allows workpieces to glide smoothly forward while locking against backward movement, preventing dangerous kickback off the blade.

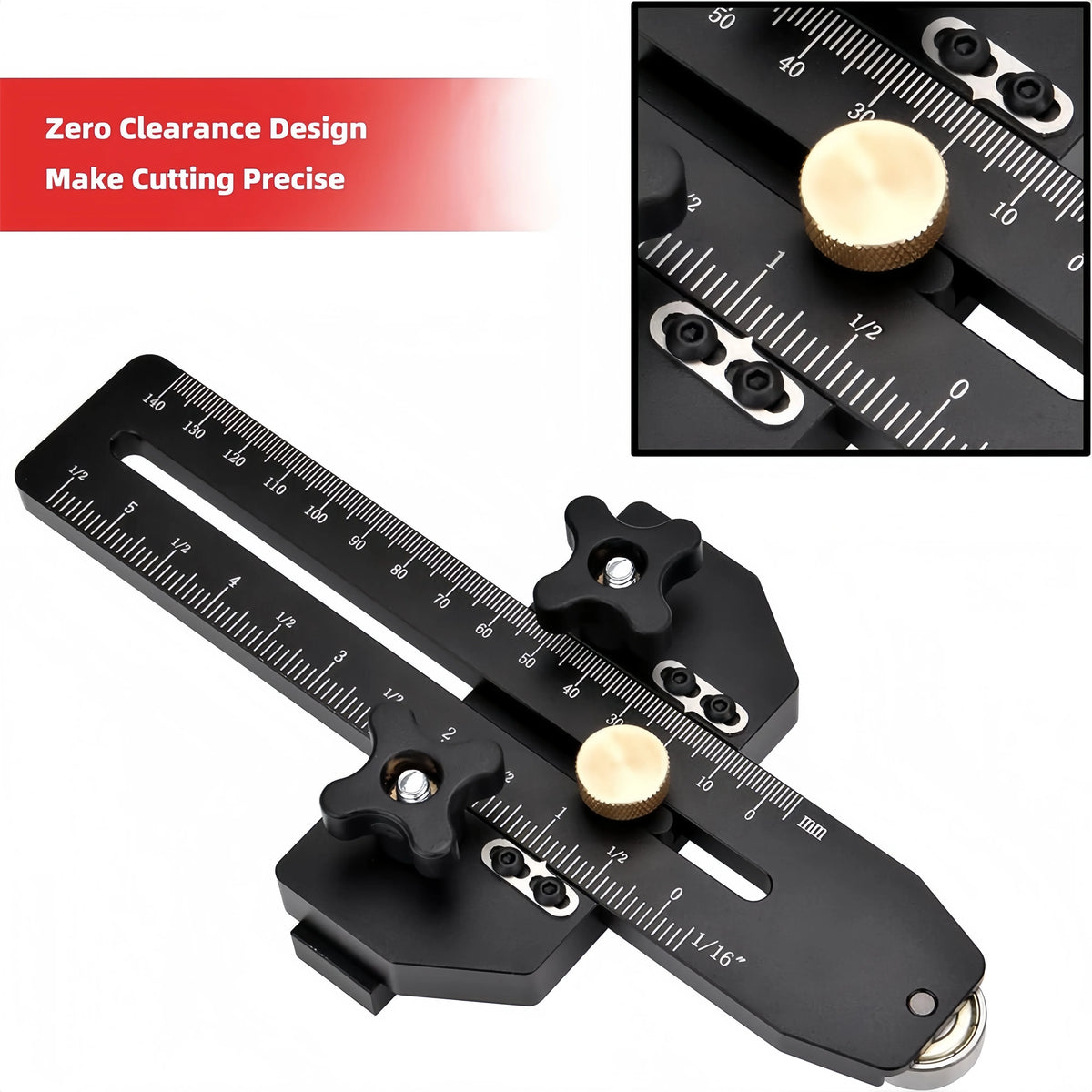

• Dual-Scale Precision Alignment: Laser-etched millimeter and inch scales with zero-clearance reference pointers ensure exact blade-to-jig offsets for micro-thin cuts.

• Universal Track Mount: Fits standard 3/8" × 3/4" miter slots and T-tracks directly without modification; locks securely into position with a heavy-duty brass/aluminum thumb knob.

• Extended Reach Capacity: Extends up to 8 inches away from the blade centerline to accommodate wide panel slicing, face-frame edging, and narrow strip production.

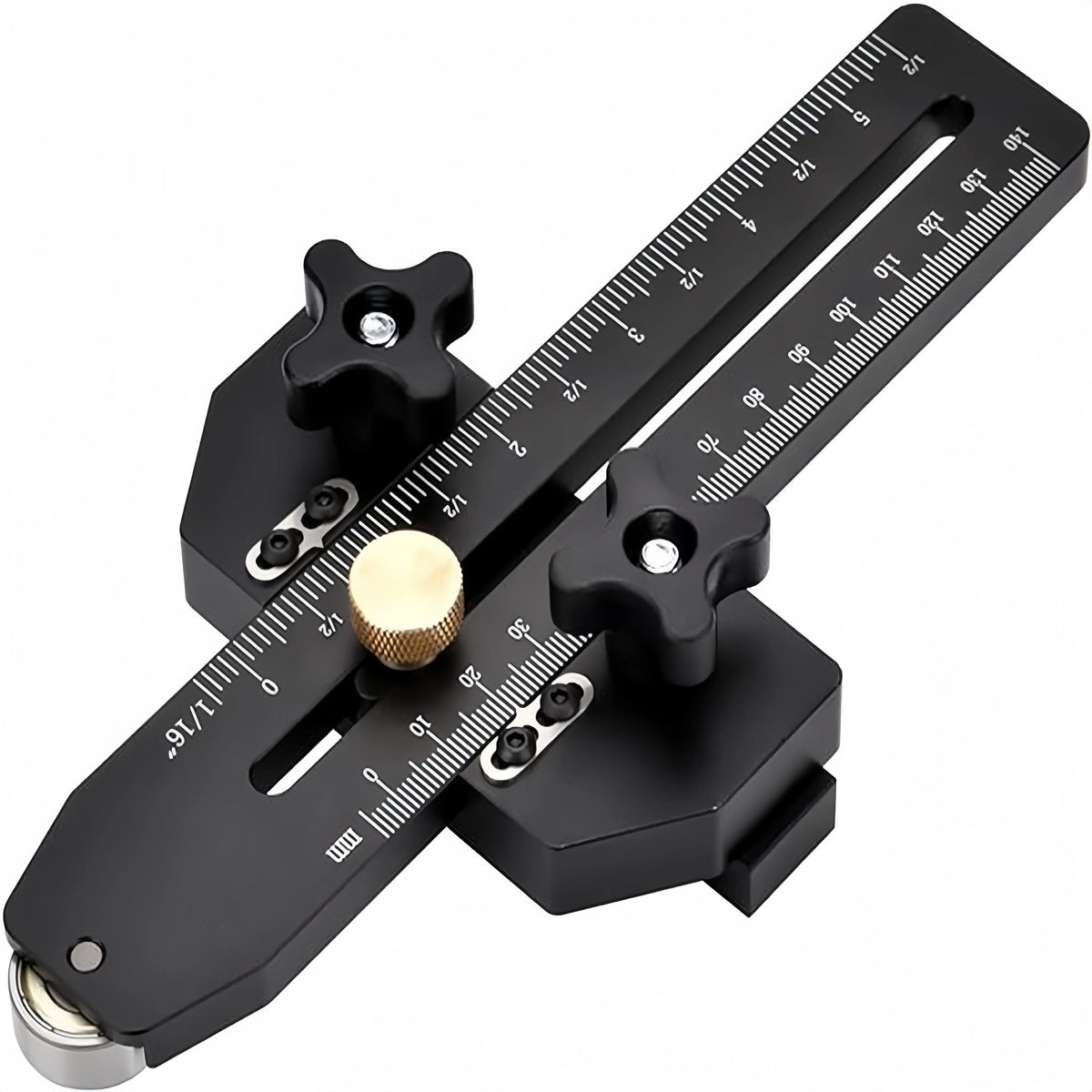

• All-Metal Structural Rigidity: Solid anodized aluminum alloy body resists deflection, bowing, and workshop wear, maintaining precise zero-point accuracy across continuous production runs.

🏠 Ideal Applications

• Ripping Consistent Thin Wood Strips for Inlays, Edge Banding, Bent Lamination, & Veneers

• Safe Narrow Stock Feeding on Table Saws, Band Saws, & Shapers

• Repeatable Dimensioning of Small Parts in Fine Furniture & Cabinet Building

📦 Package Includes

• 1 × Precision Thin Rip Jig Assembly with One-Way Bearing Roller

• 1 × Universal Miter Track Locking Hardware Kit

⚠️ Important Safety & Usage Notes

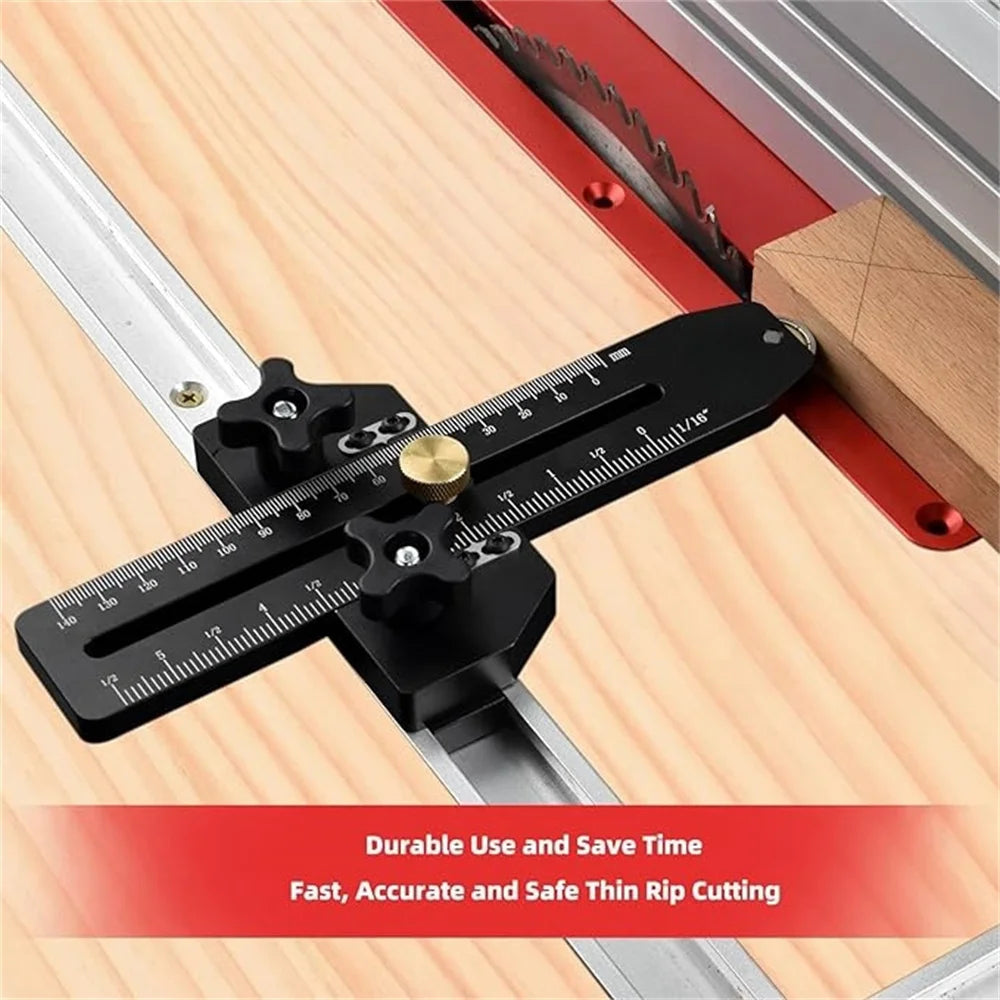

1. Positioning Relative to Blade: Always position the thin-rip jig in front of the saw blade (on the infeed side); never place the roller directly alongside or past the blade body to prevent pinching.

2. Riving Knife Prerequisite: Always use your table saw's riving knife or splitter and 3D push blocks in conjunction with the thin-rip jig to maintain full control over the offcut strip.
