Diamond Tile Chamfering & Edge Disc

📋 Specifications

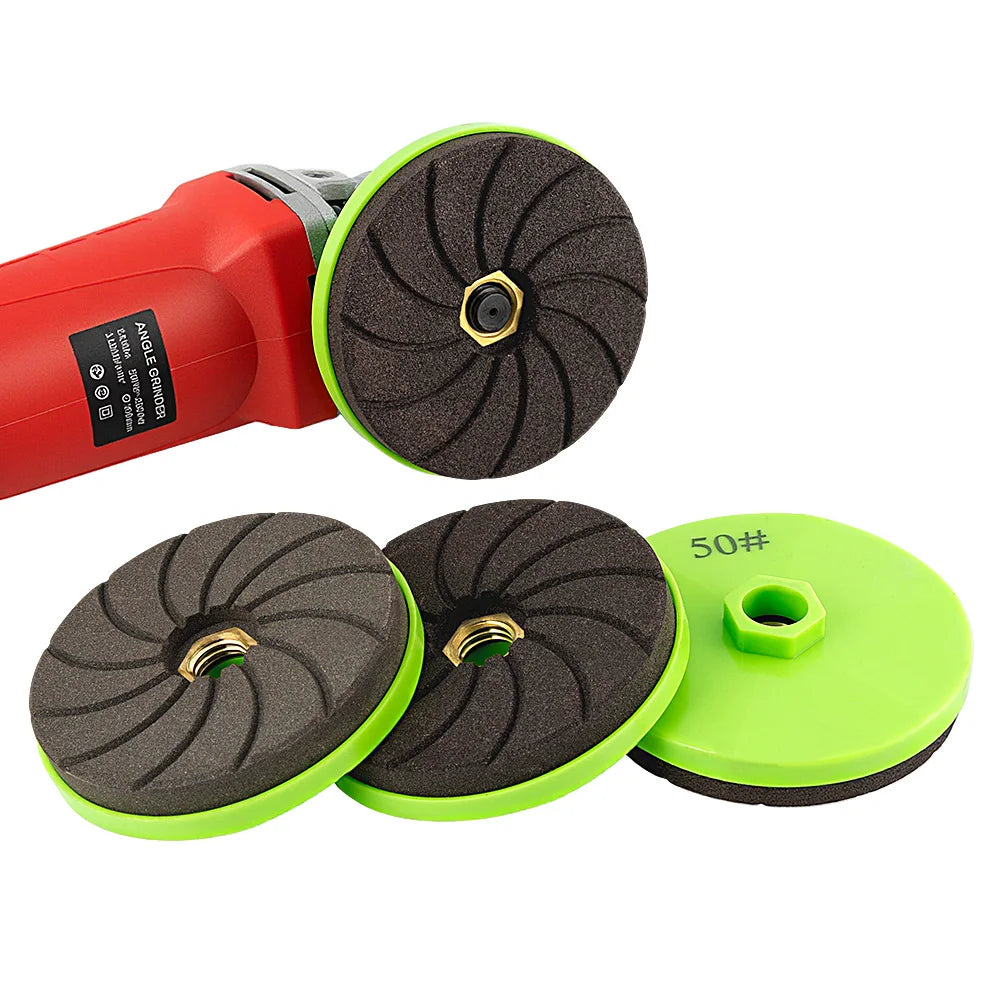

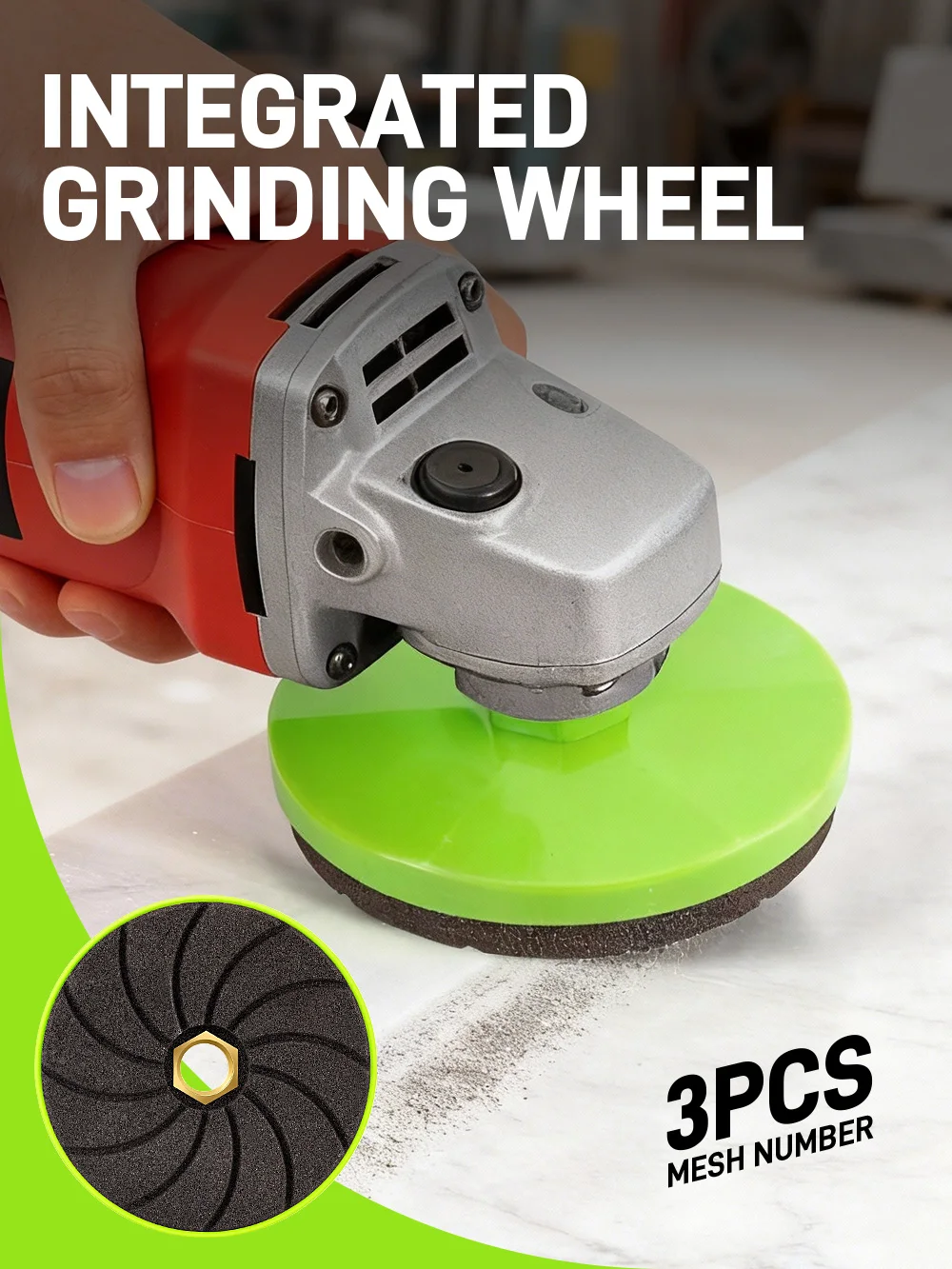

• Product Name: 4-Inch Integrated Diamond Grinding & Chamfering Wheel

• Model Number: Integrated Polishing Pad Ceramic Series

• Primary Materials: Premium Diamond Abrasives, Silicon Carbide, Resin Bonding, & High-Temp ABS Base Plate

• Manufacturing Process: Resin Bonding with Dual Retaining Ring Integration

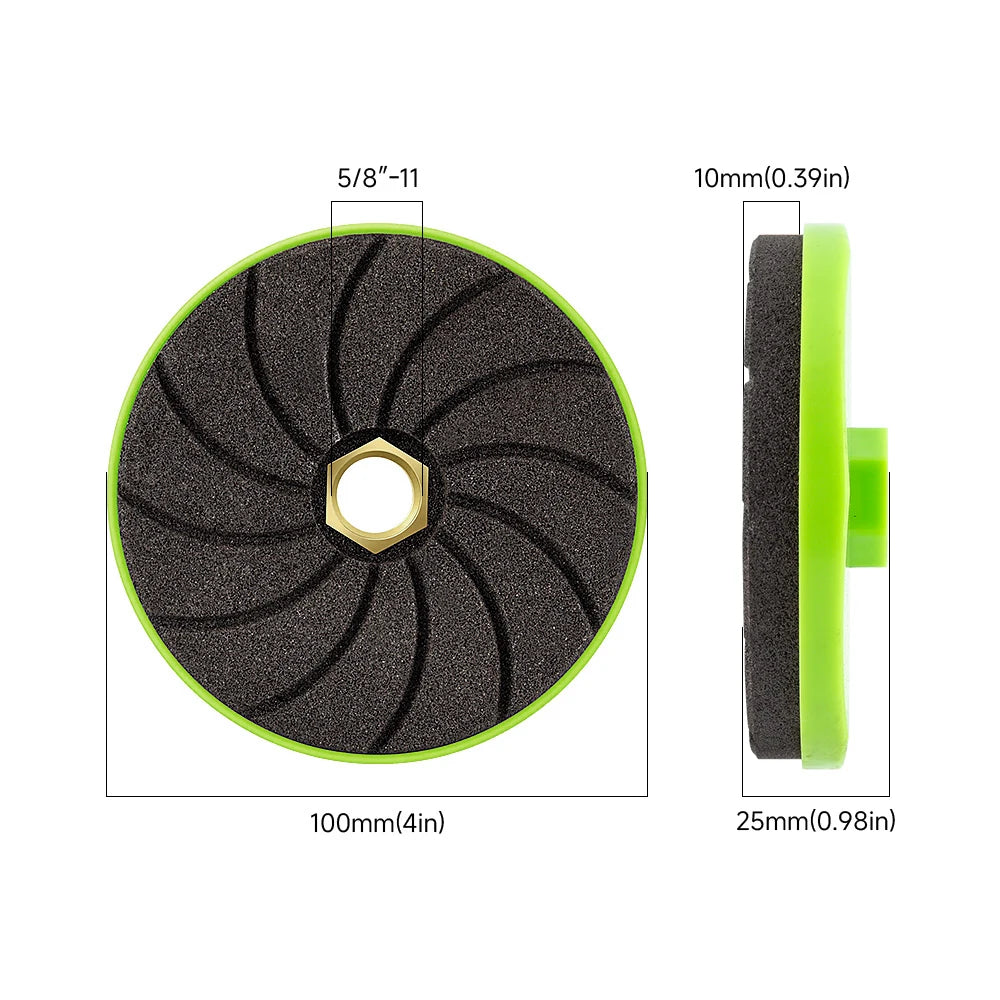

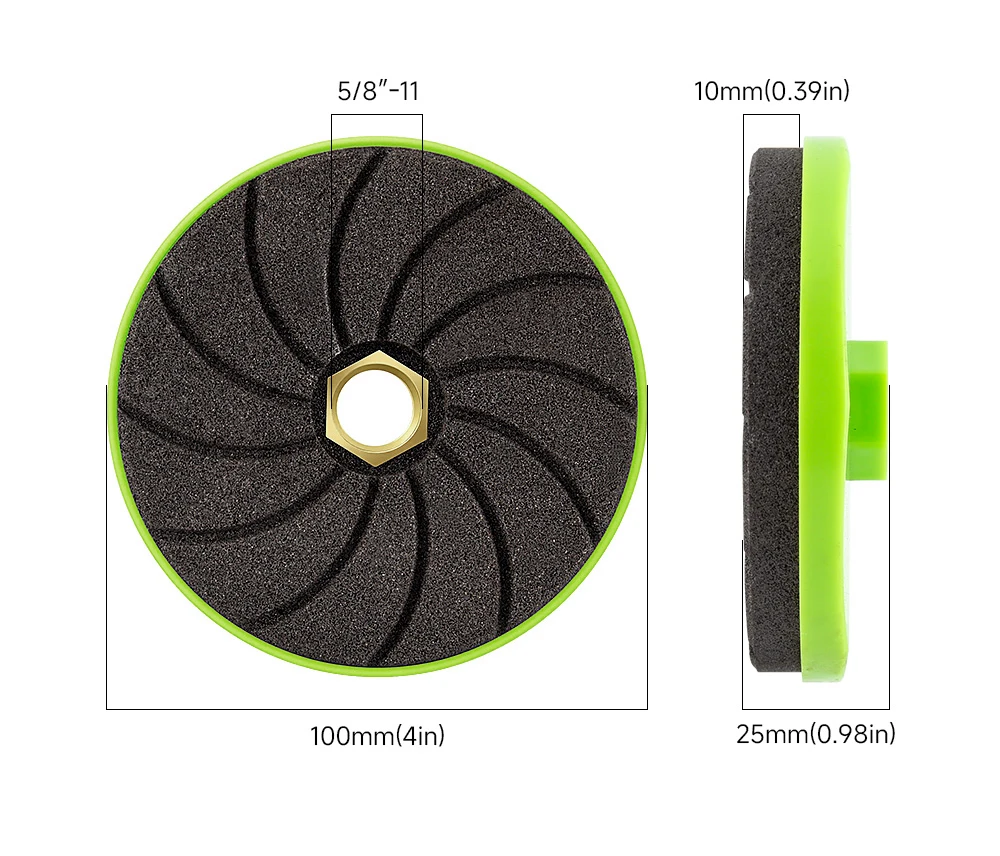

• Outer Diameter: 4 Inches / 100 mm

• Disc Thickness: 0.39 Inches / 10 mm (Thickened Abrasive Layer)

• Spindle Thread Options: M14 or 5/8"-11 Internal Threads

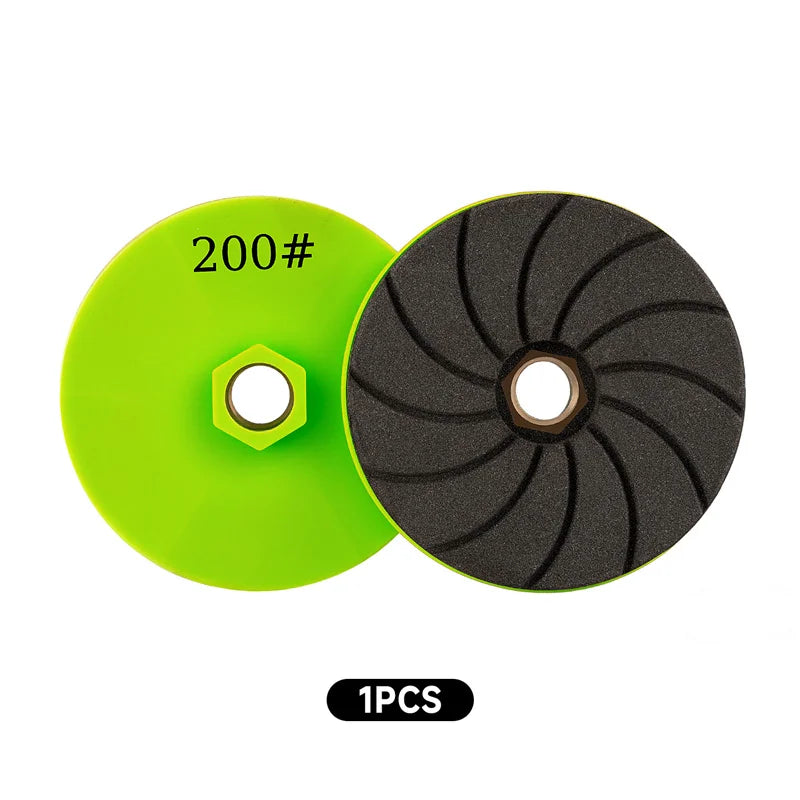

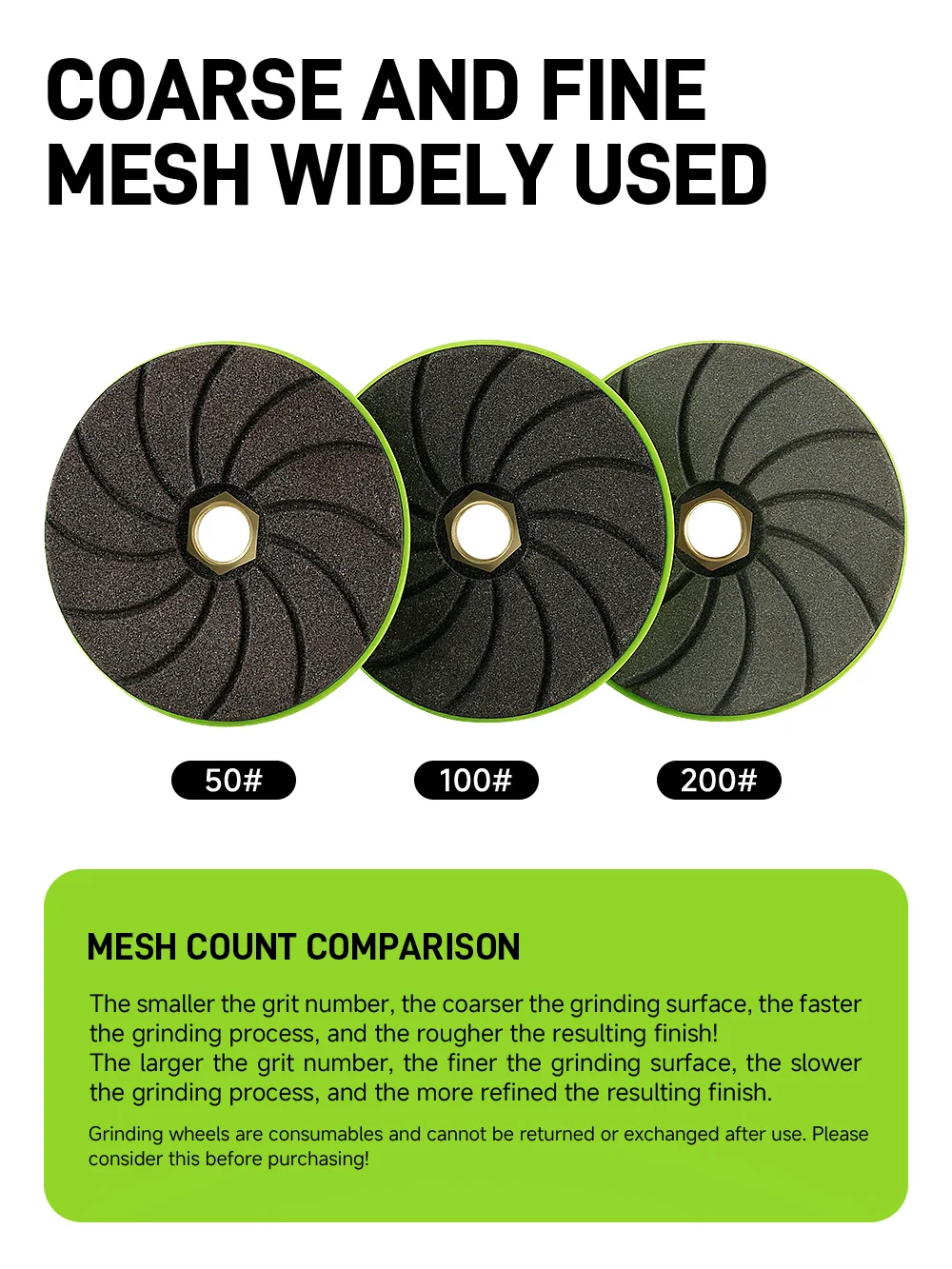

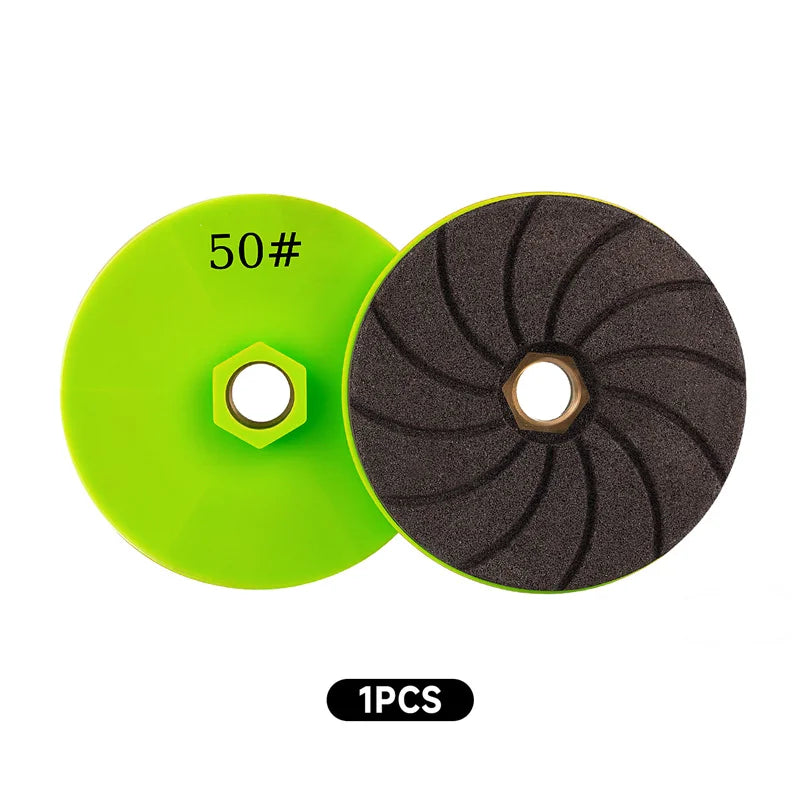

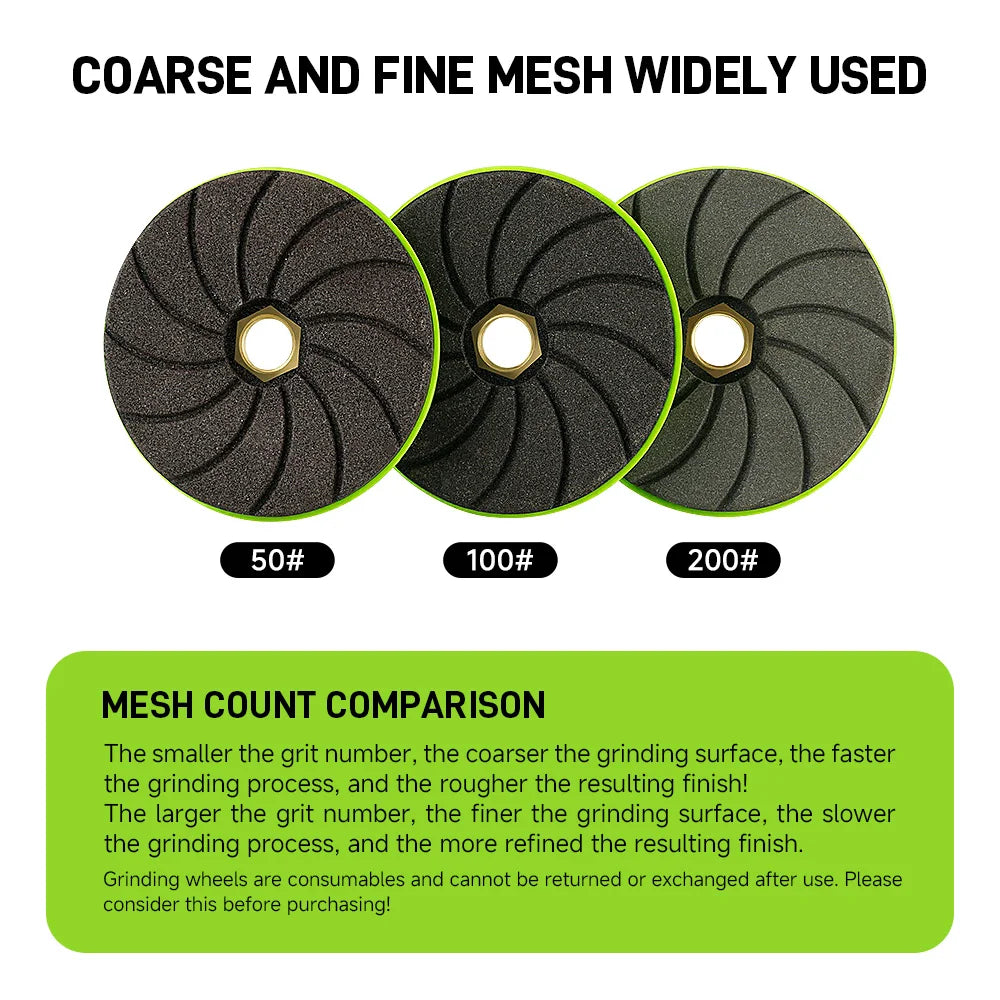

• Grit Options Available: #50 (Coarse), #100 (Medium), #200 (Fine)

• Pattern Profile: Fan-Shaped Texture (Heat Dissipating Channels)

• Compatible Power Tools: Standard 4" / 4.5" Angle Grinders

• Usage Classification: Commercial Manufacturing, Masonry Contracting, & DIY Renovation

• High-Concerned Chemical: None

🔧 Key Features

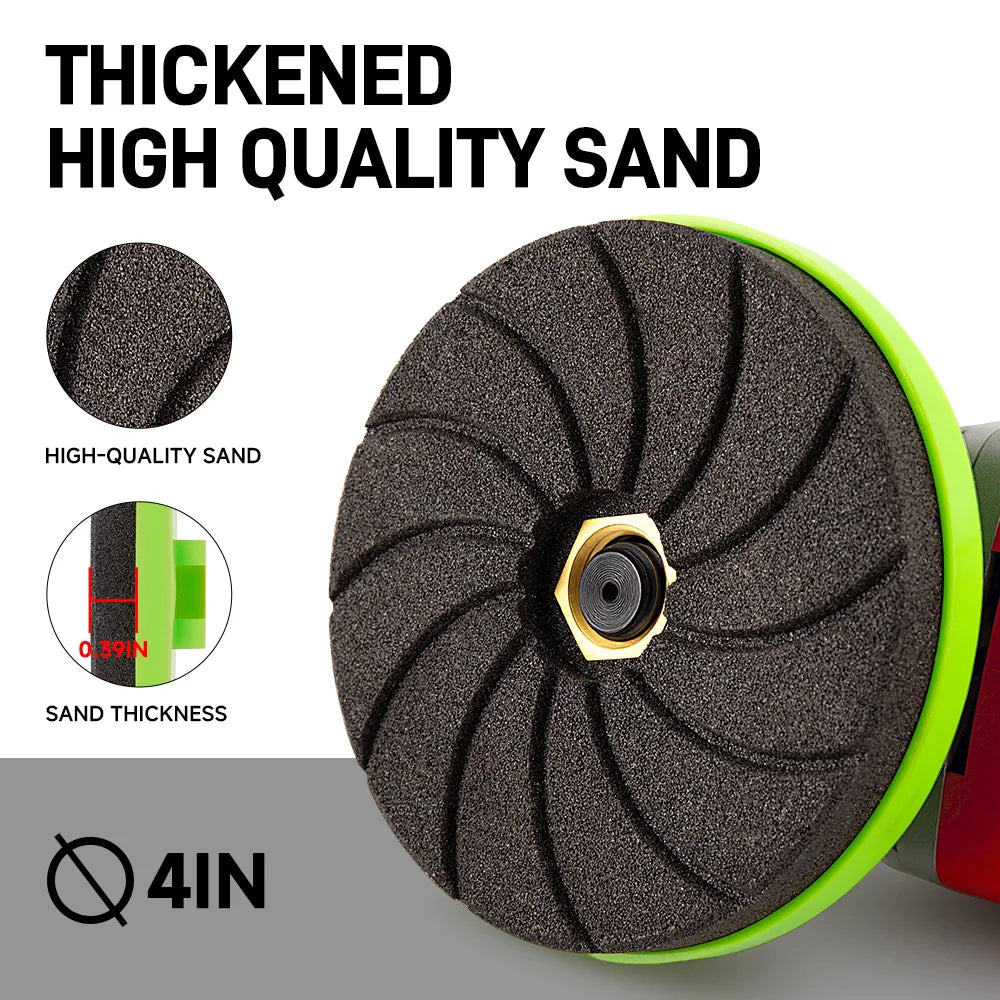

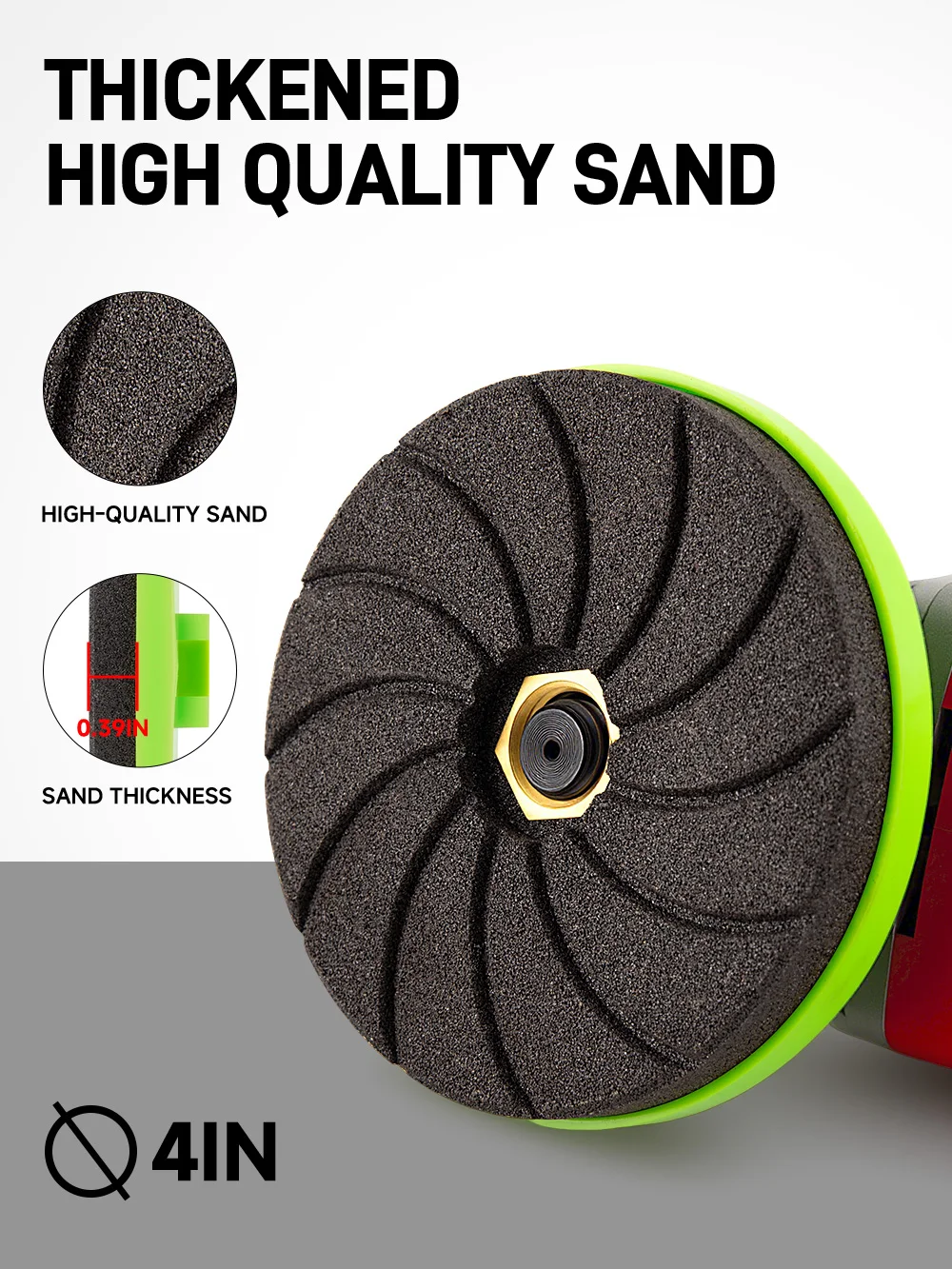

• 10mm Thickened Abrasive Matrix: Engineered with a thick resin-bonded silicon carbide and diamond matrix with uniform grit distribution for high durability and long service life.

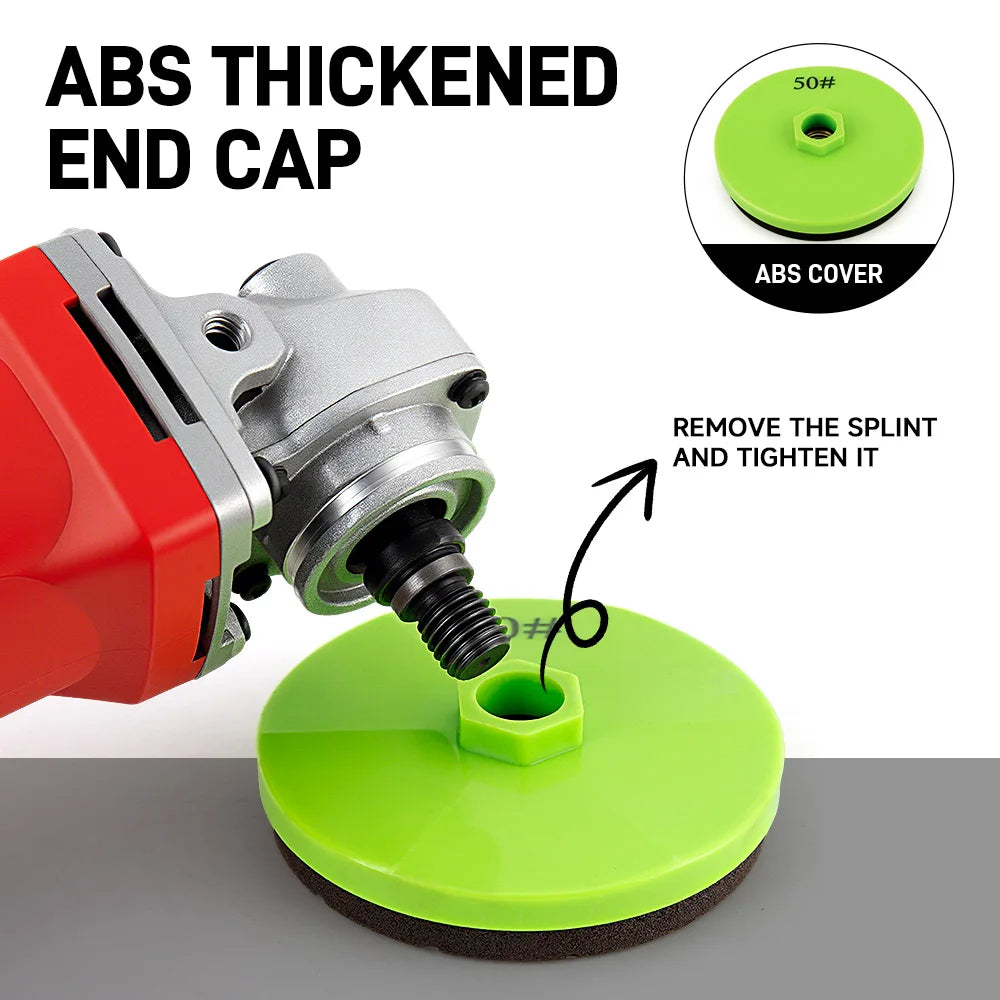

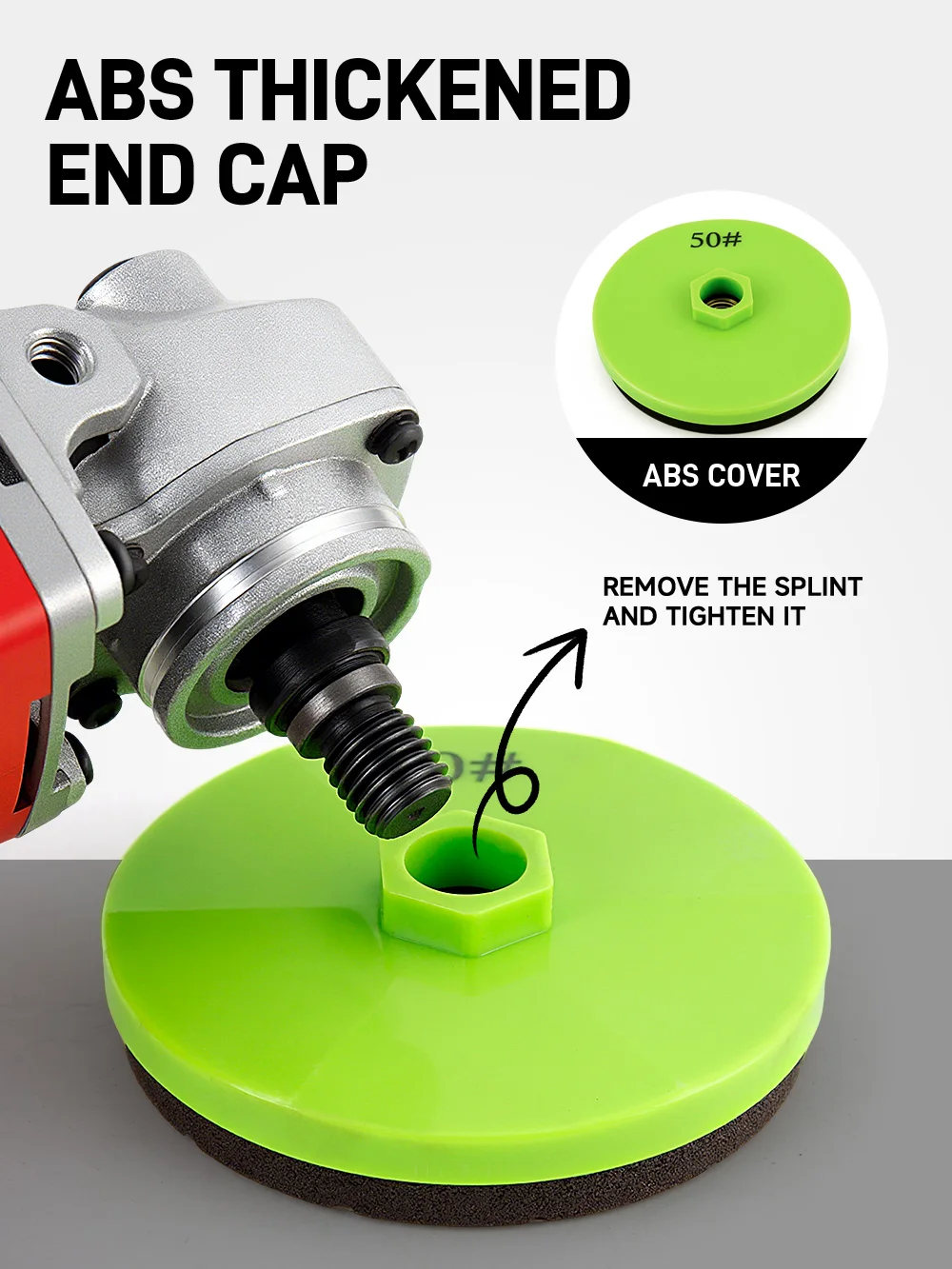

• Integrated ABS Backing Plate: Features an integrated backing plate crafted from high-temperature ABS that resists thermal warping and vibration during high-RPM grinding.

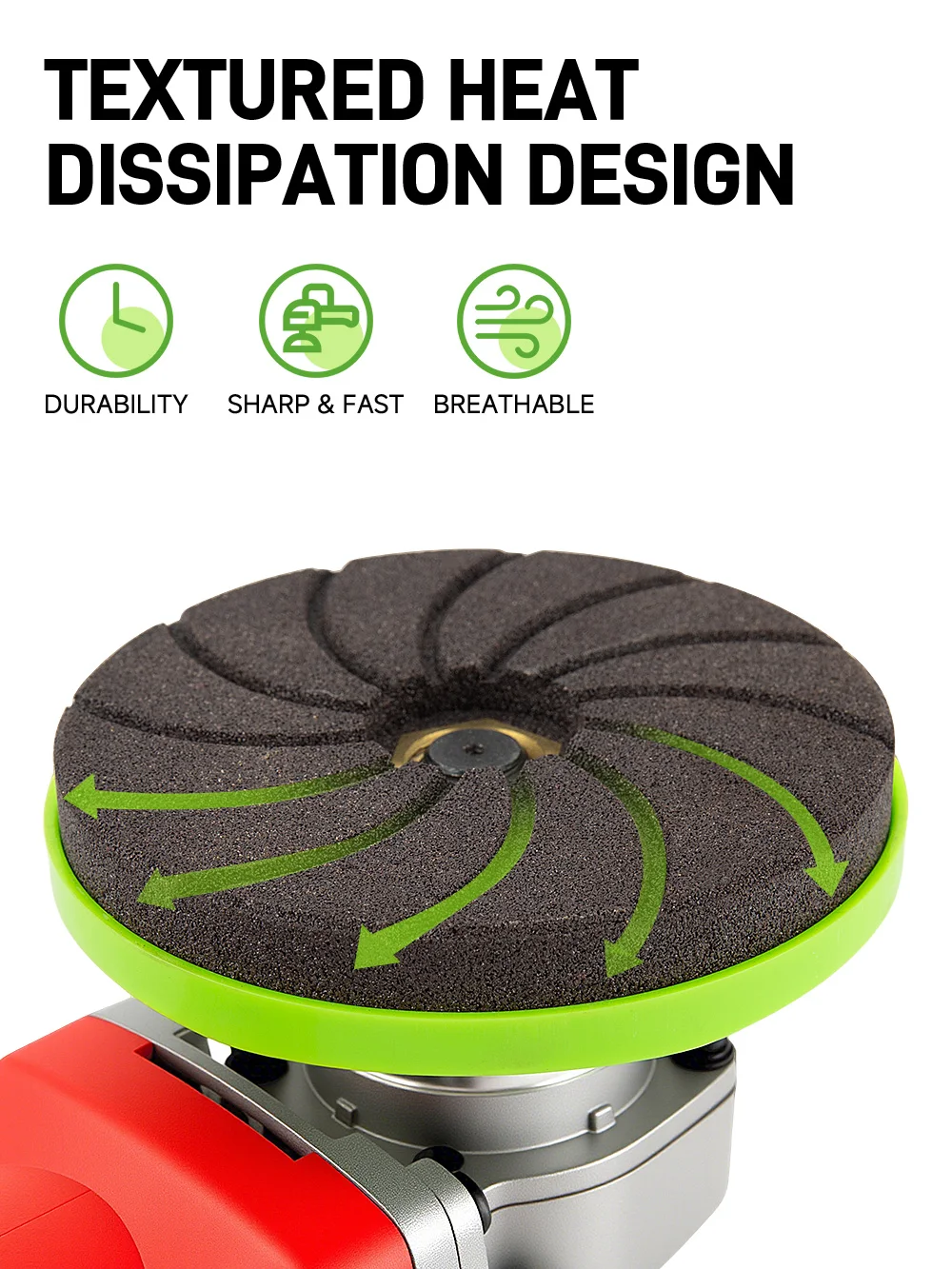

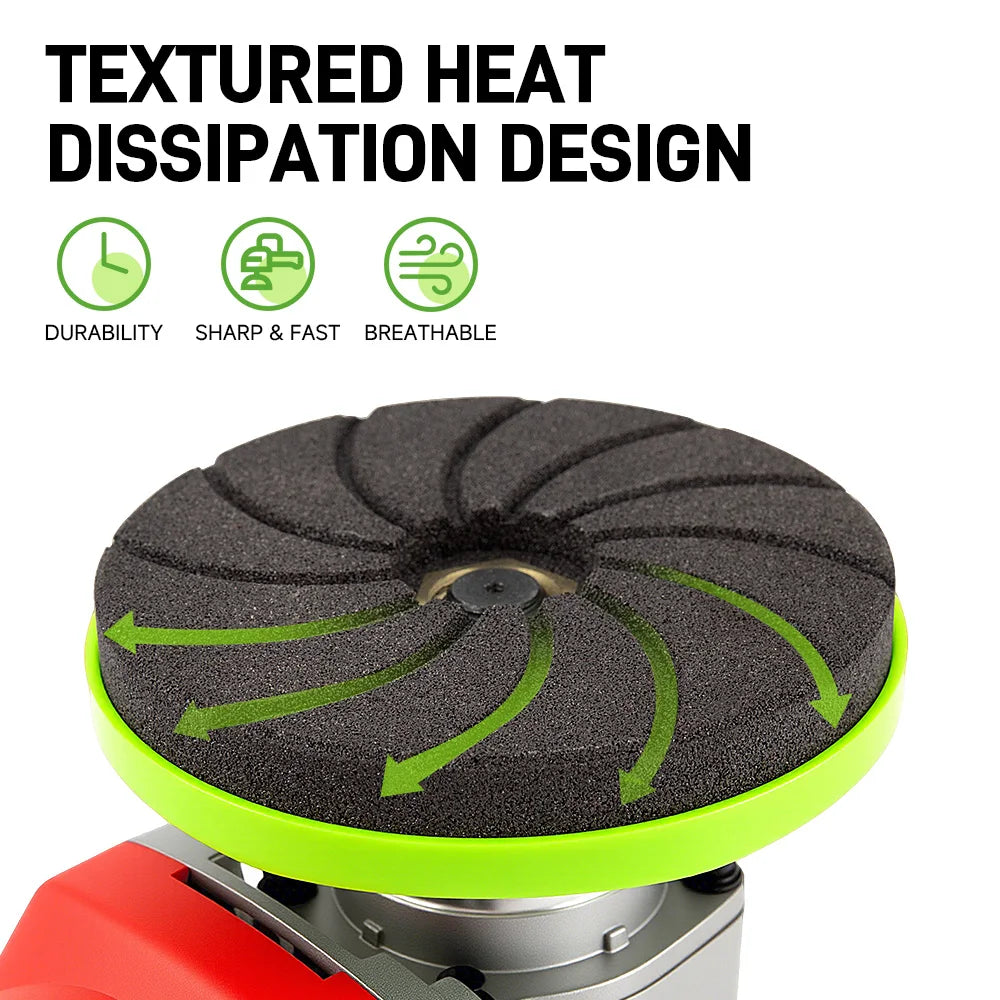

• Fan-Shaped Thermal Channels: Textured surface pattern actively expels dust and dissipates frictional heat, keeping the abrasive sharp and preventing tile edge glaze cracking.

• Dual Precision Threaded Mount: Reinforced dual retaining rings with high-precision internal threads (M14 or 5/8"-11) thread directly onto angle grinder spindles without requiring separate backing pads.

• Versatile Coarse-to-Fine Material Shaping: Performs fast material removal, 45-degree chamfering, and smooth edge deburring across ceramic, porcelain, marble, granite, and glass.

🏠 Ideal Applications

• Chamfering, Beveling, & 45-Degree Edge Miter Grinding on Porcelain & Ceramic Tiles

• Shaping, Trimming, & Edge Polishing Marble, Granite, & Natural Stone Countertops

• Deburring Glass Edges, Smoothing Rough Concrete, & Light Metal Rust Removal

📦 Package Includes

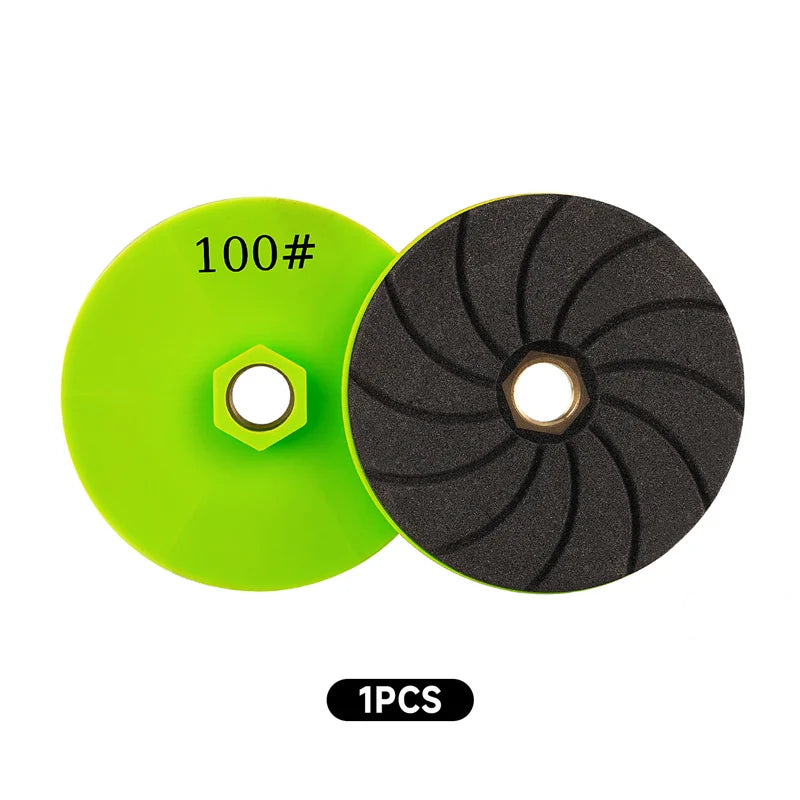

• 1 × 4-Inch Integrated Diamond Tile Chamfering Disc (Selected Grit & Thread Specification)

⚠️ Important Safety & Usage Notes



1. Personal Protective Equipment (PPE): Always wear ANSI-approved safety goggles, a certified dust mask or respirator, and heavy leather work gloves when operating angle grinders equipped with masonry grinding discs.

2. RPM & Thread Verification: Ensure your angle grinder's spindle thread matches the disc specification (M14 or 5/8"-11) and that operating speeds do not exceed the max safe RPM rated for 4-inch grinding wheels.

3. Grit Progression: Start with coarse grit (#50) for heavy material removal or bevel shaping, then progress to higher grits (#100, #200) to smooth chip marks and achieve a clean, finished edge.
