6MP Dual-Lens PTZ PoE Security Camera System

Protect your home or property with a complete PoE security camera system featuring dual-lens 6MP cameras, PTZ coverage, human and motion detection, two-way audio, and remote viewing from your phone or computer.

PoE technology carries power and video through a single network cable, making installation cleaner and more reliable than traditional multi-cable camera systems.

Key Features:

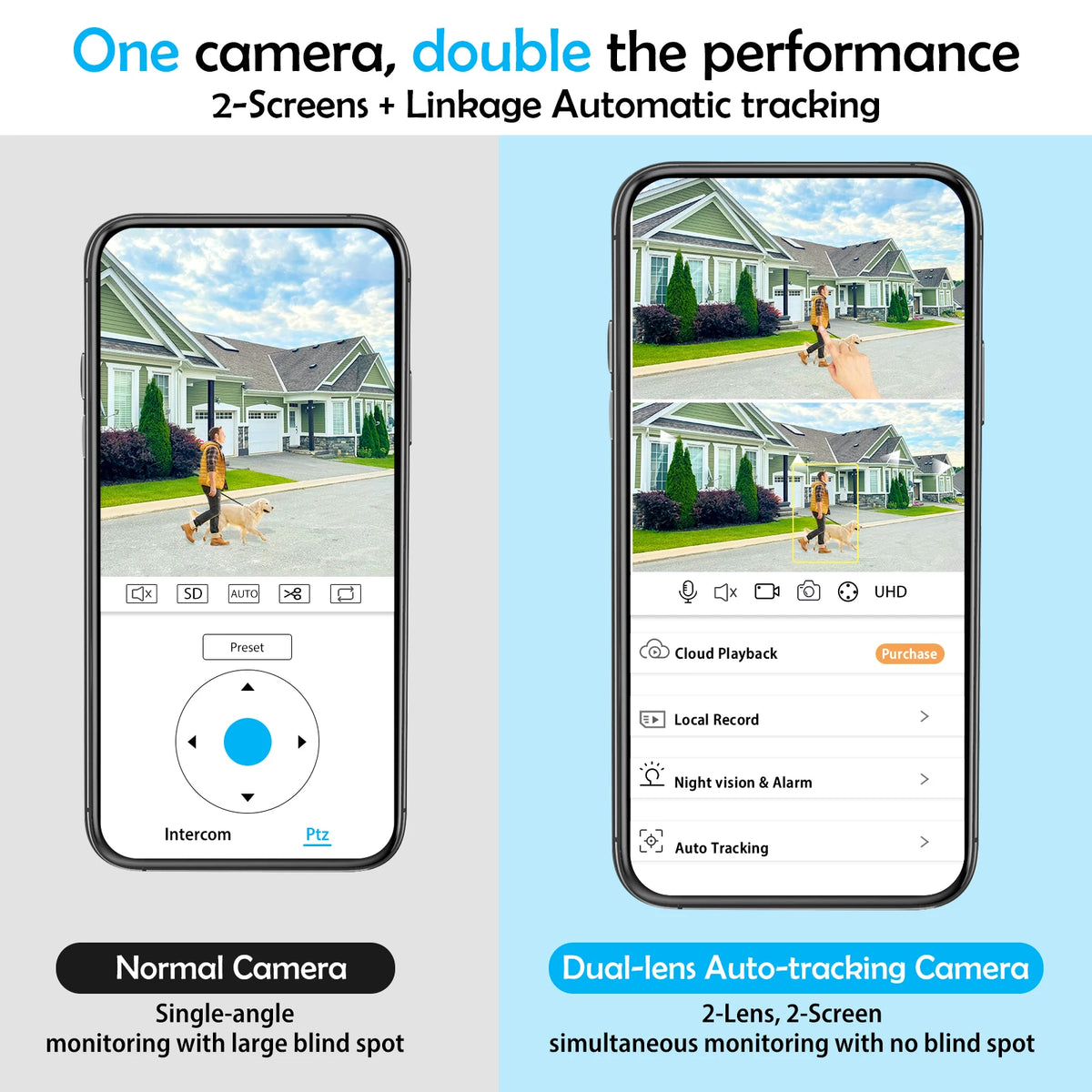

• 6MP Dual-Lens Cameras – Each camera combines two 3MP sensors for detailed surveillance coverage.

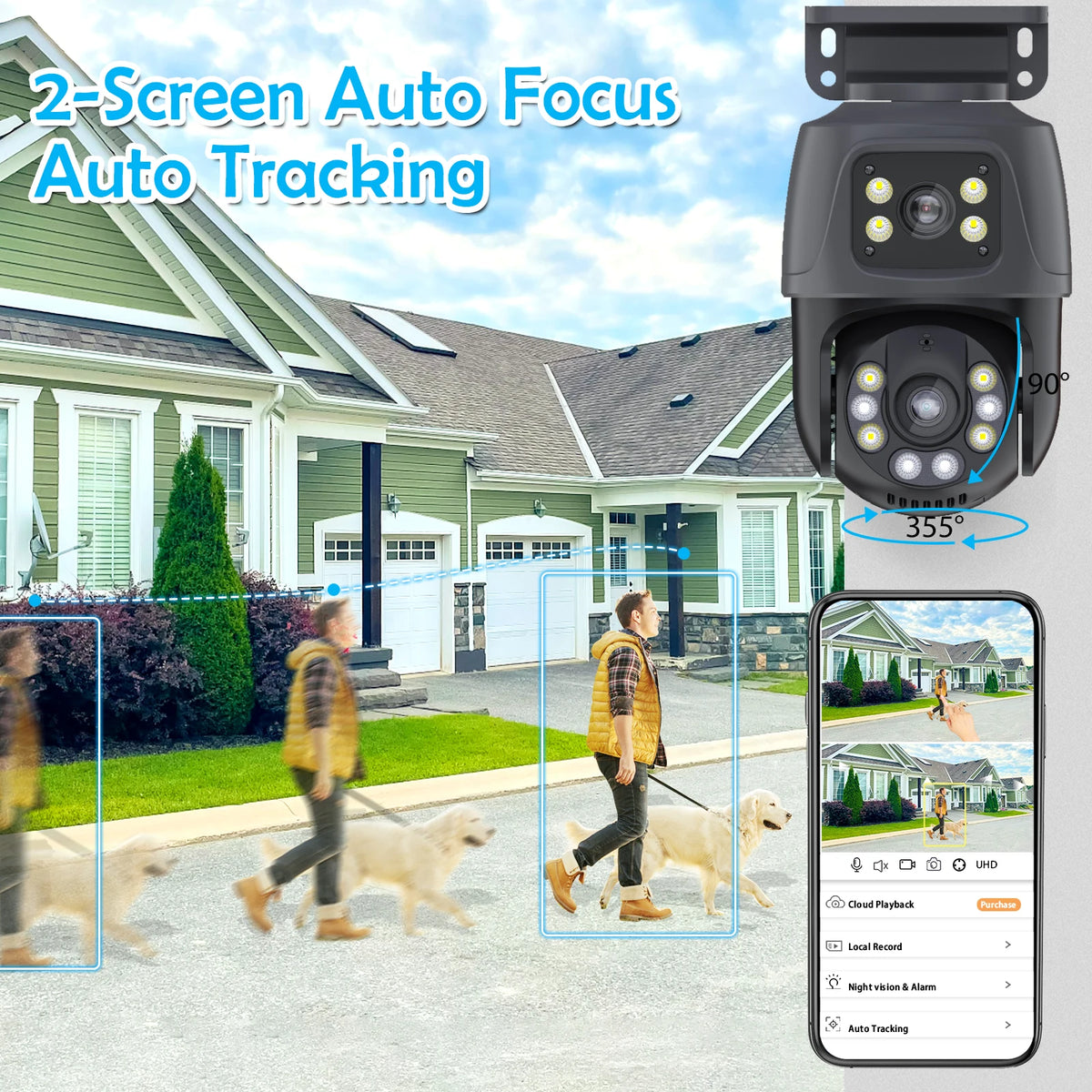

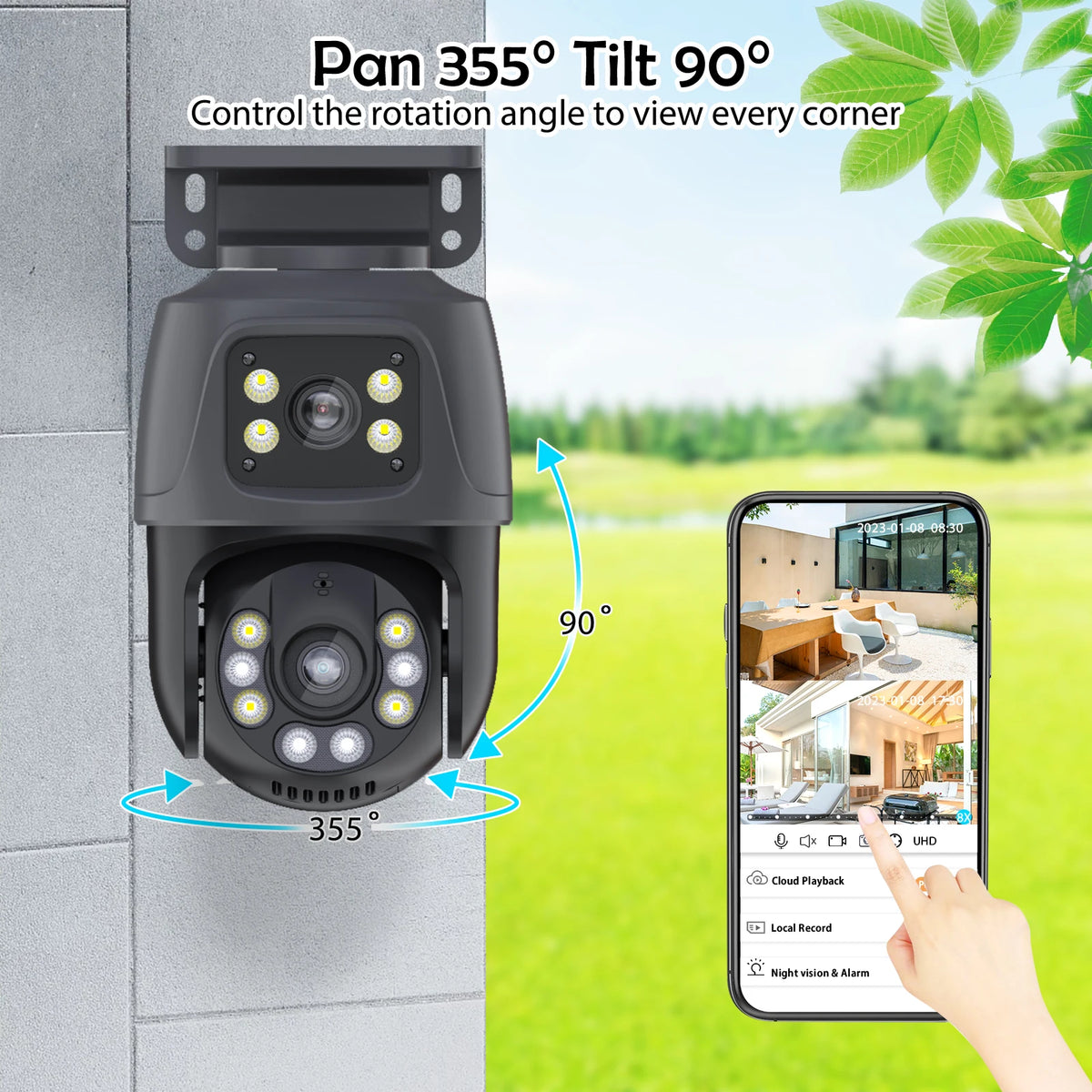

• PTZ Monitoring – Remotely control the camera viewing direction for broader property coverage.

• PoE Plug & Play – Power and video transmission through a single Ethernet cable.

• Human & Motion Detection – Smart detection helps identify activity and trigger alerts.

• Two-Way Audio – Built-in audio support lets you listen and communicate through the camera system.

• Remote Viewing – Monitor your cameras anytime from compatible smartphones, tablets, and computers.

• XMEye App Support – Remote mobile access through the XMEye platform.

• Day & Night Monitoring – Designed for continuous indoor or outdoor surveillance.

• IP66 Weather-Resistant Cameras – Suitable for outdoor installation and changing weather conditions.

• H.265+ Compression – Efficient video compression helps reduce storage usage while maintaining image quality.

• Email Alerts – Receive notifications when supported detection events are triggered.

• HDMI & VGA Output – Connect the NVR directly to a compatible monitor or TV.

• ONVIF Support – Provides additional compatibility with supported surveillance equipment.

• Expandable Storage – Supports one 3.5" SATA hard drive up to 8TB.

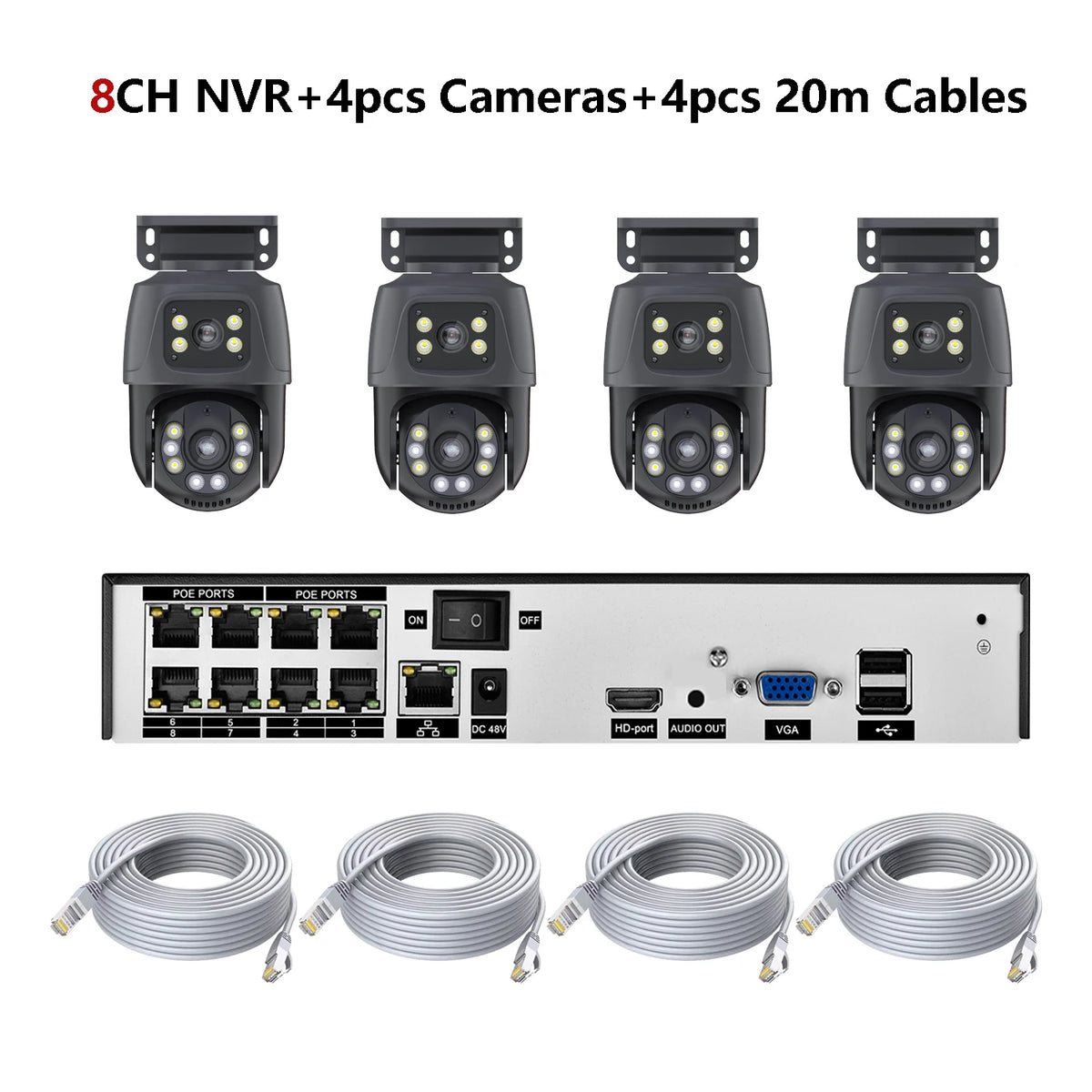

Multiple System Options

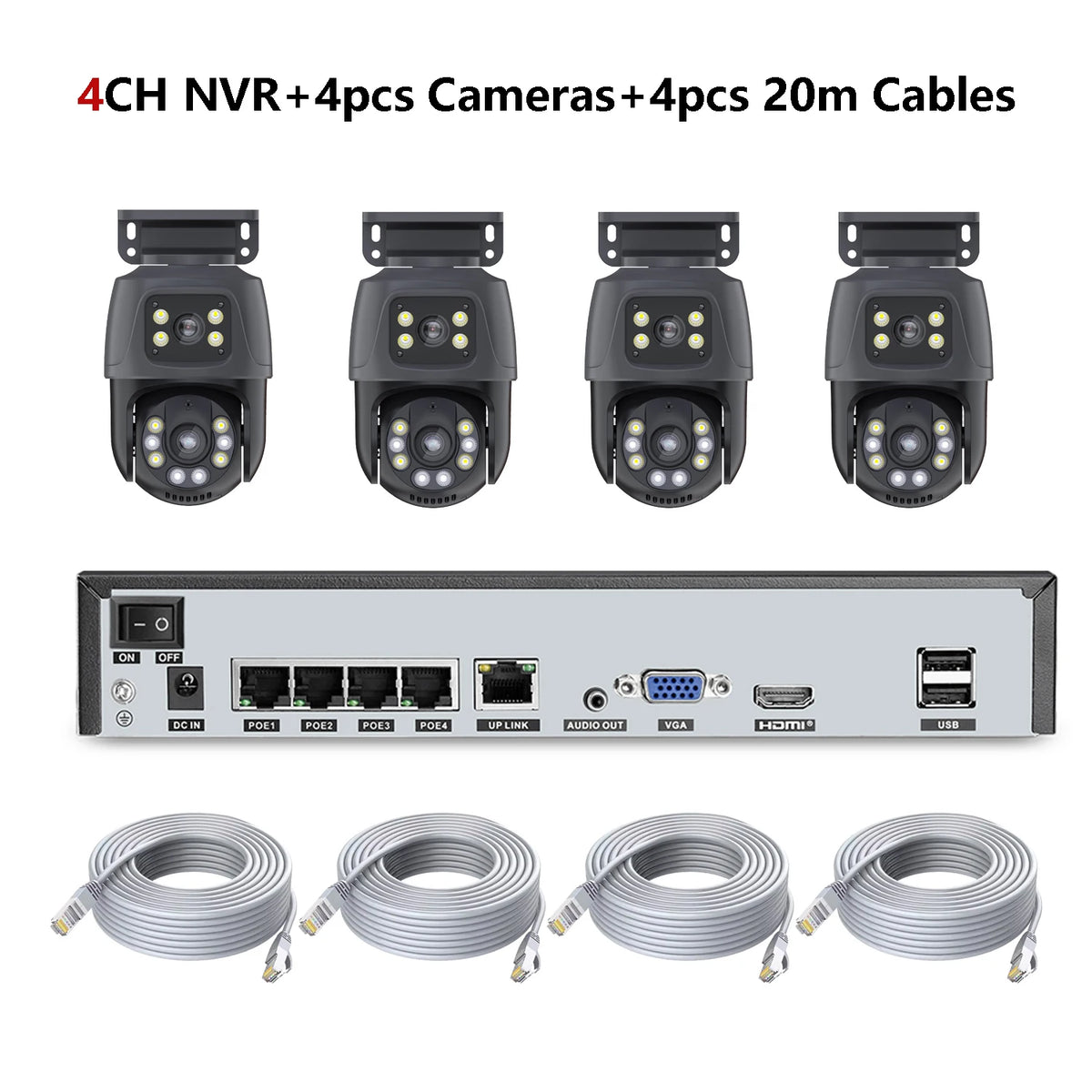

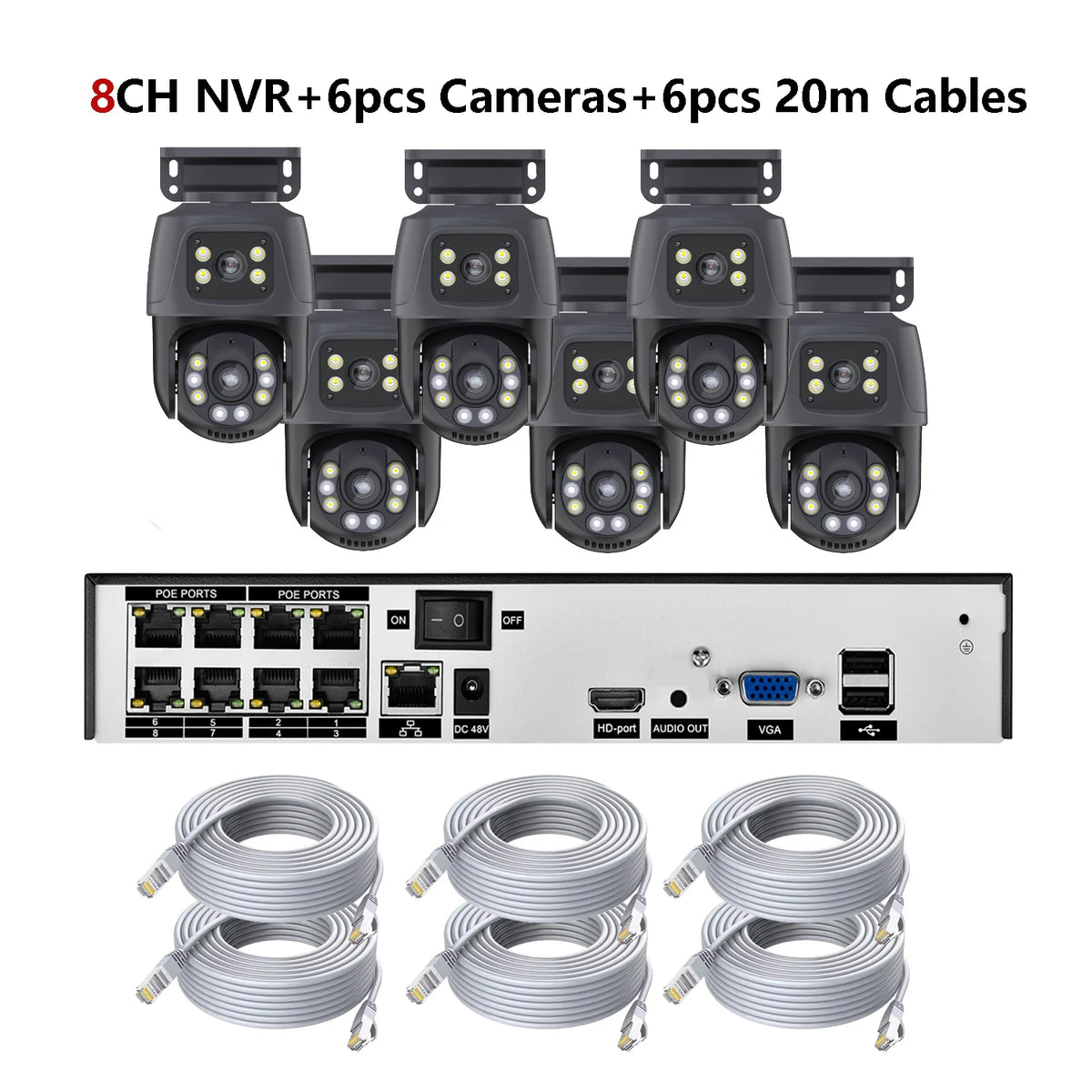

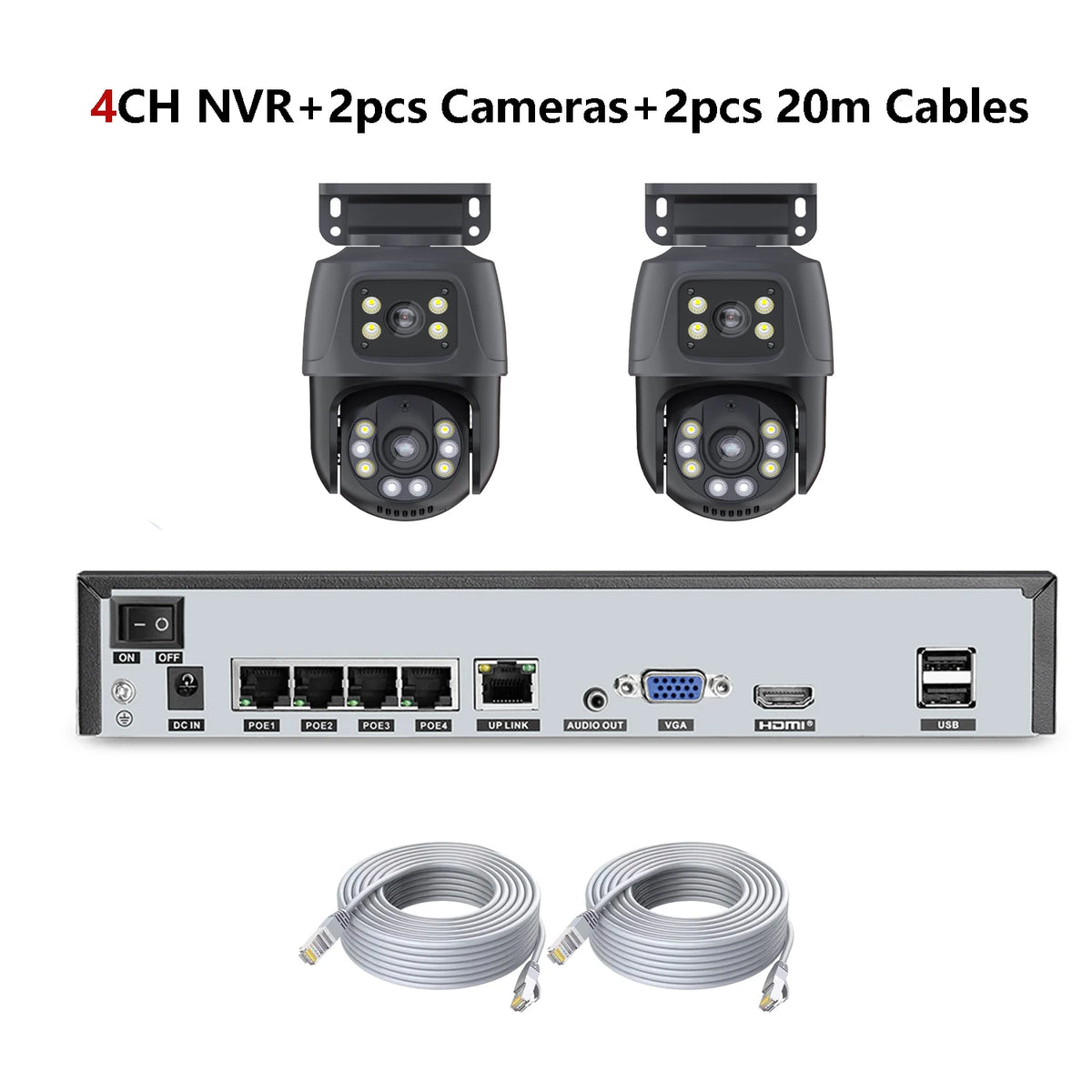

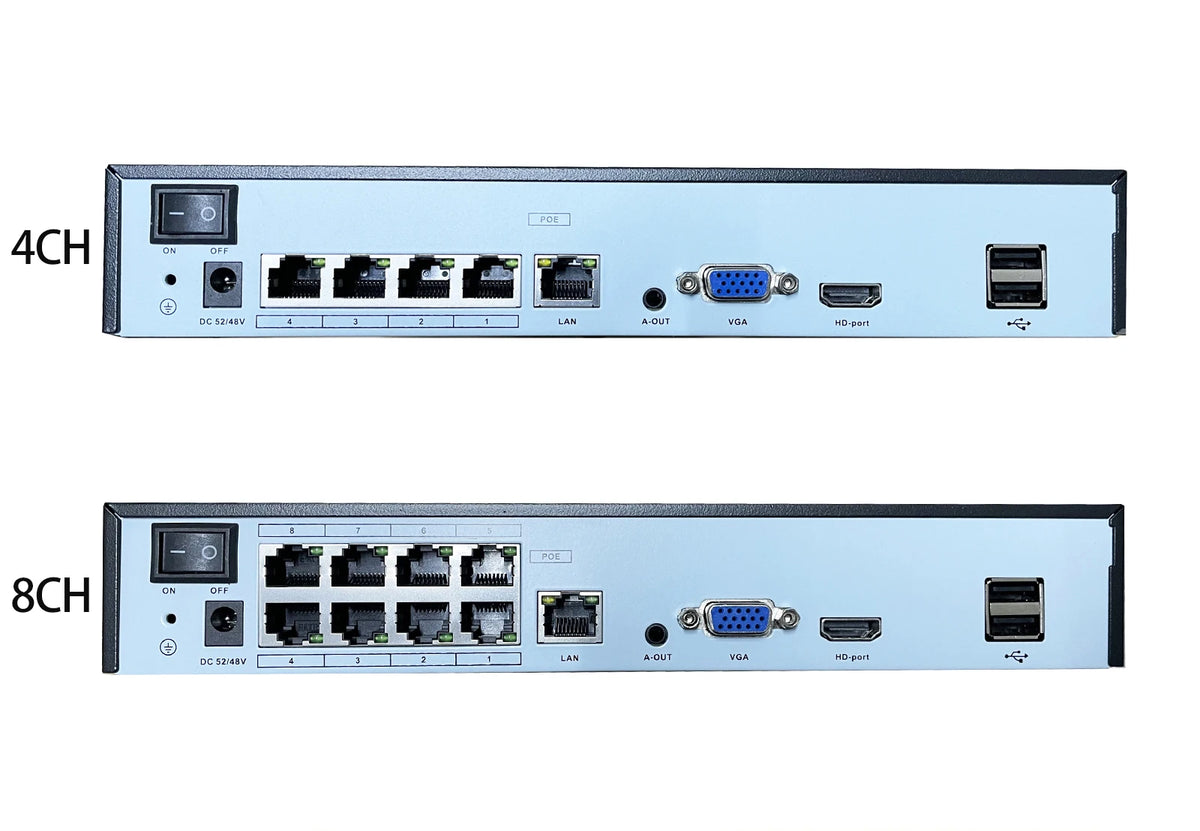

Choose from configurations with 2, 4, 6, or 8 cameras depending on the coverage your property requires. NVR options include 4-channel or 8-channel configurations depending on the selected package.

Camera Specifications

• Camera Resolution: 6MP (3MP + 3MP)

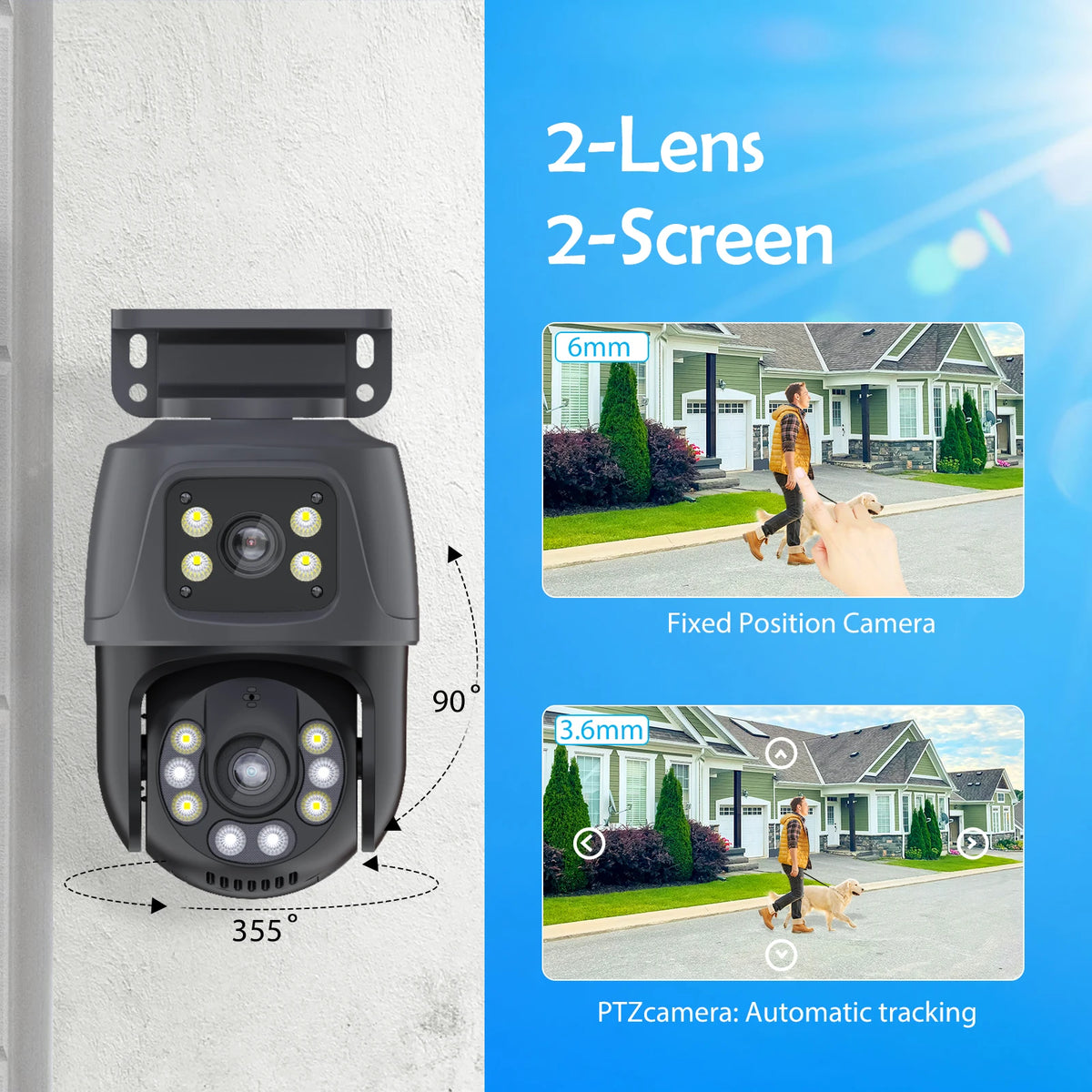

• Lens Configuration: 3.6mm + 6mm

• Camera Type: Dual-Lens PTZ PoE

• Audio: Two-Way Audio

• Detection: Human & Motion Detection

• Weather Protection: IP66

• Housing: ABS

• Video Compression: H.264 / H.265+

• Connection: PoE Ethernet

NVR Specifications

• Operating System: Embedded Linux

• Video Compression: H.264 / H.265+

• Video Outputs: HDMI + VGA

• Network Connection: RJ45

• Storage: 1 × 3.5" SATA HDD, up to 8TB

• Remote Viewing: iOS / Android / PC

• App: XMEye

• Playback: Supported

• ONVIF: Supported

• Power Supply: 48V

• Multi-Language Interface

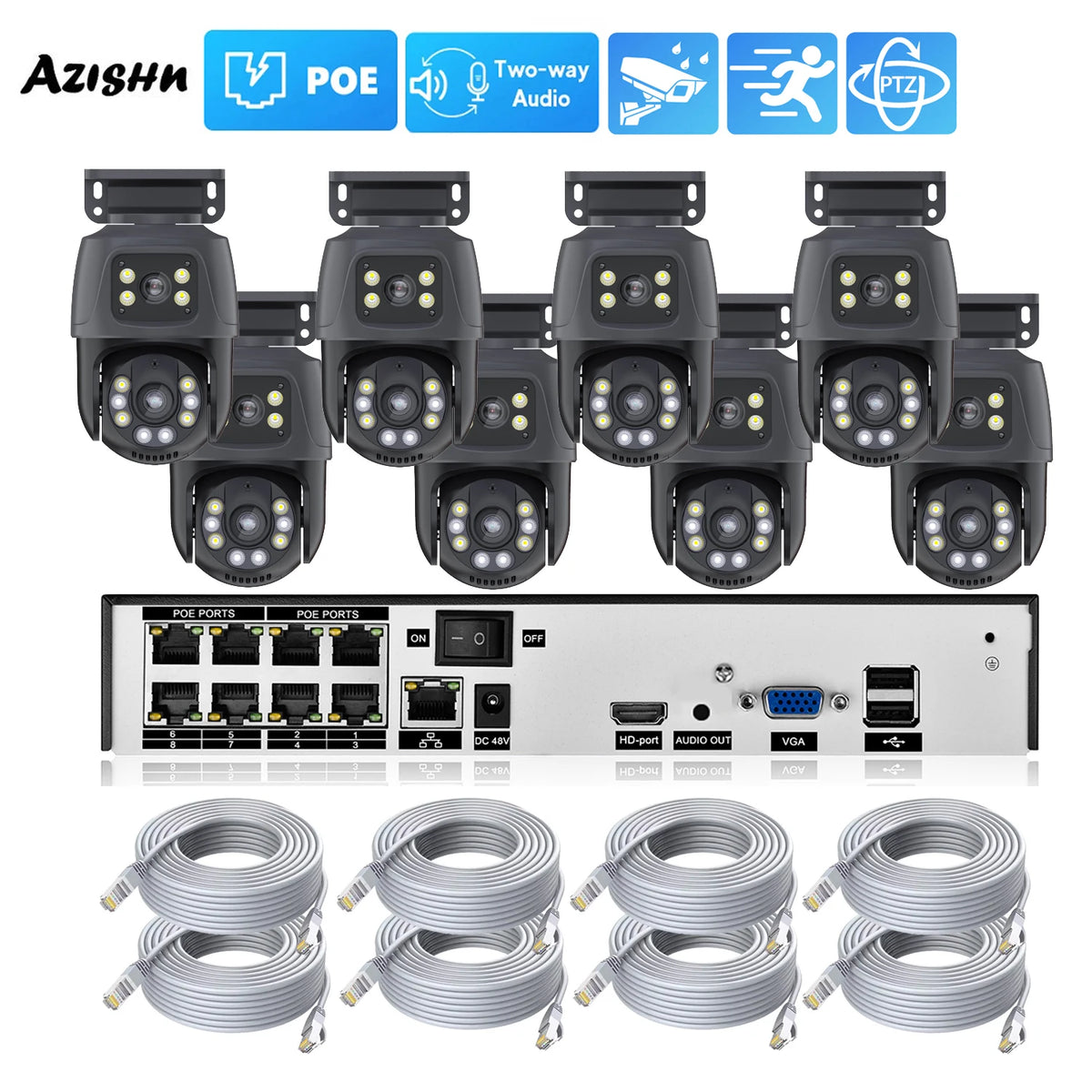

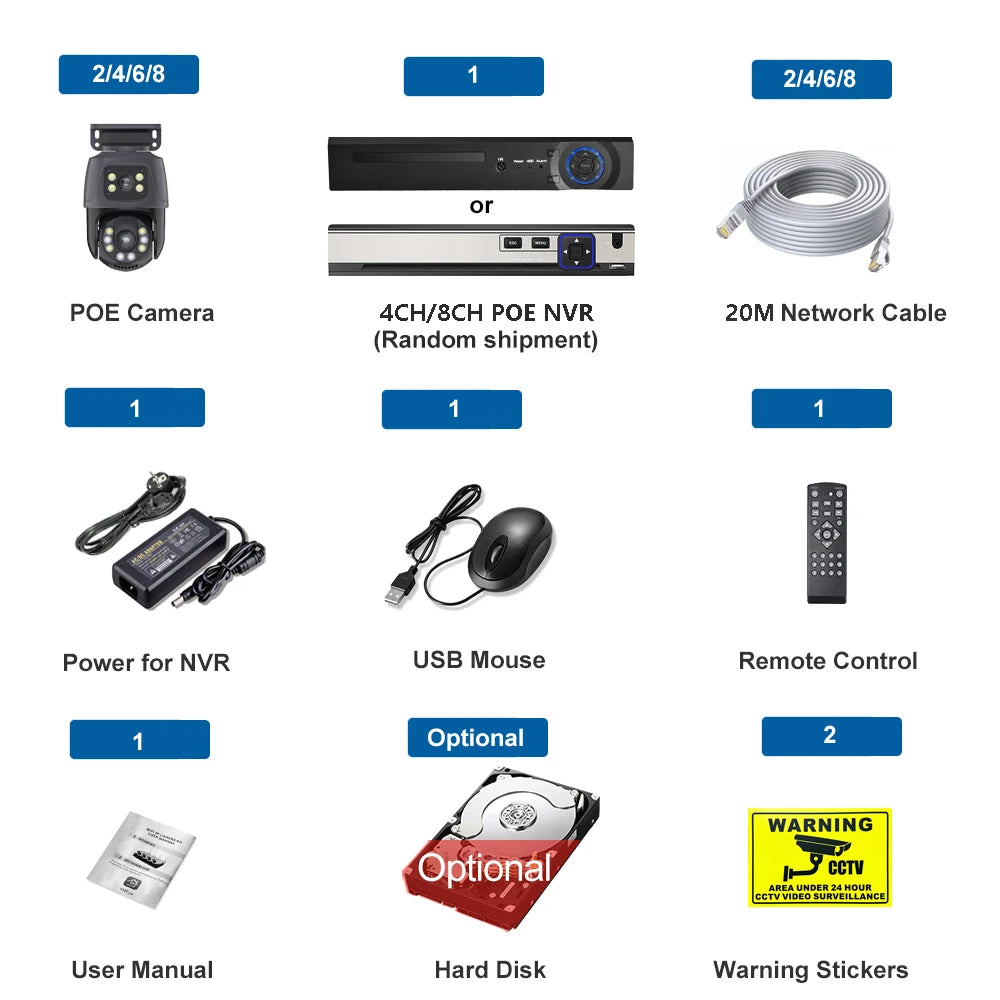

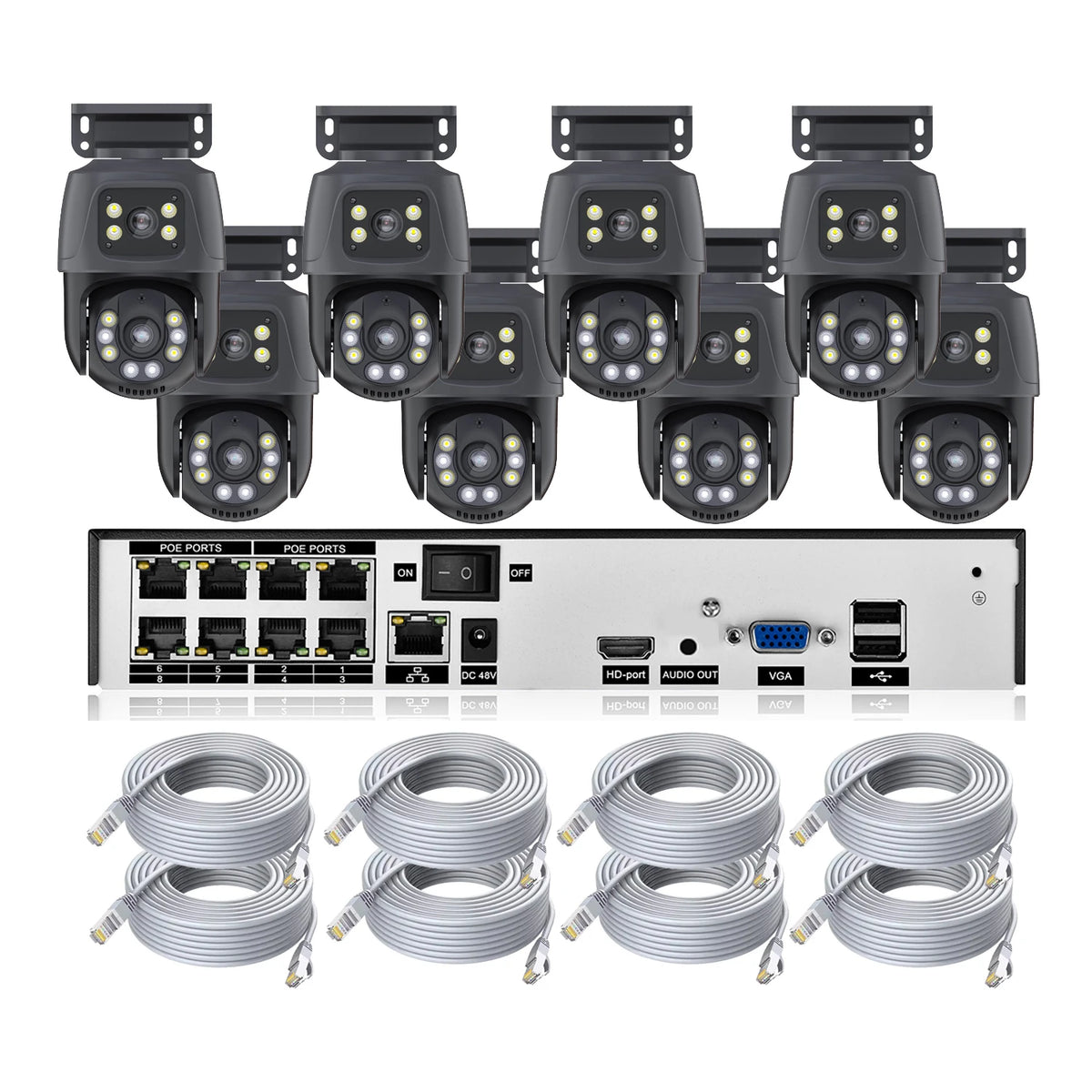

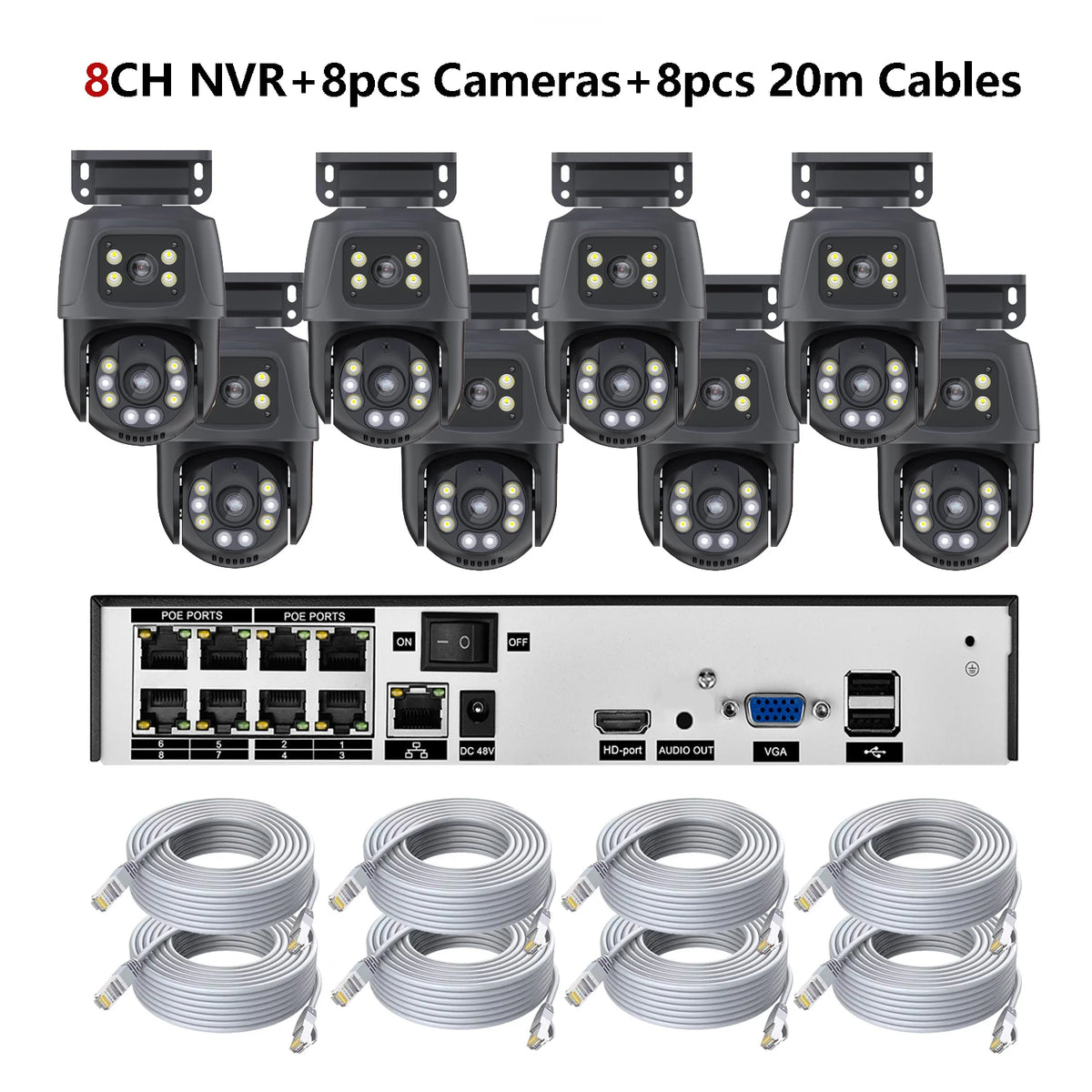

Package Includes

Depending on the selected configuration:

• 1 × PoE NVR

• 2 / 4 / 6 / 8 × 6MP Dual-Lens PoE Security Cameras

• 2 / 4 / 6 / 8 × 65.6 ft (20 m) Ethernet Cables

• 1 × NVR Power Cable

• 1 × Mouse

• 1 × Remote Control

• 1 × User Manual

Hard Drive: Available only with selected HDD package options. Please check your chosen configuration before ordering.

Please Note: Although the NVR supports certain AI functions such as face recognition, the included cameras in this kit do not support face recognition.































H.265+ Advantage

Reduces file size up to 70% with the same quality. save 70% or more bandwidth

Low bit rate: H.265 has a low bit rate similar to H.264. Extend far greater video quality experience compared to H.264

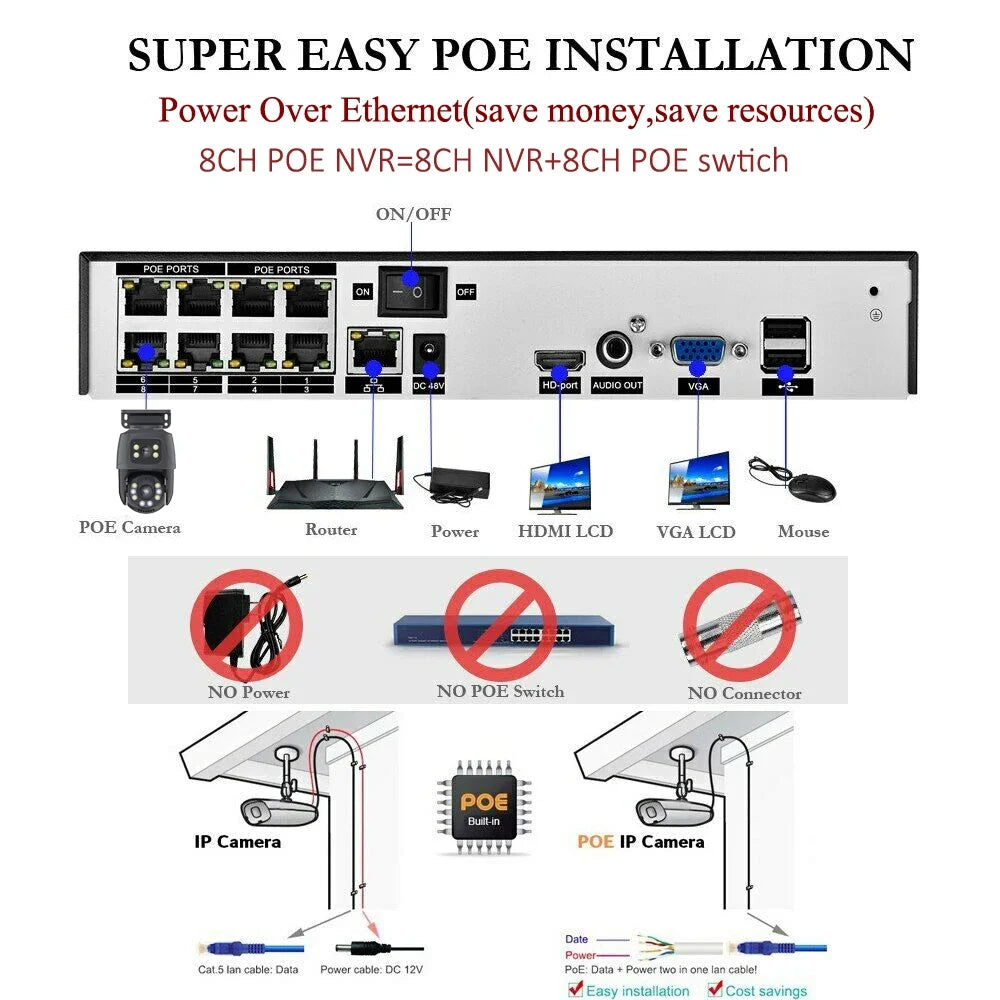

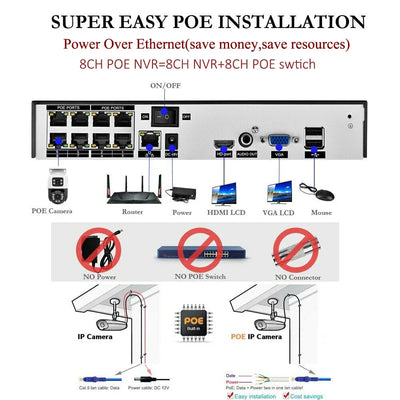

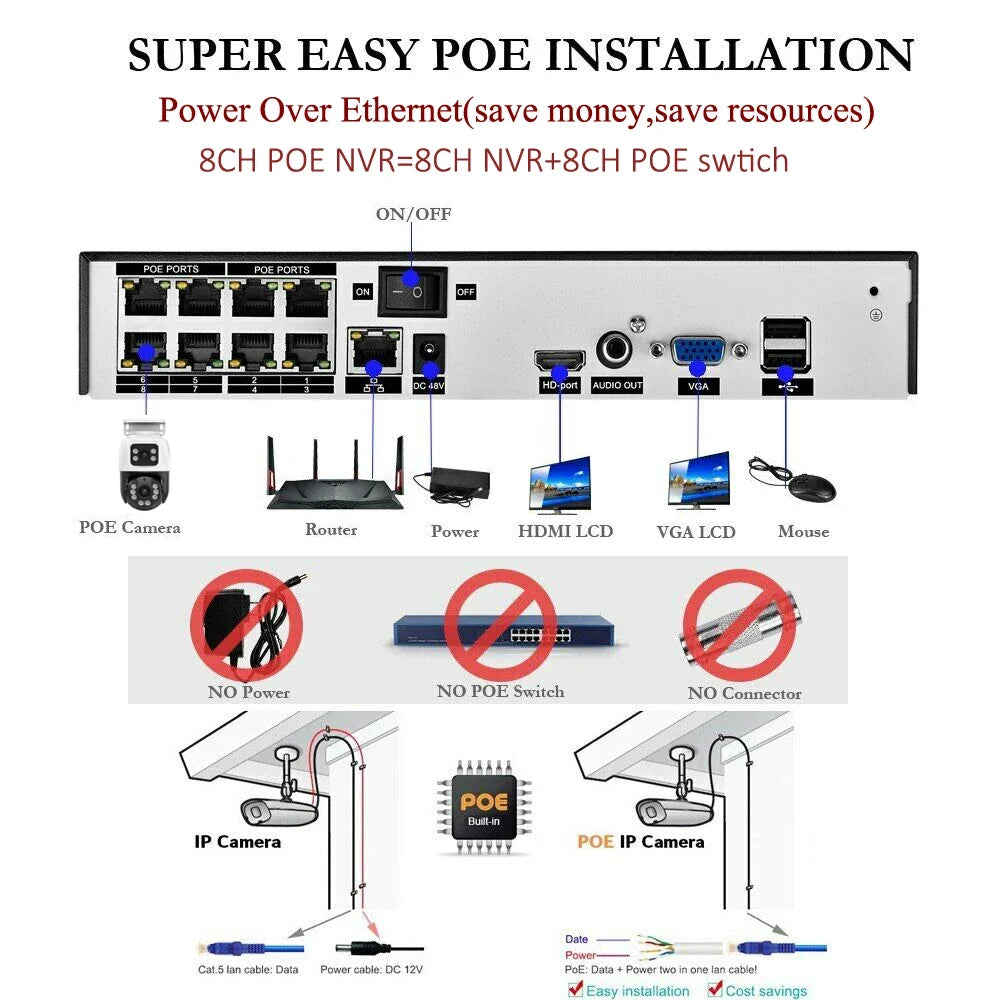

POE Advantage, Why Choose POE ?

Don't need extra power cables or adapters or switch.Plug And Play and easy setup.

Save Money and Convenient, POE NVR = NVR + POE Switch

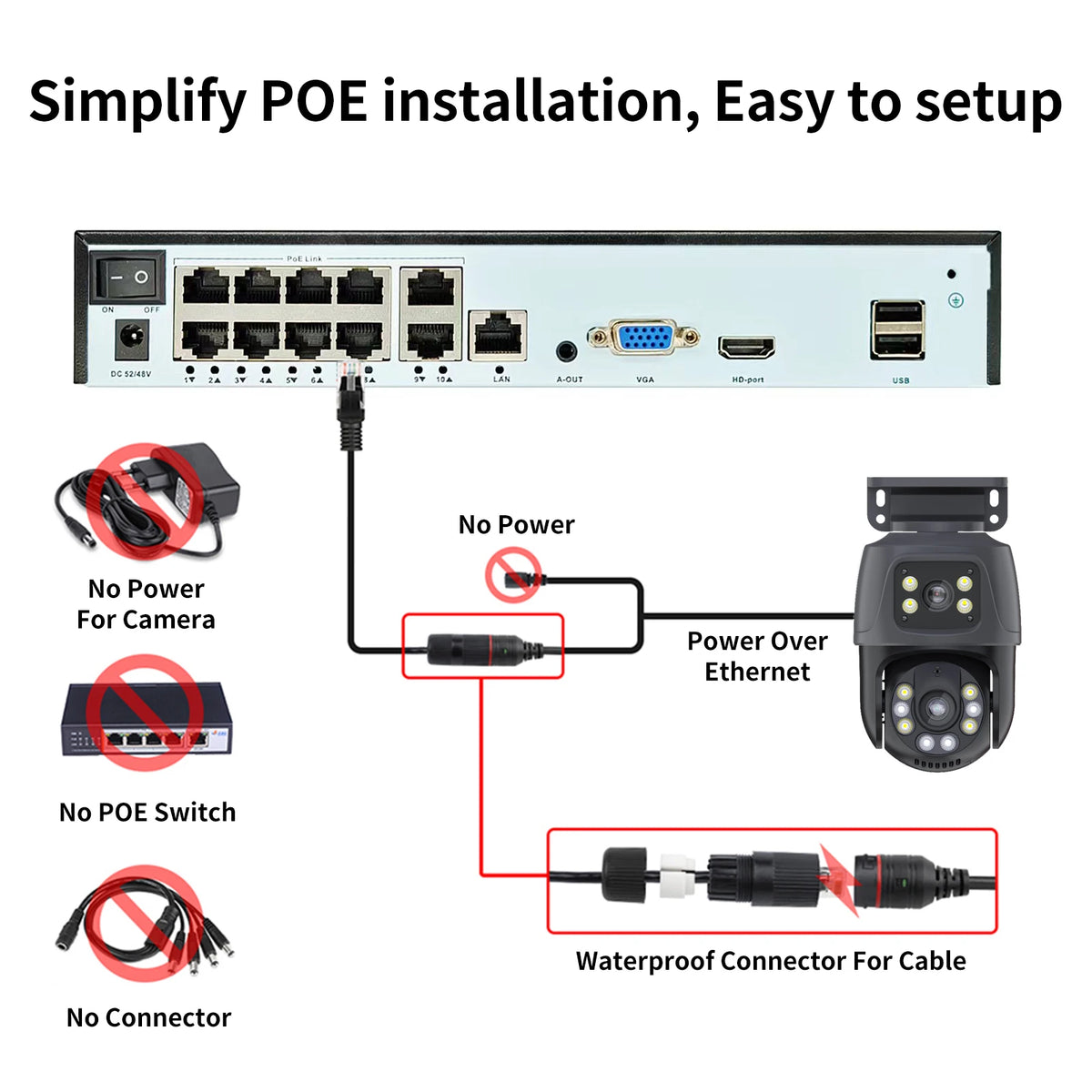

Simplify POE installation,Easy to setup



Power over Ethernet means the IP cameras connect to the NVR with a single cable that transmits both data and power, No need to connect power cable, lower risk of electric leakage and easy to set up. This literally simplified the installation and reduced costs.

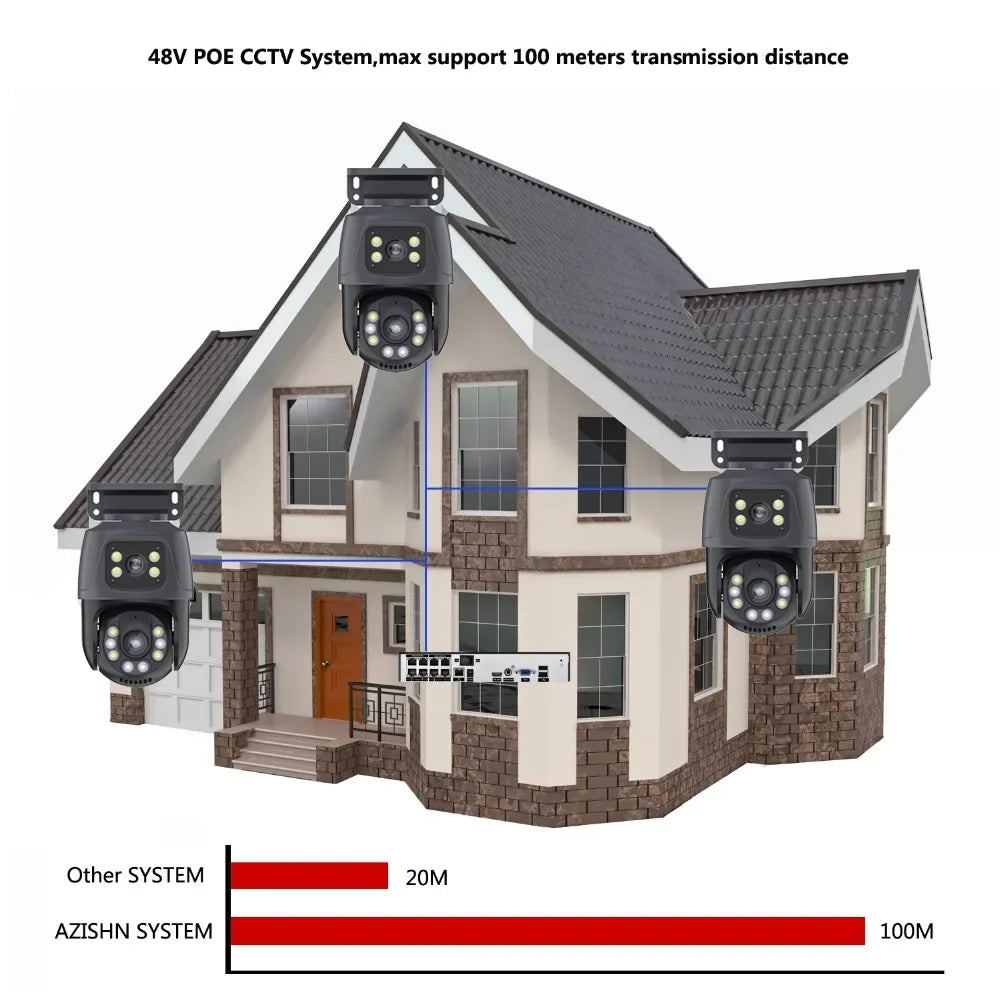

48V POE CCTV System,max support 100 meters transmission distance

Motion Detection & Alarm Alert

When detect motion,the camera can push alarm message to APP or send photo to your email.Then you can check the details timely

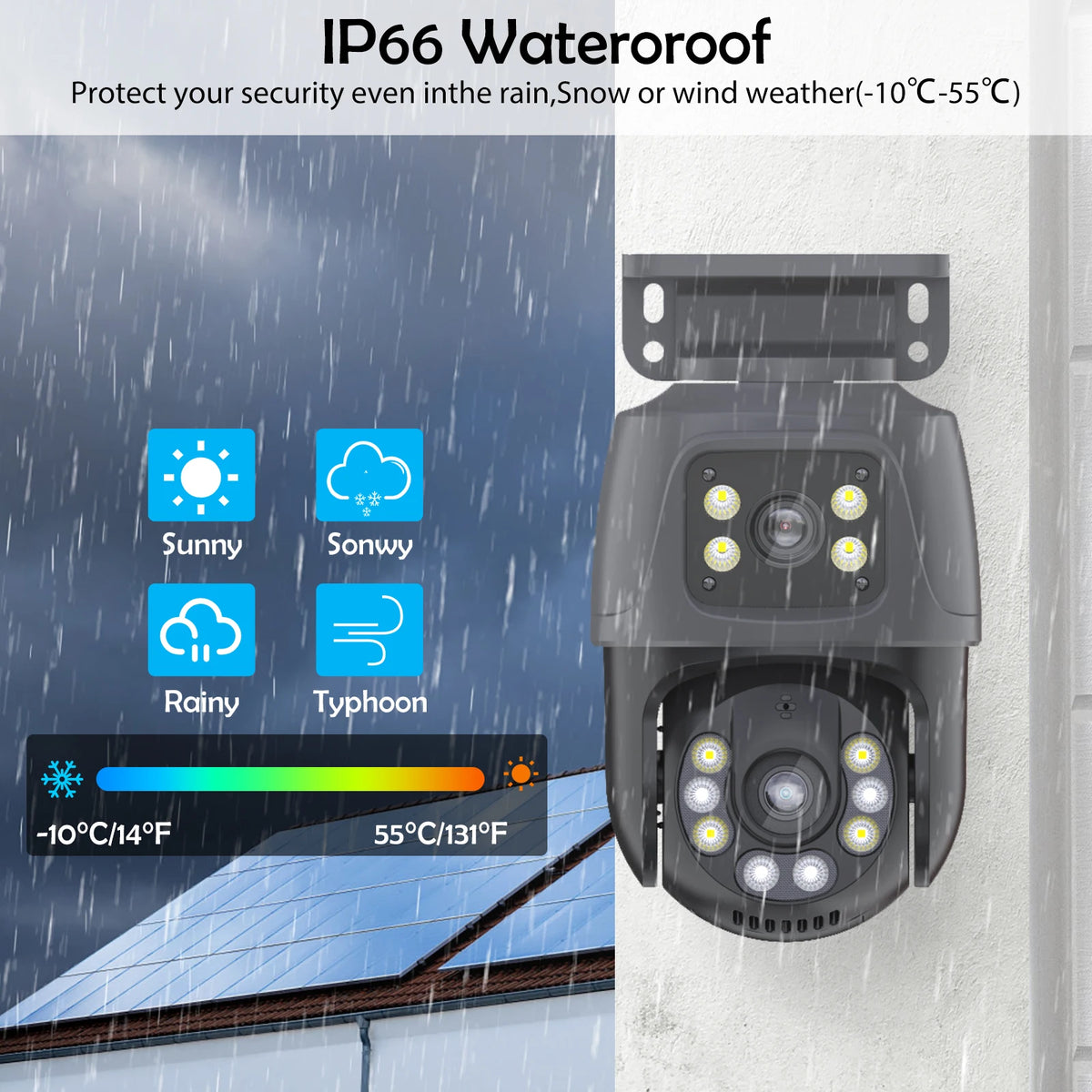

Waterproof metal case,widely used for indoor & outdoor

Camera Working Temperature:  -25°C ~ 50°C (-13 ° ~ 122 °)

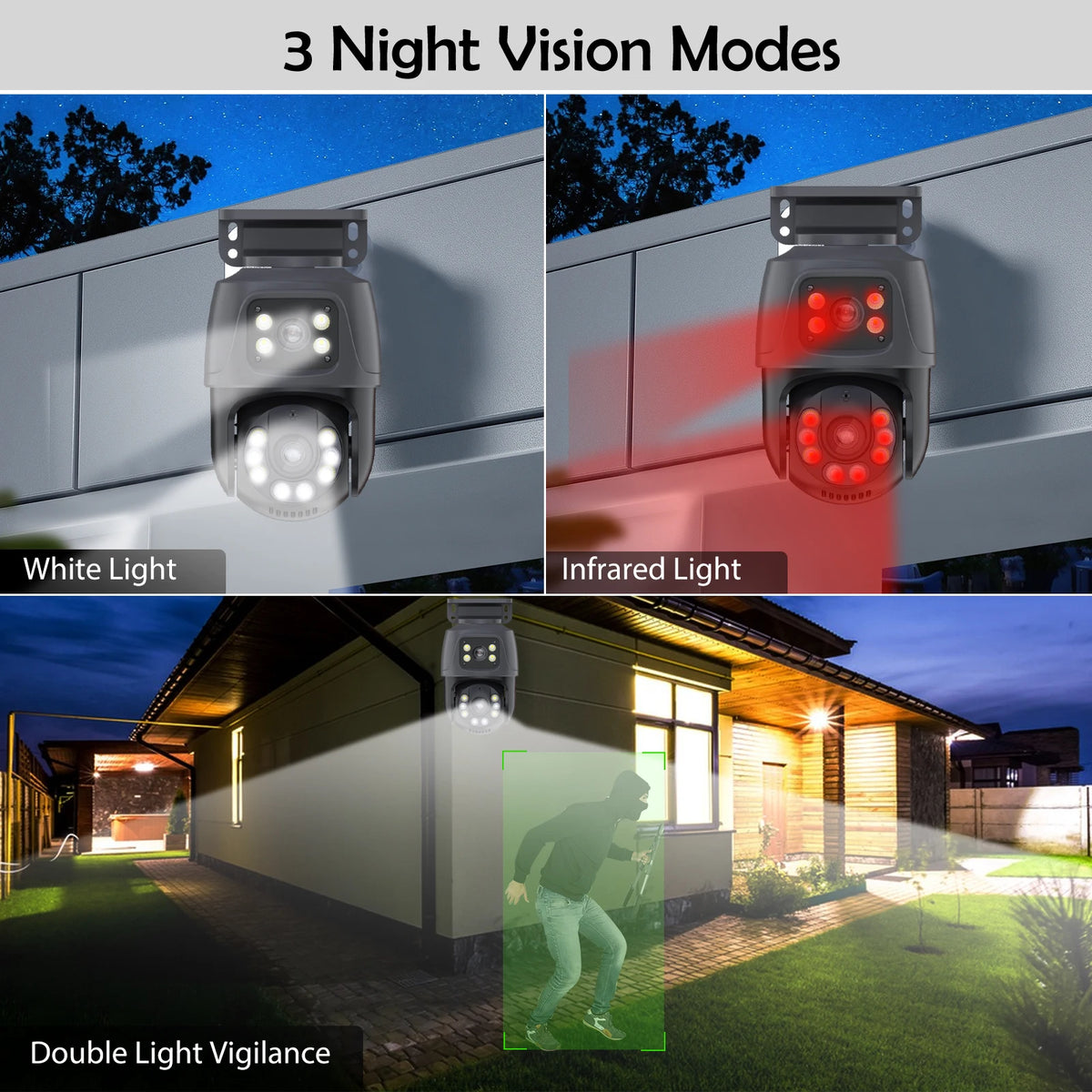

Smart IR-Cut Night Vision







Remote Access Anytime, Anywhere.Video With Smart Playback

Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer,

free smartphone App (Android & iPhone) for remotely view from anywhere.

Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos













Support ONVF 2.0

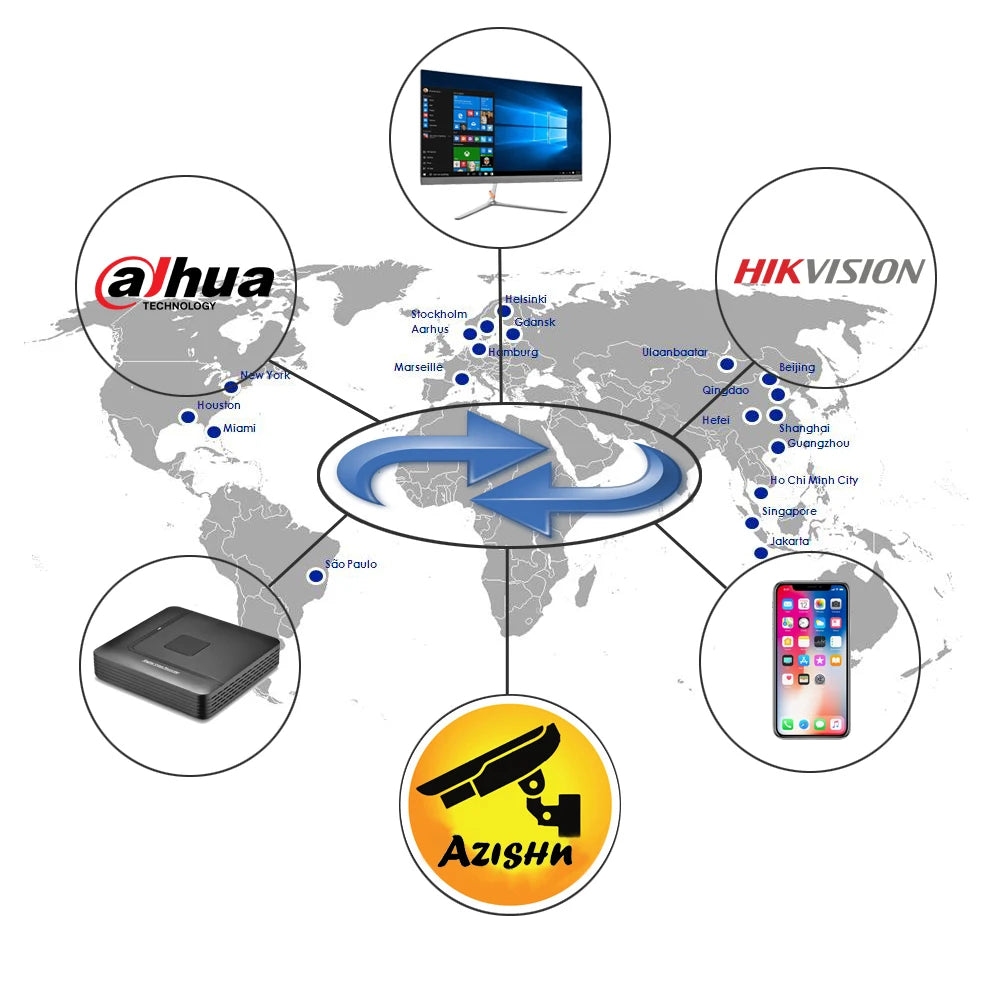

Works with third party ONVF NVR and software,such as ONVF device manager,blue iris ,VLC and so on











1,View via PC

Install the CMS(CMS for Windows,VMS for Mac) ( Software in the CD ,or can download online,need contact us )

You can select the language(18 languages)

How to watch via CMS:

How to find "Serial ID" (very important)





2,View via web:

Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)



3,View via Phone(iOS and Android):

Find "XMEye" in Apple APP or Android Market



Horizontal screen:
