12V Electric Motor Oil & Diesel Transfer Pump

📋 Specifications

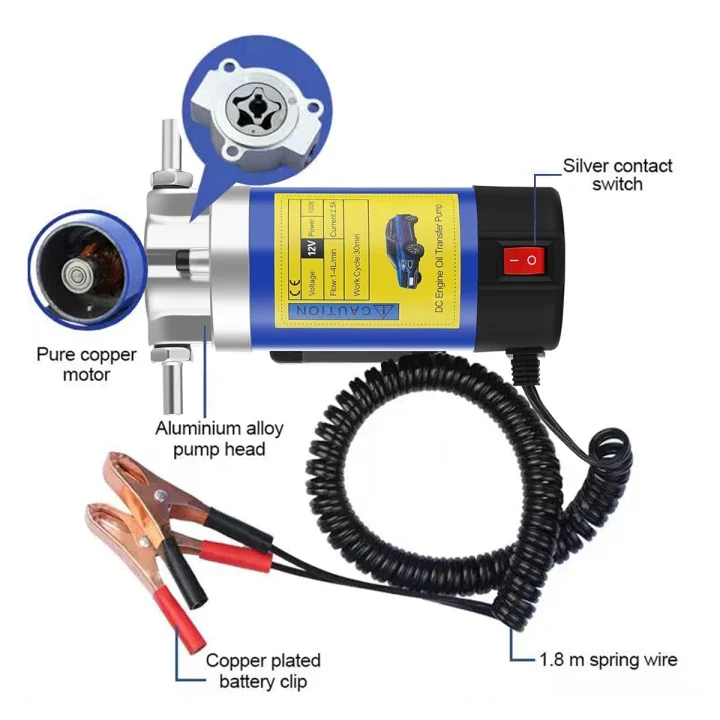

• Pump Type: Self-Priming Internal Gear Extraction Pump

• Primary Material: Heavy-Duty Iron & Metal Body

• Voltage: 12V DC

• Power Rating: 100W

• Flow Rate: 1 – 4 L/min (Varies by Fluid Viscosity)

• Current Draw: 2.5A (No-Load) | 5.0A (Under Load)

• Max Duty Cycle: 30 Minutes Continuous Operation

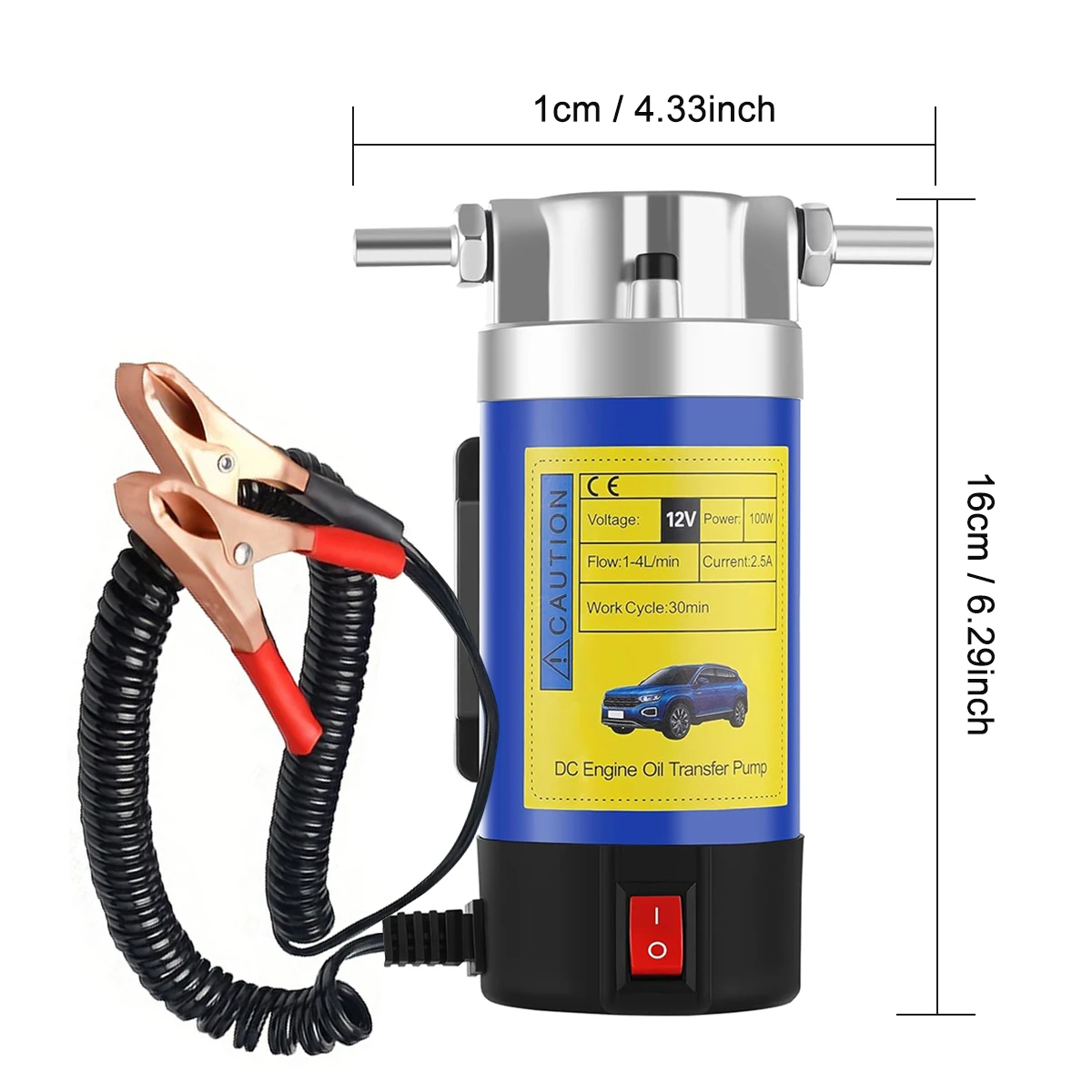

• Main Unit Dimensions: 16.0 cm × 6.2 cm (6.3" × 2.4")

• Unit Weight: 1.55 kg (3.42 lbs)

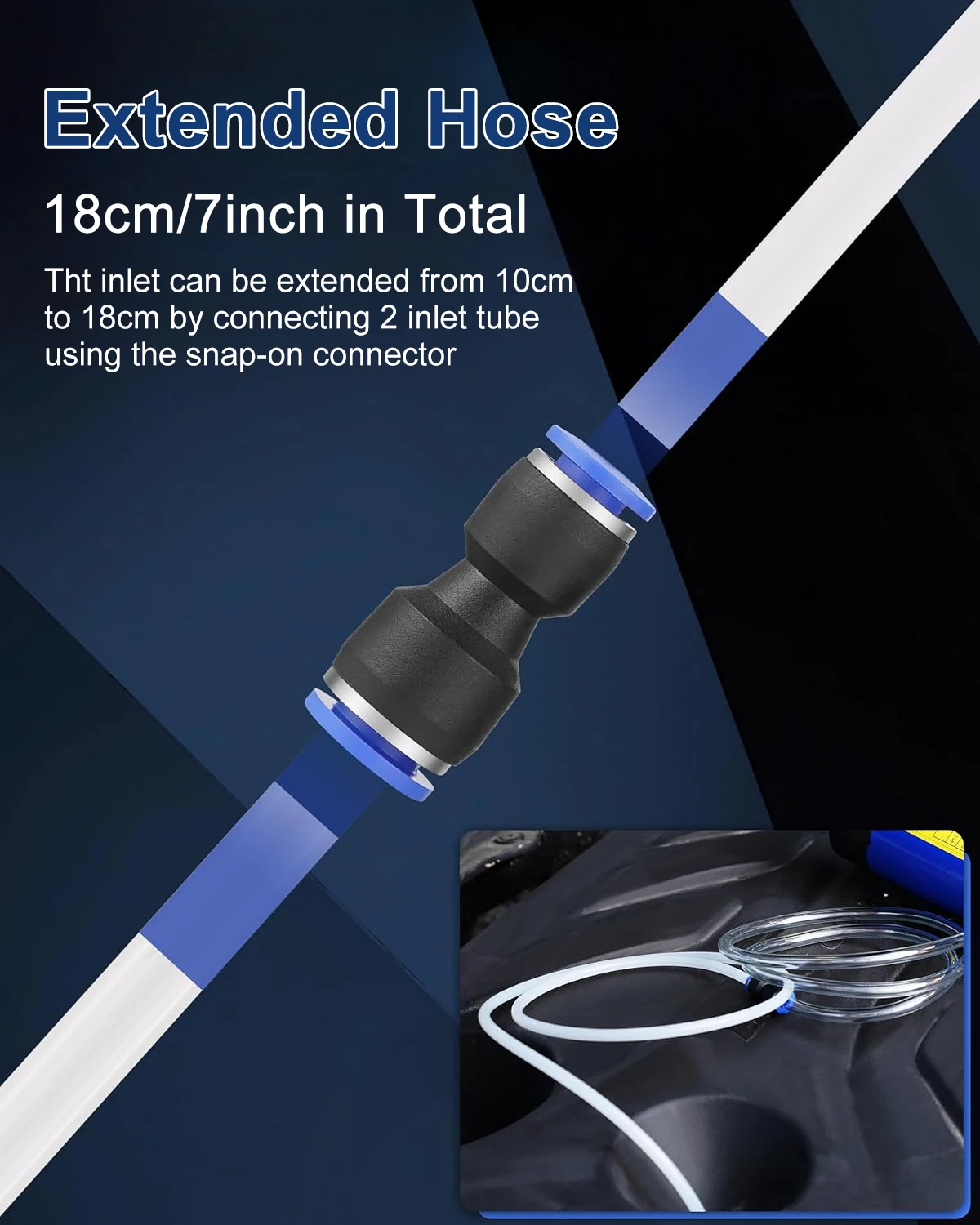

• Inlet Hoses: 1 × Copper Tube ($6 \text{ mm} \times 800 \text{ mm}$) | 1 × PU Tube ($8 \text{ mm} \times 1000 \text{ mm}$)

• Outlet Hose: 1 × PU Tube ($10 \text{ mm} \times 1000 \text{ mm}$)

• Power Connection: Heavy-Duty Battery Alligator Clamps

• High-Concerned Chemical: None

🔧 Key Features

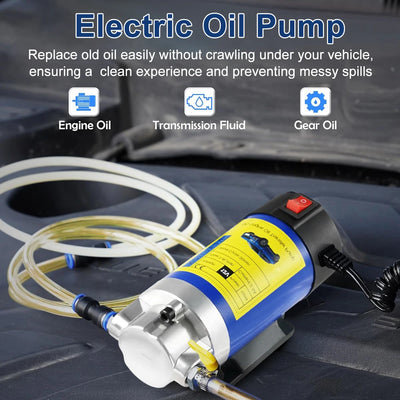

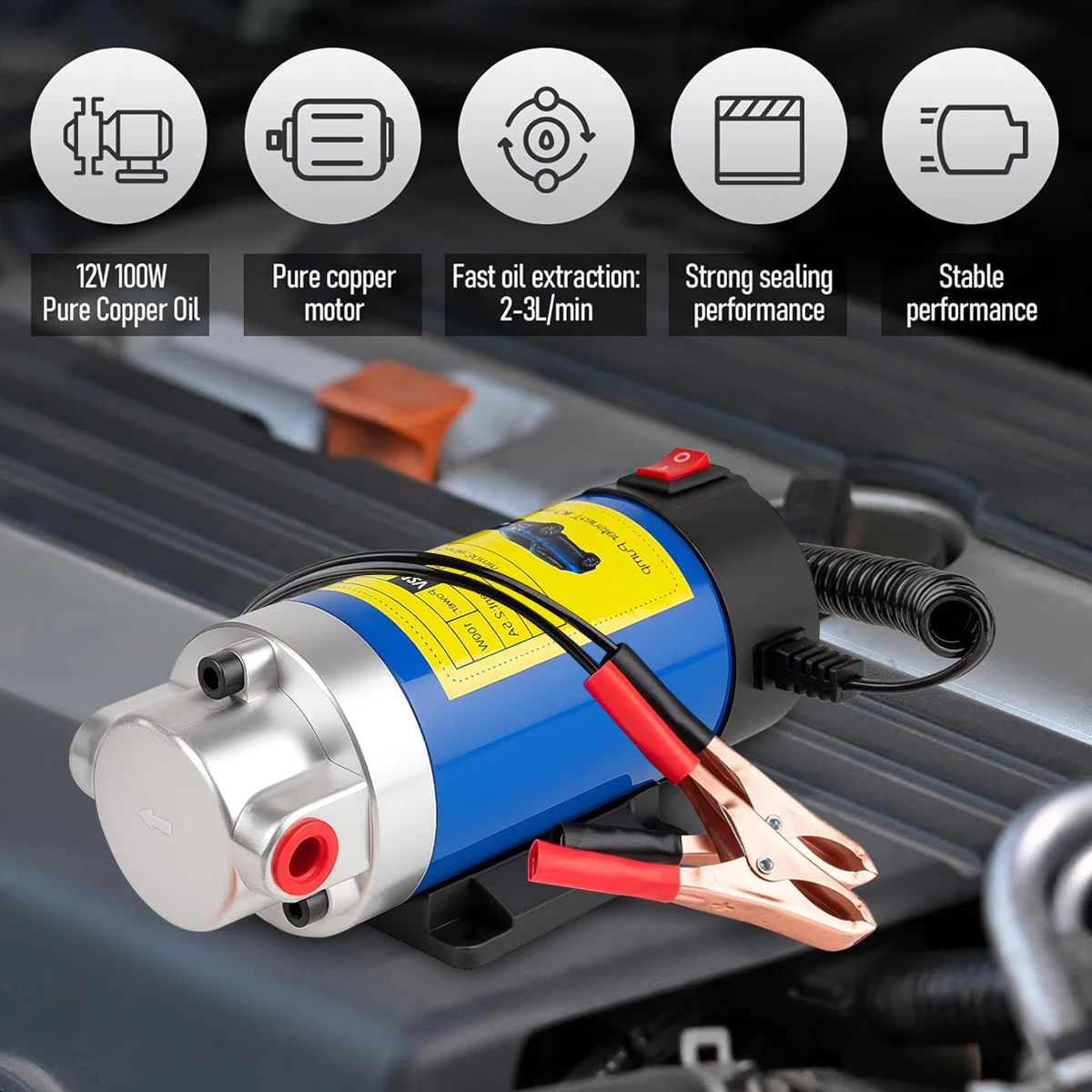

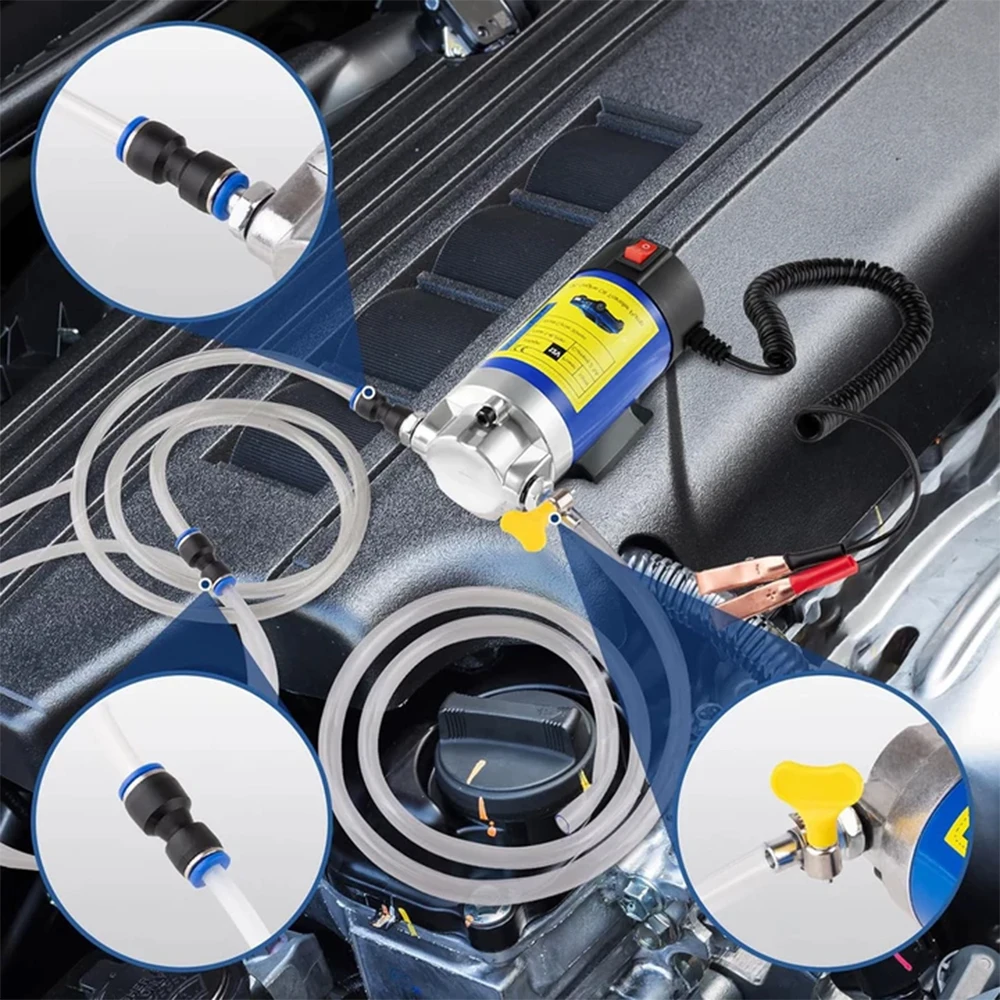

• Compact 100W Gear Extraction Mechanism: High-efficiency internal gear pump design quickly extracts motor oil and diesel fuel directly through the dipstick tube without mess.

• Direct 12V Battery Hookup: Color-coded battery alligator clips attach directly to a standard 12V vehicle battery for instant field or driveway operation.

• Transparent Extraction Tubing: Heavy-duty clear polyurethane and copper suction tubes allow clear visual monitoring of fluid flow and fluid condition during oil changes.

• Single-Person Portable Operation: Lightweight, self-contained unit allows clean, tool-free oil changes to be performed independently without crawling under the vehicle or dropping oil pans.

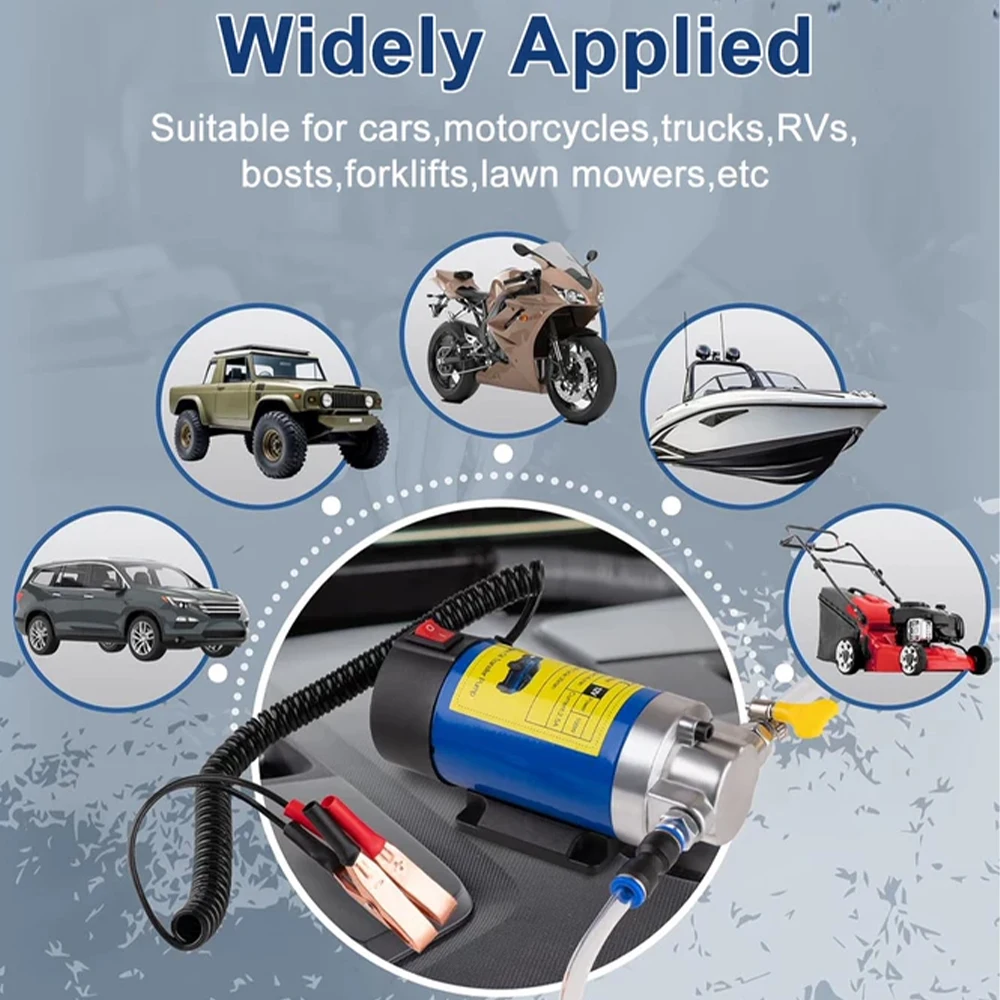

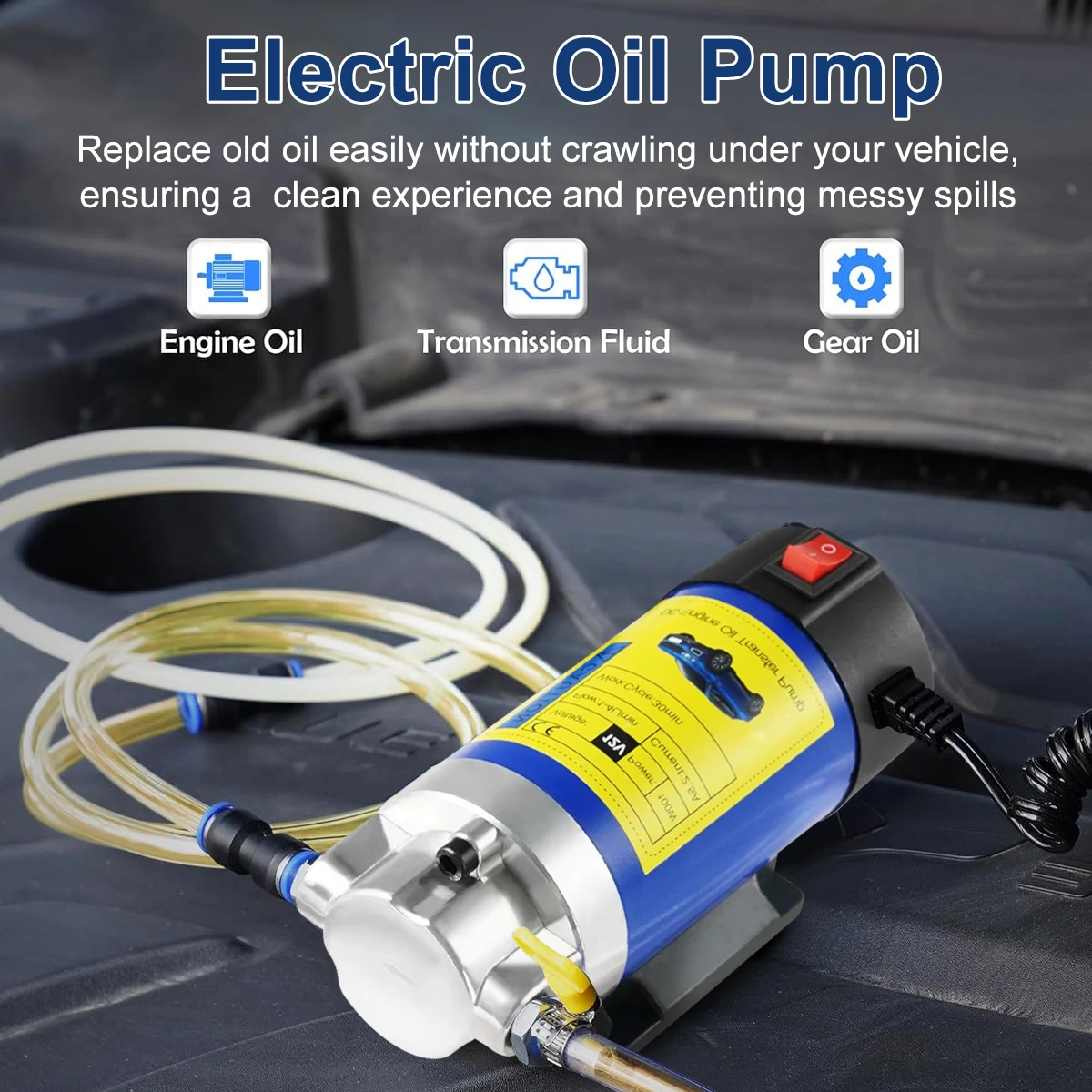

• Versatile Fluid Compatibility: Designed for fluid transfers across automobiles, motorcycles, marine boats, riding mowers, and small power equipment.

🏠 Ideal Applications

• Clean Motor Oil Extraction via Dipstick Tubes on Cars, SUVs, Boats, & Motorcycles

• Draining & Transferring Diesel Fuel, Heating Oil, & Low-Viscosity Fluid Reservoirs

• Routine DIY Small-Engine Maintenance on Lawn Tractors & Generators

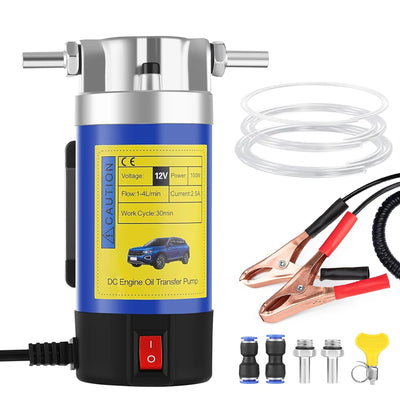

📦 Package Includes

• 1 × 12V 100W Electric Oil Transfer Pump Main Unit

• 1 × Copper Inlet Tube ($6 \times 800 \text{ mm}$)

• 1 × PU Suction Inlet Tube ($8 \times 1000 \text{ mm}$)

• 1 × PU Discharge Outlet Tube ($10 \times 1000 \text{ mm}$)

• 2 × Heavy-Duty Battery Clamps with Power Cable

• 2 × Hose Securing Clamps

⚠️ Important Safety & Usage Notes

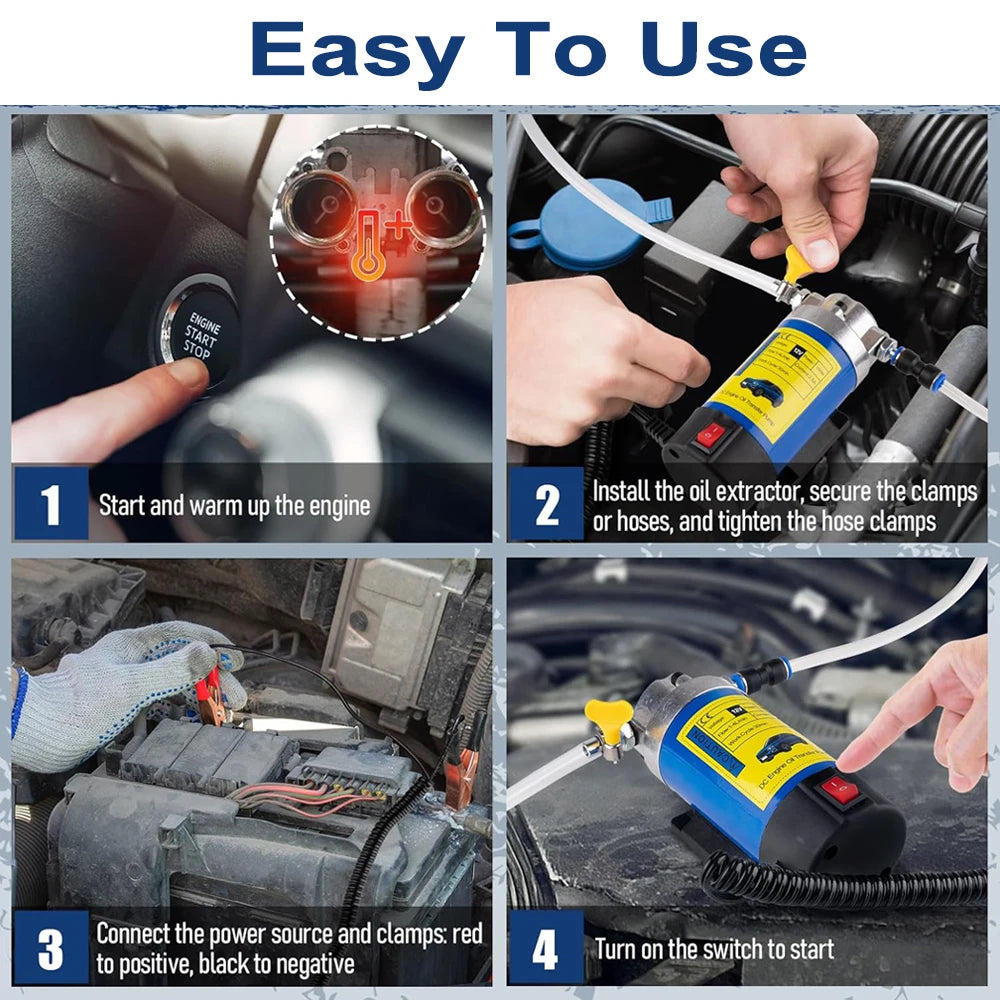

1. Electrical & Water Safety: Never operate the pump with wet hands, barefoot, or while standing in standing water; ensure the 12V vehicle battery is fully charged to maintain proper pump suction and flow rate.

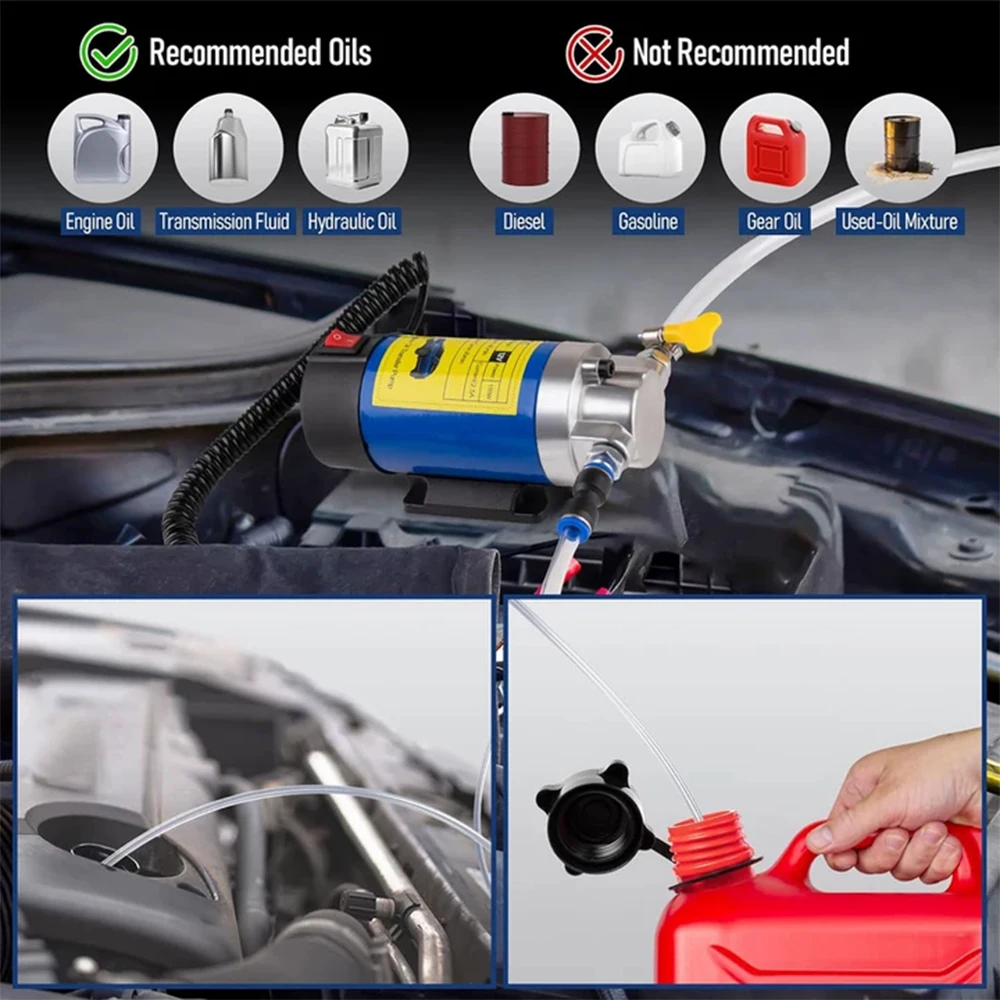

2. Prohibited Fluids: Strictly prohibited for use with gasoline, alcohol, paraffin, water, or highly flammable/volatile liquids to prevent motor damage or fire hazards. Warm the vehicle engine slightly before extraction to lower oil viscosity for optimal performance.
